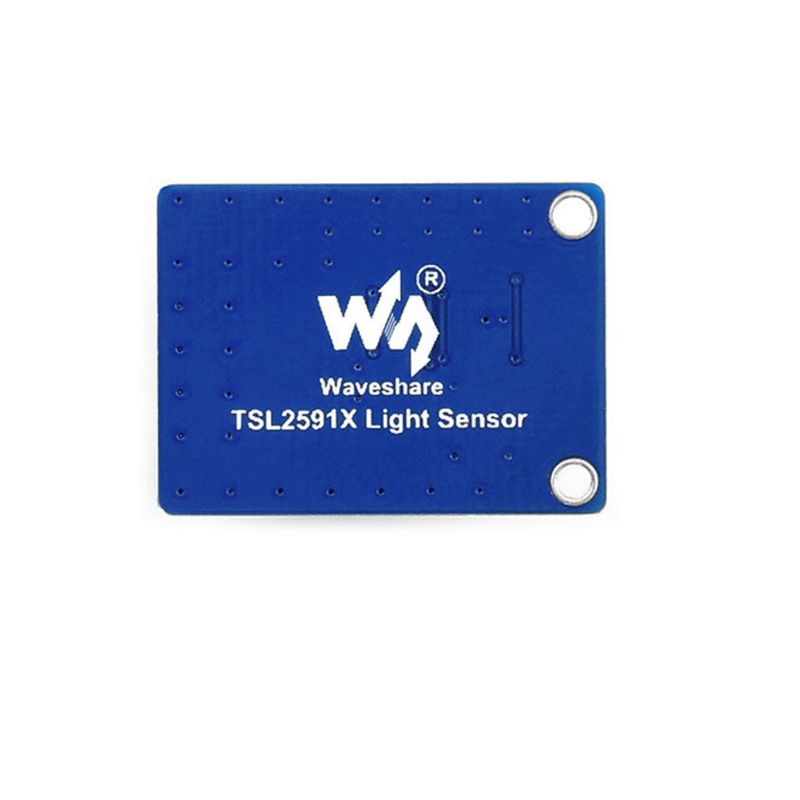

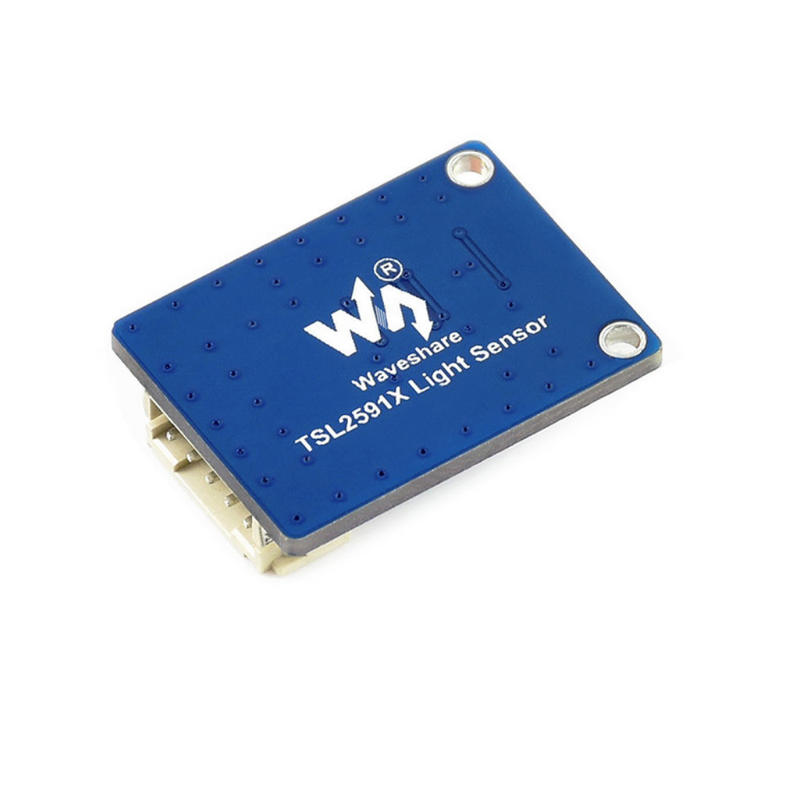

TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V Sensor for Raspberry Pi

TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V Sensor for Raspberry Pi

Name: TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V Sensor for Raspberry Pi
Brand: Banggood
SKU: U2I-BG-1587135
Price: 2,106.00 INR
Availability: InStock

SKU: U2I-BG-1587135

Share this product

Features:

Work with TSL25911FN,Compatible with Infrared Ray and Human Visible Light (Better than TSL2561)
Built-in ADC, Directly Output through I2C Interface, Great Anti-interference Performance
Level of Sensitivity up to 188uLux 600M:1 Wide Dynamic Range
Built-in Infrared Photodiode and Bandwidth Photodiode.Accurate Measuring Performance
With Interrupt Output,Upper and Lower Threshold Could Be Programmed
Electric Level Switch Circult Included

Specifications:

Sensor: TSL25911FN
Communication Interface: I2C (Address:0x29)
Range:0-88000Lux
Working Voltage:3.3V/5V
Size: 27x20mm
Fixing Hole Diameter:2mm

For more info please click: http://www.waveshare.net/wiki/TSL25911_Light_Sensor

https://github.com/waveshare/TSL2591X-Light-Sensor

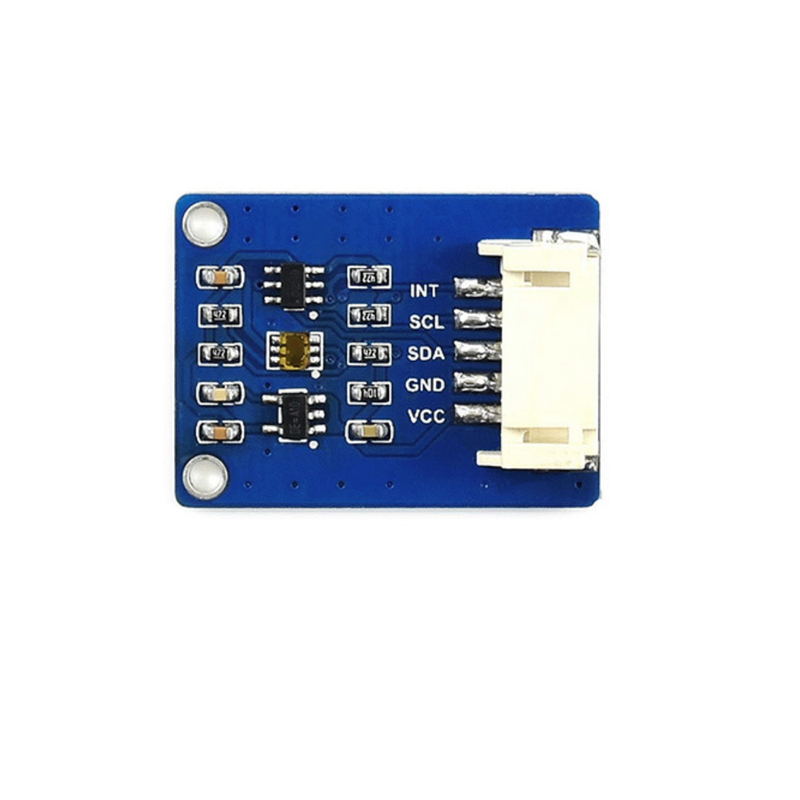

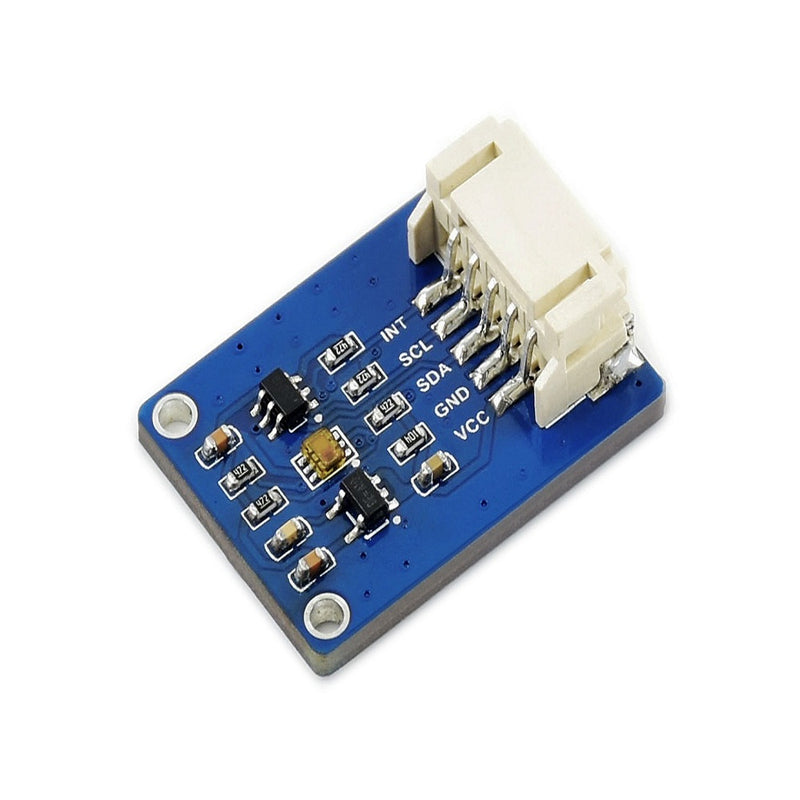

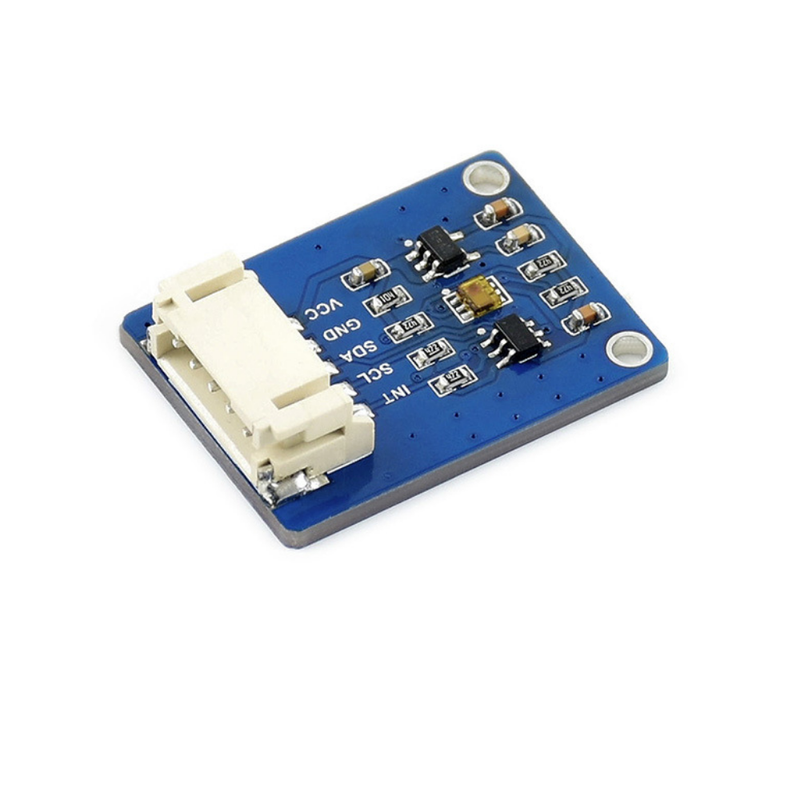

Connection:

VCC: 3.3V/5V
GND:GND
SDA: MCU I2C cable
SCL: MCU I2C Clock
INT: Interrupt (if need)

Package Included:

TSL2951X Light Sensor x1

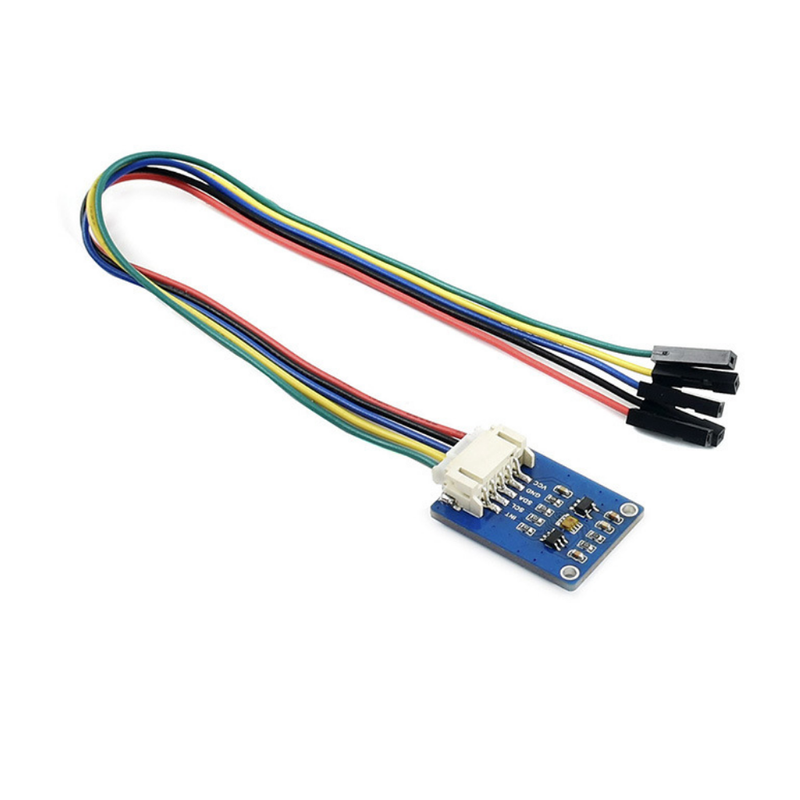

PH2.0 5PIN Cable x1
