TTA1943 TTC5200 Transistors Class AB Stereo Amplifier DIY Kit Max Power 80W Per Channel

TTA1943 TTC5200 Transistors Class AB Stereo Amplifier DIY Kit Max Power 80W Per Channel

Name: TTA1943 TTC5200 Transistors Class AB Stereo Amplifier DIY Kit Max Power 80W Per Channel
Brand: Banggood
SKU: U2I-BG-1626595
Price: 6,294.00 INR
Availability: InStock

SKU: U2I-BG-1626595

Share this product

Description:

lt is a classical class AB amplifier, use TTA1943 TTC5200 transistors, (Upgrade more than 2SA1943 2SC5200). The TTA1943 TTC5200 transislor, work well and good sound.
Operating voltage: Dual AC12V-28V >5A best
Power Out: about 80W per channel
Load: 3-10 inches 4-8Ohm Speakers

Note:

1. The greater power, the greater heal, is normal;

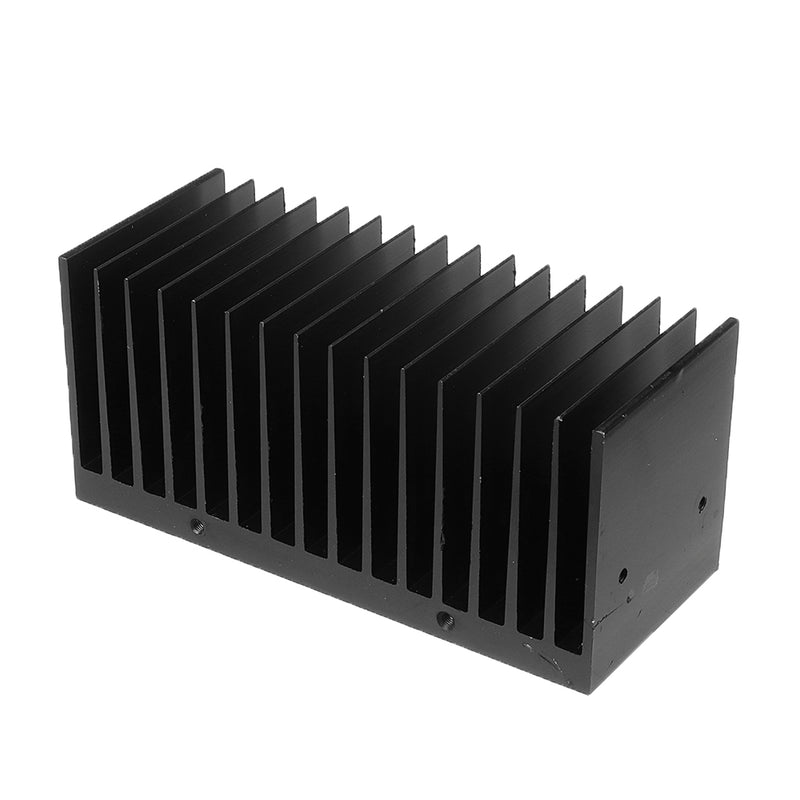

2. If want adjust quiest current, you must fix the heat sink to cover or a fan.when temperature test ok to assemble in cover.

ASSEMBLE TIPS:

1. Must chock all element, not be wrong location, opposite direction, not be joined of all back Sn points;

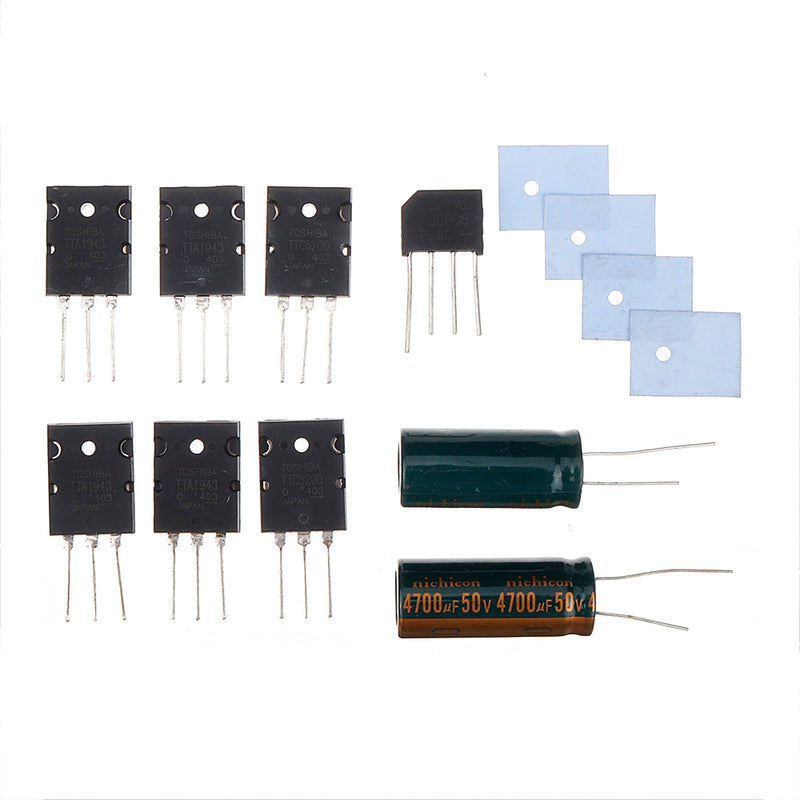

2. Four power transistors must assemble insulating strip and must
check them use multimeter;
3. Power on, use multimeter test DC voltage of two spoaker output, not more than 50mV;
4. Connect speakers and sound source, check the temperature;
5. All 0k, can fix it in cover.

Package included:

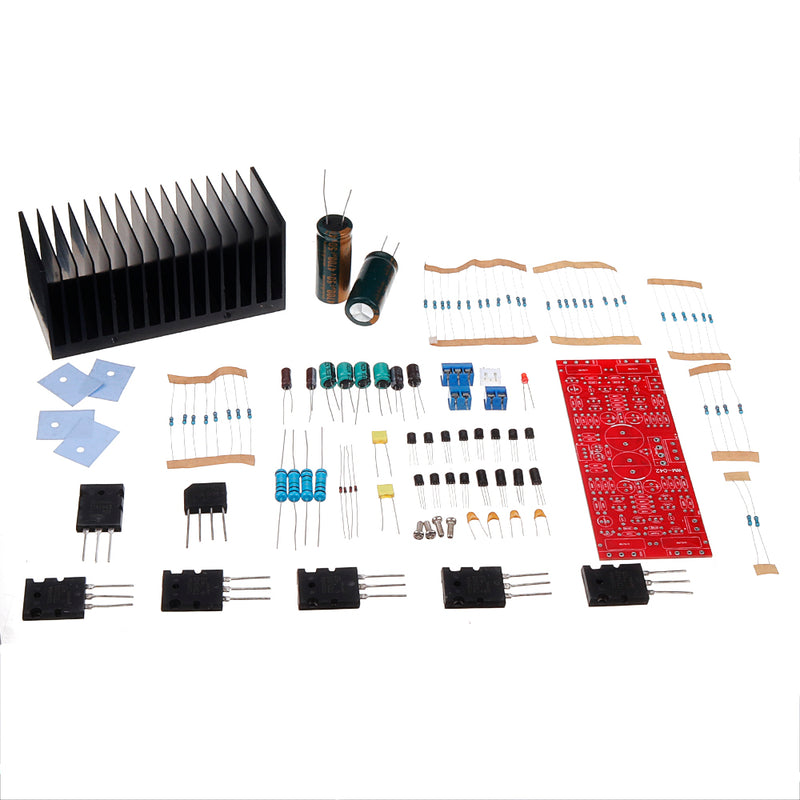

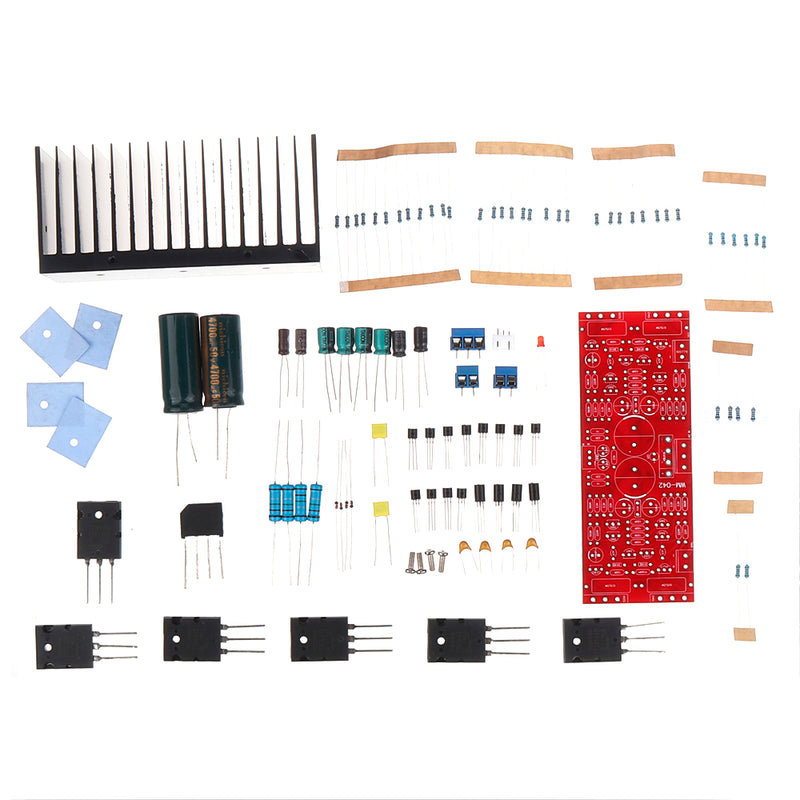

1 x TTC5200 Transistors Class AB Stereo Amplifier DIY Kit
