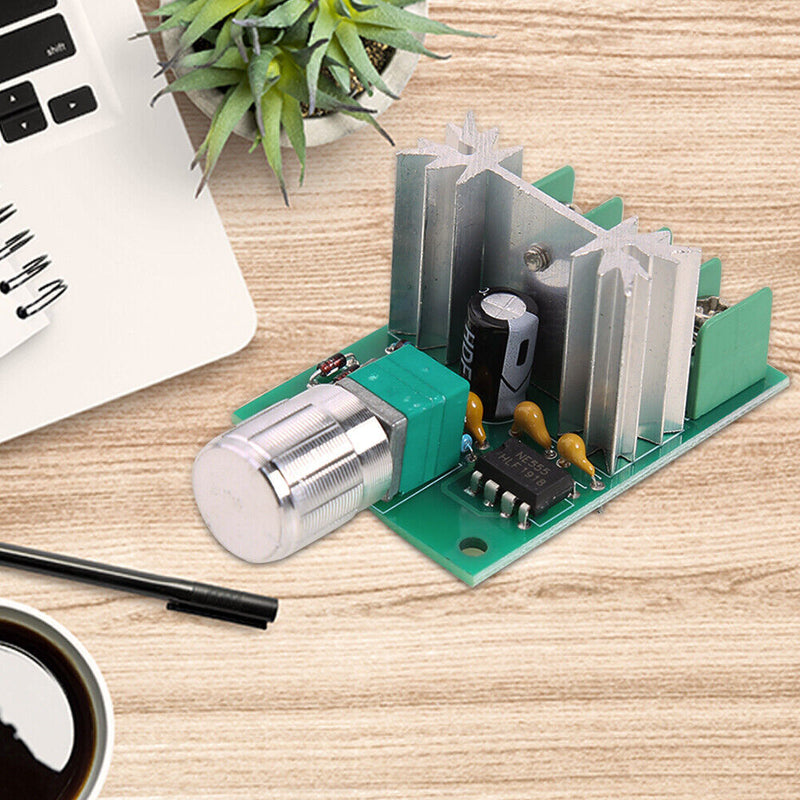

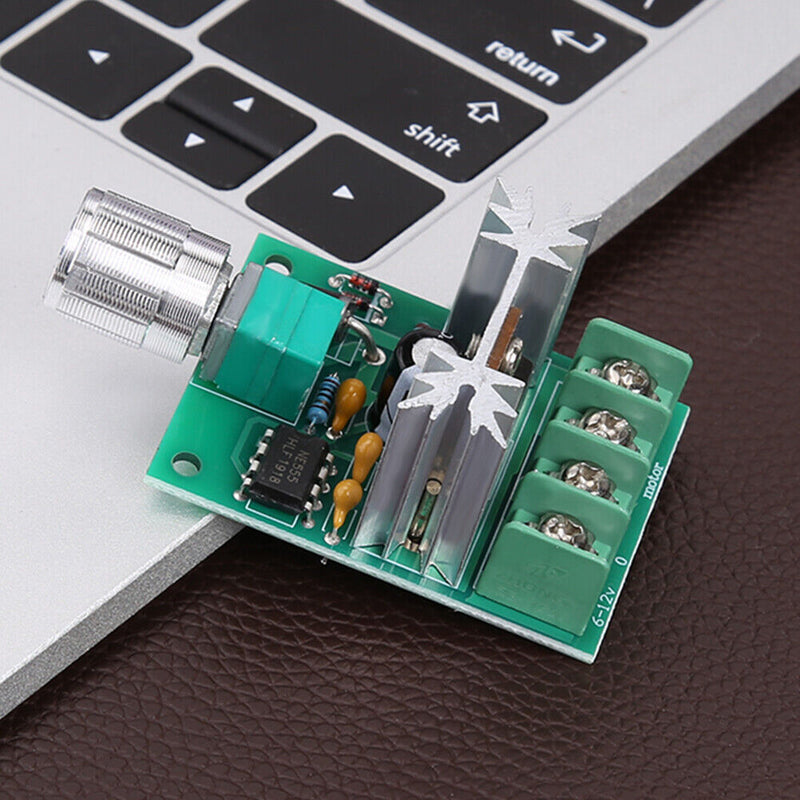

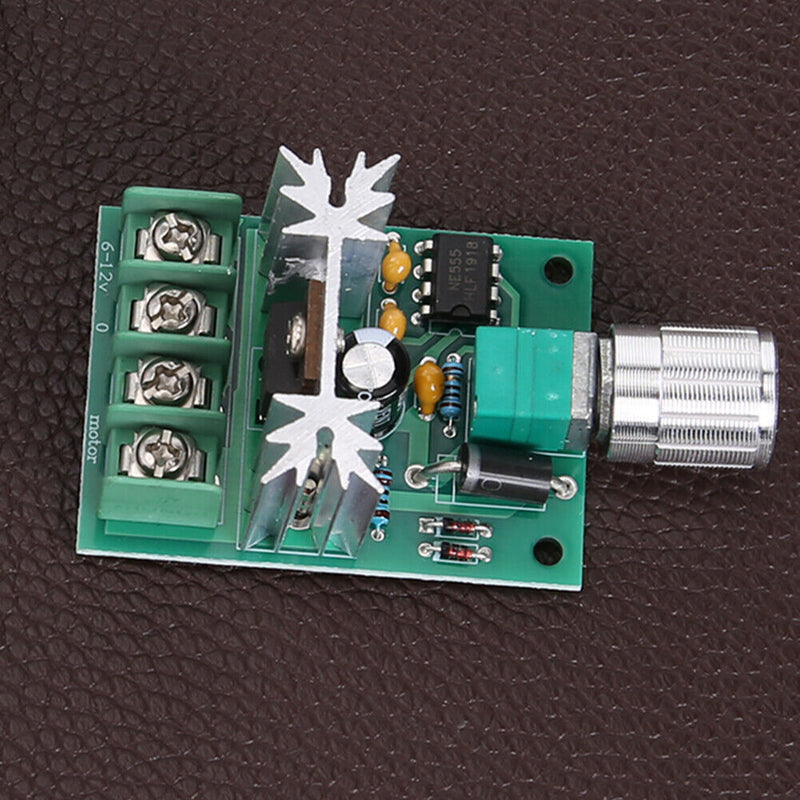

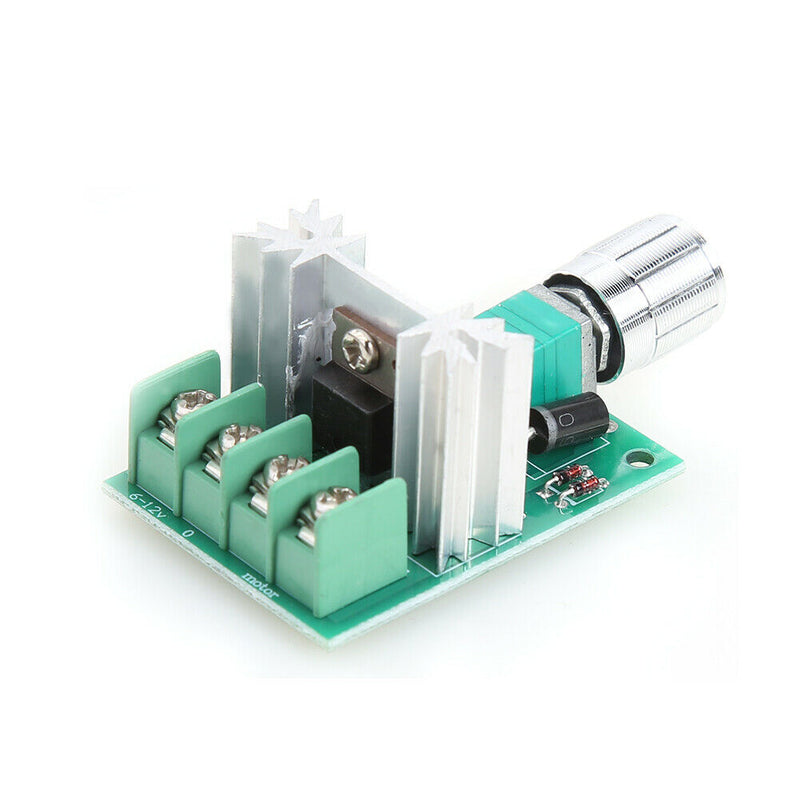

Item Name: 6V 12V 6A PWM No-Polarity DC Motor Speed Governor Speed Controller Module. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

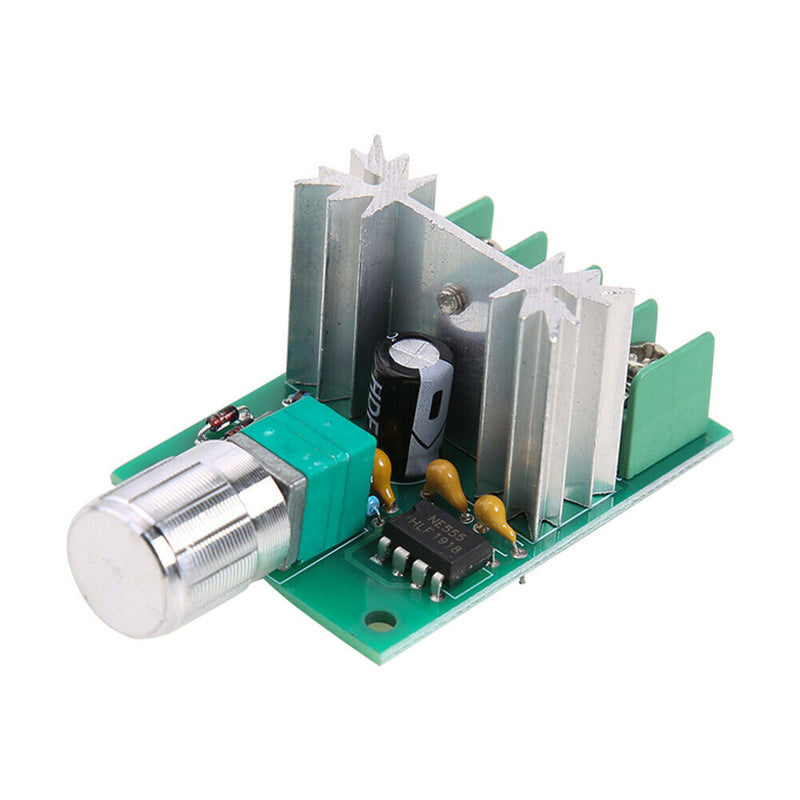

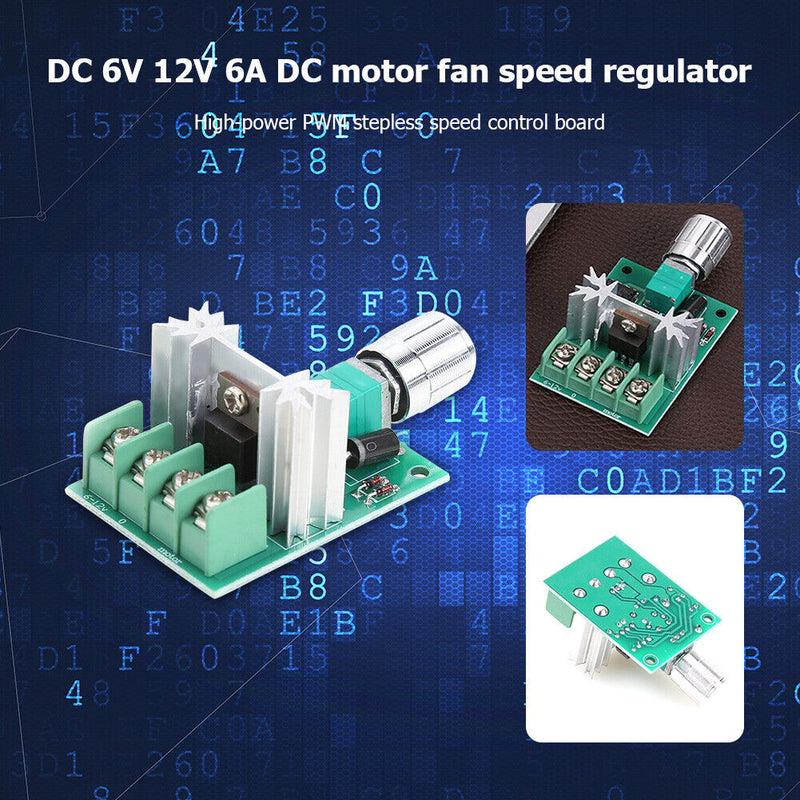

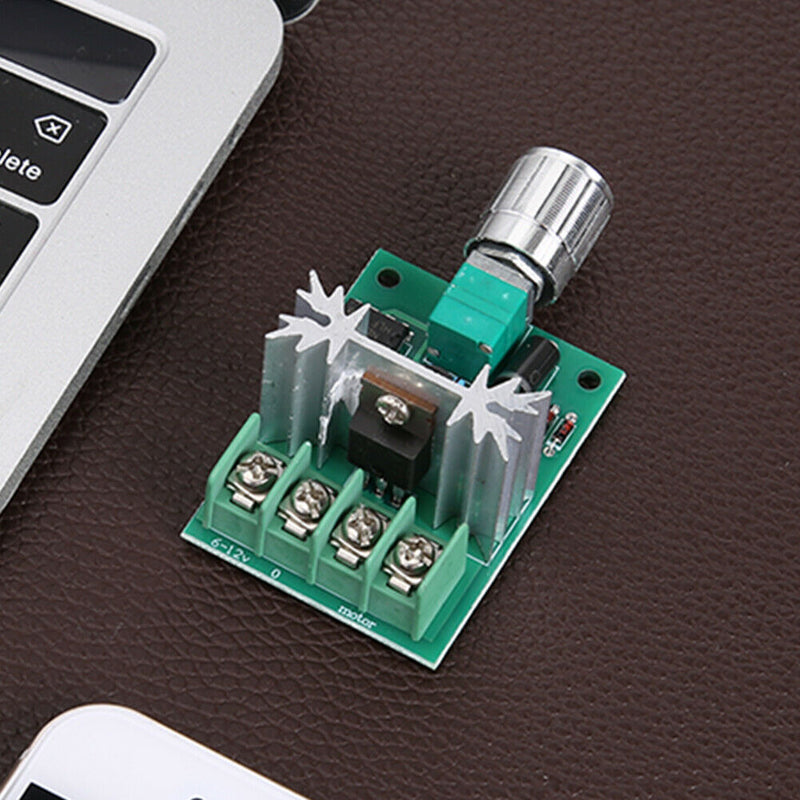

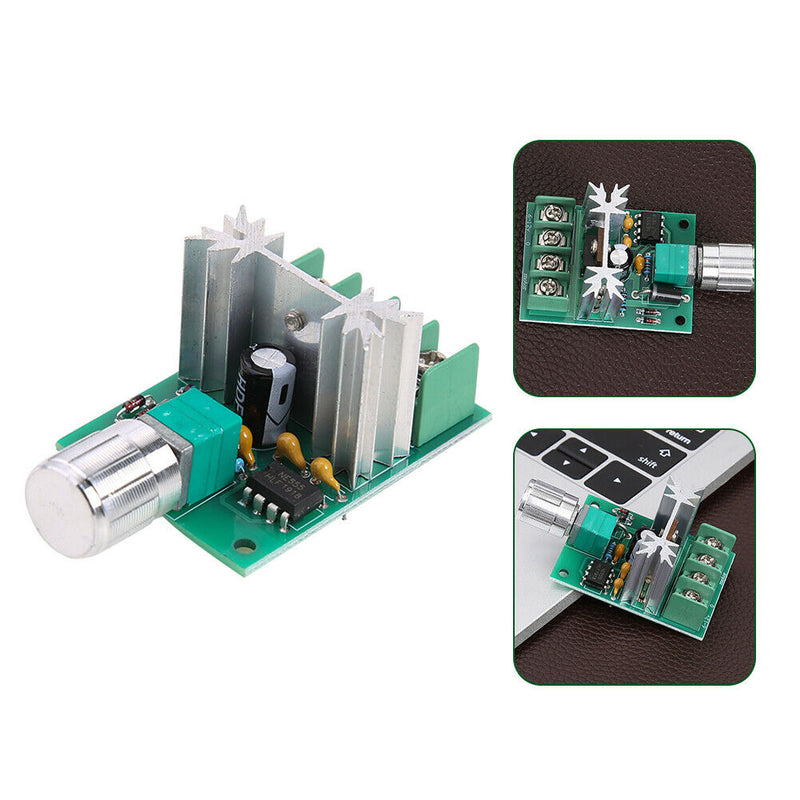

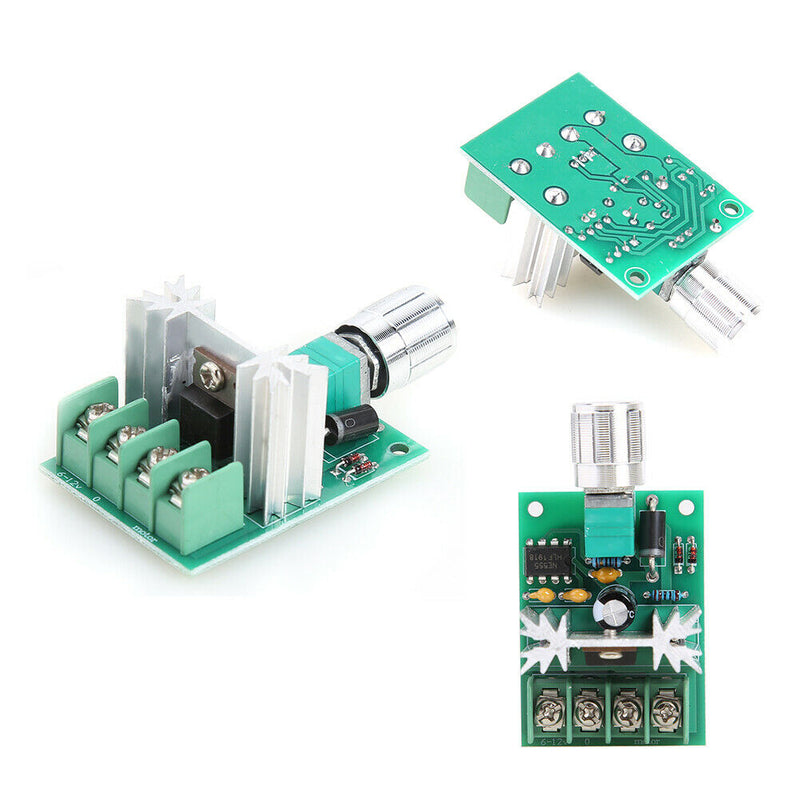

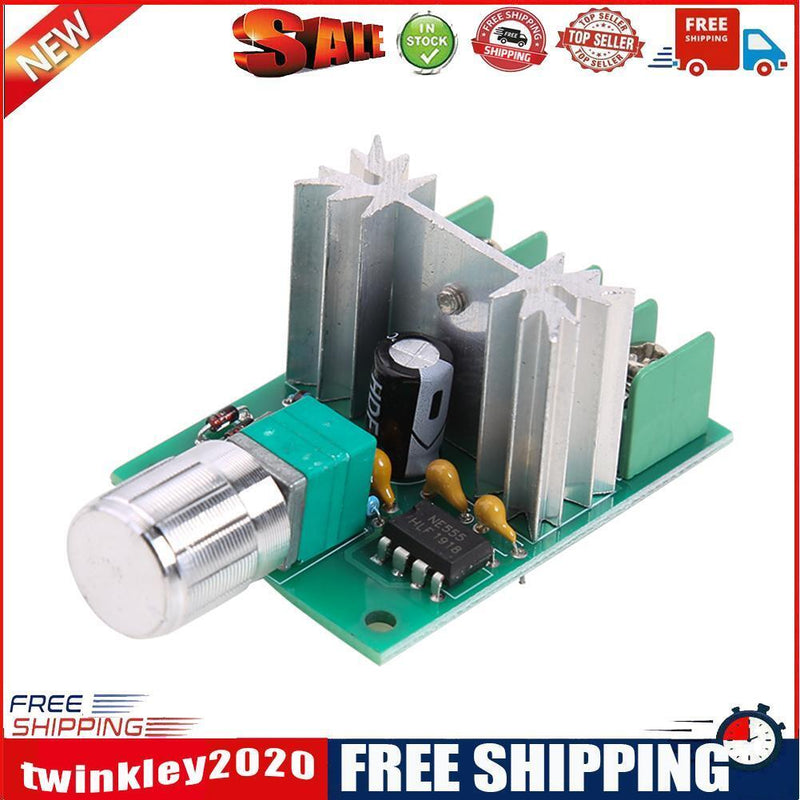

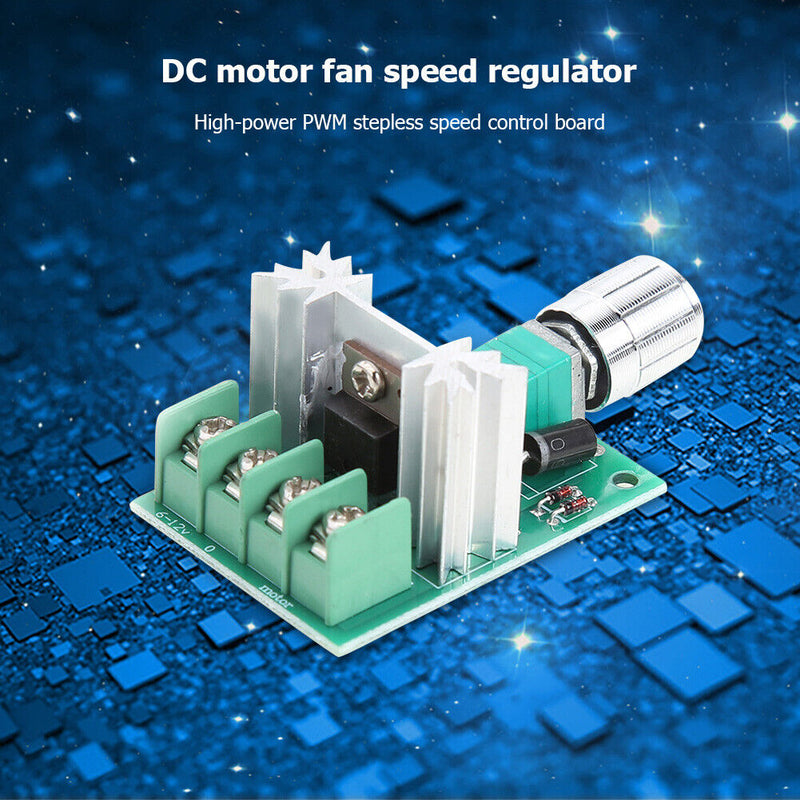

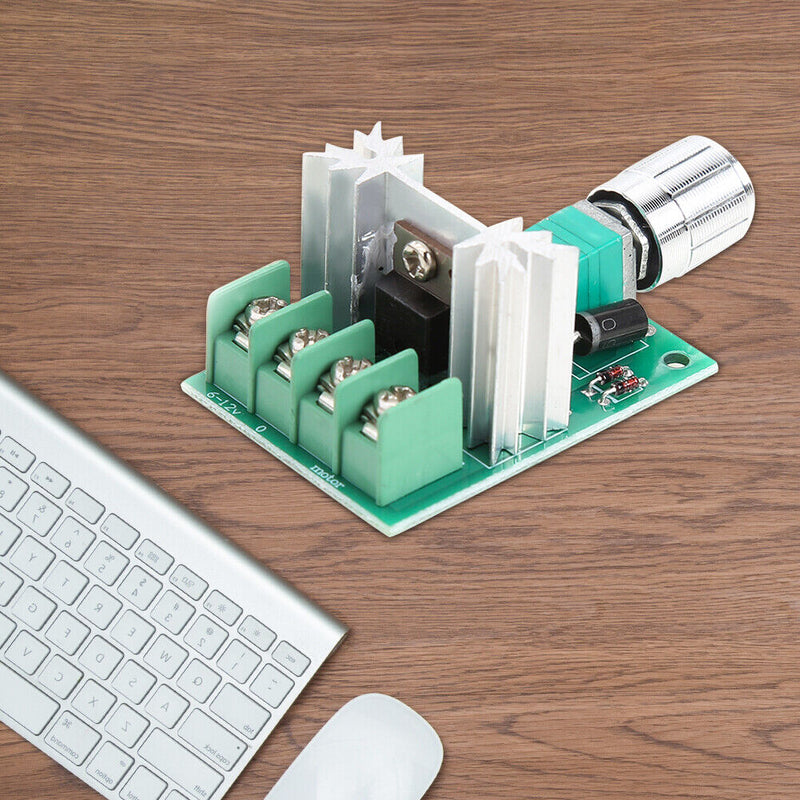

DC 6V 12V 6A PWM No-Polarity Motor Speed Controller Module High Power Motor Speed Regulator Governor Control Switch
Feature:
1. High-quality speed control switch, with switch DC speed controller
2. DC 6-12V input working voltage
3. 6A stable working current
4. The speed adjustment range is 0%-100% of the original speed
Specification:
Product size: 51*37*26mm/2.01*1.46*1.02"
Notice:
1. The input of the DC motor speed controller is direct current, and it cannot be directly connected to alternating current (for example: household 220V alternating current), otherwise it will burn out.
2. Do not connect the positive and negative terminals of the DC power supply in reverse, otherwise the governor may be damaged.
3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
4. Adjusting the potentiometer knob can change the output duty cycle of the governor. When the motor speed changes the wiring, the line must not touch the heat sink.
5. Adjust the potentiometer clockwise, the larger the value.
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
