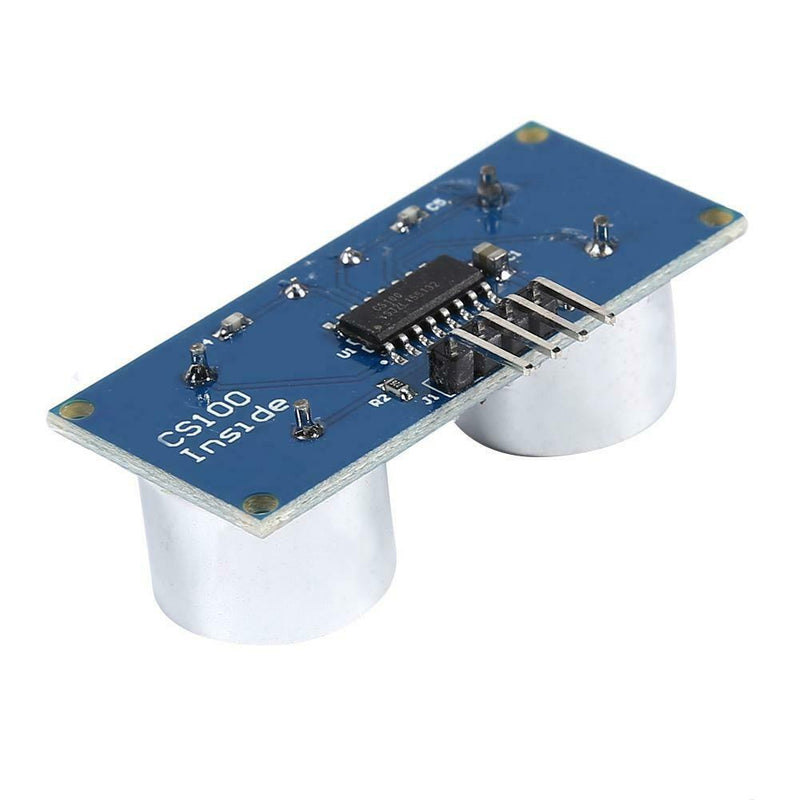

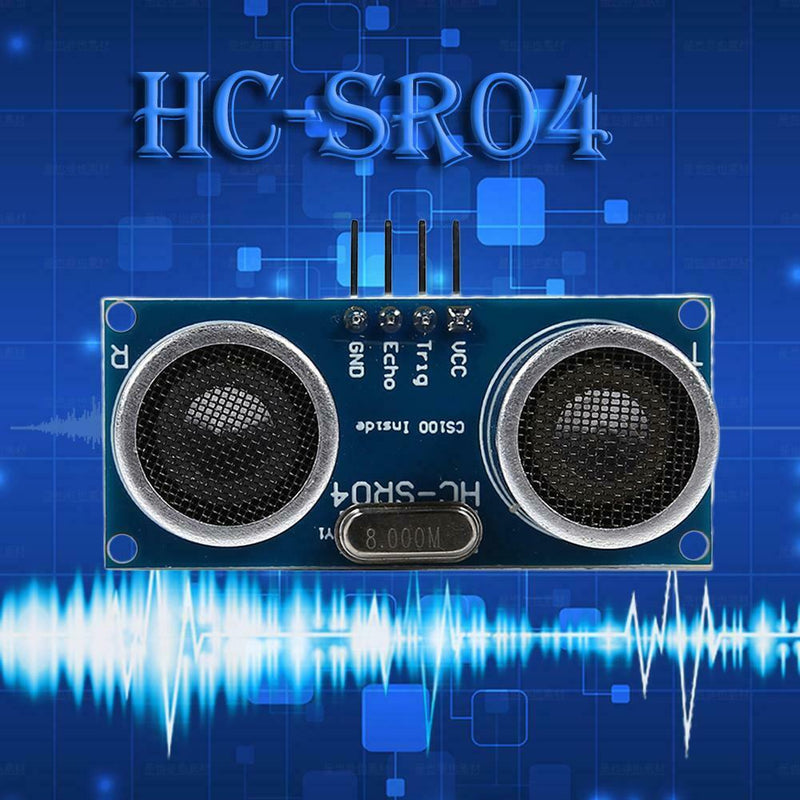

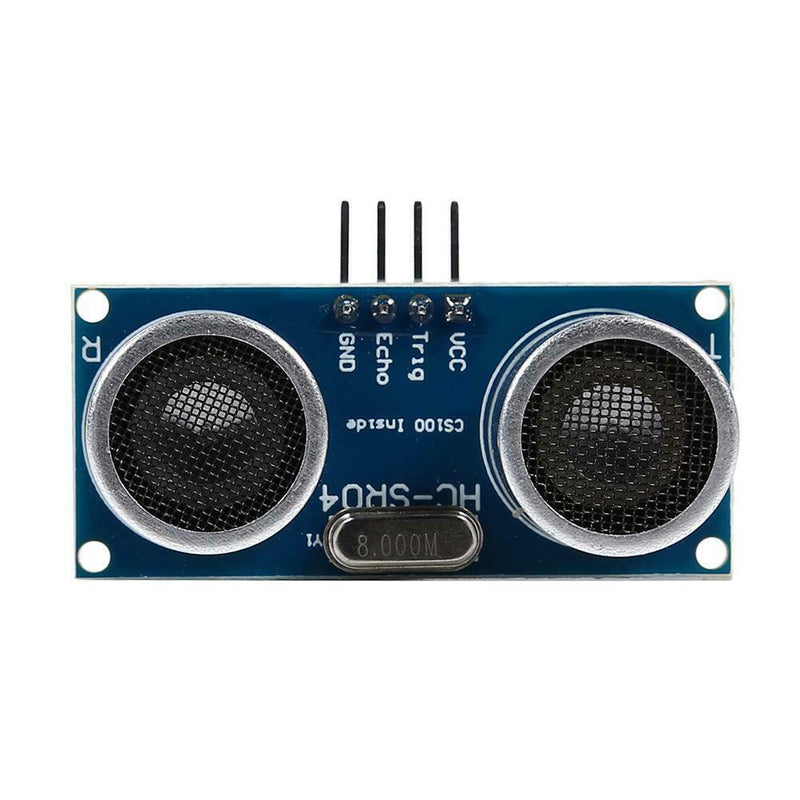

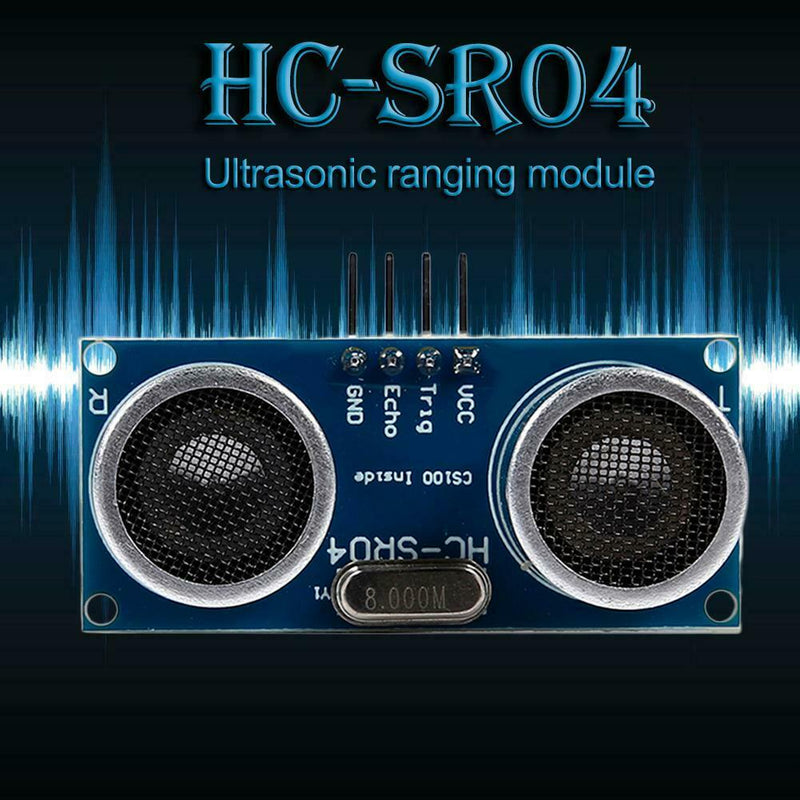

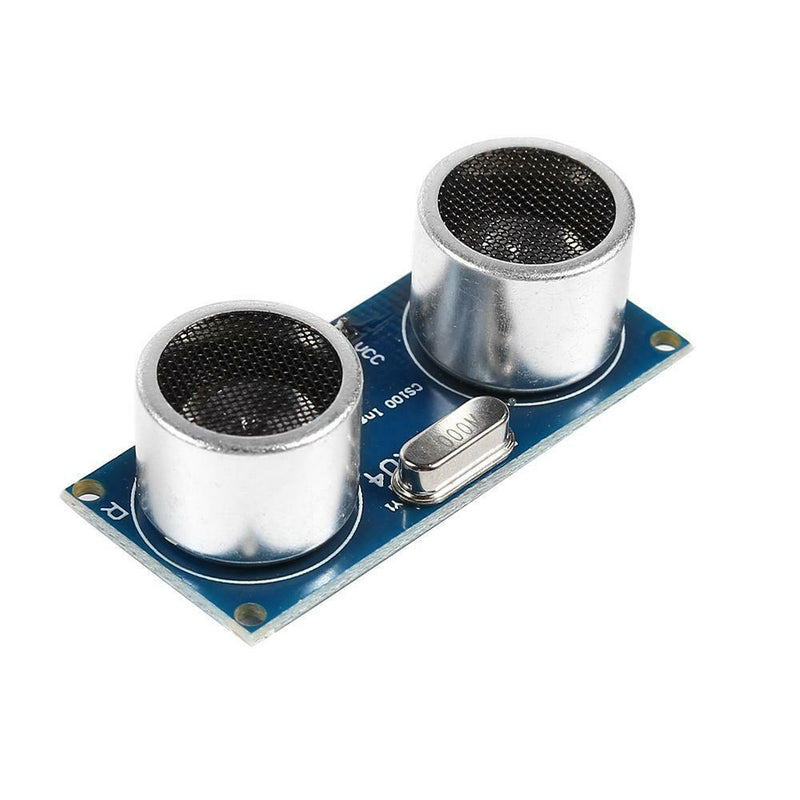

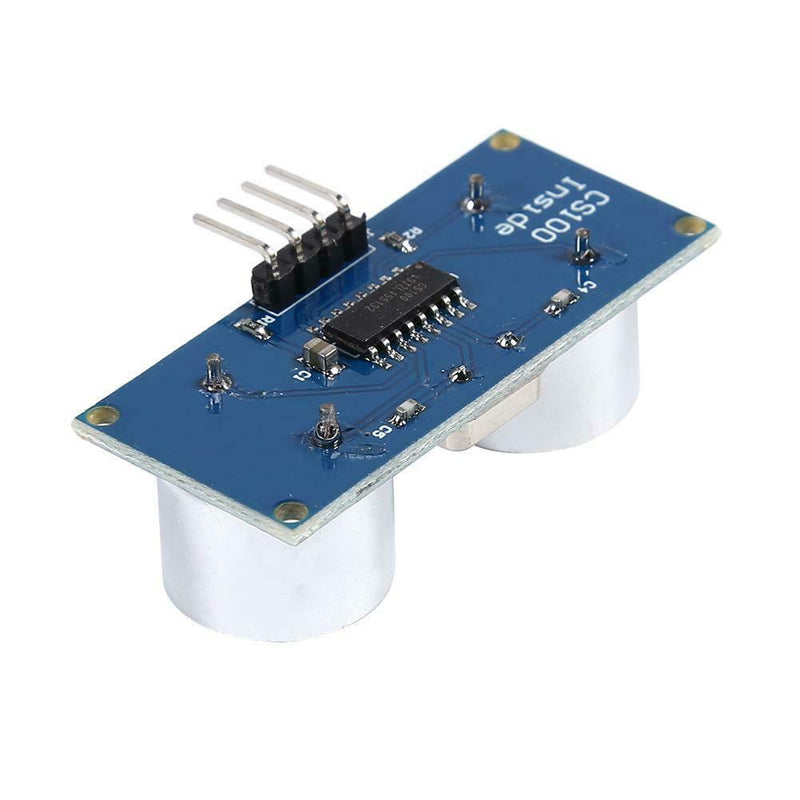

ITEM NAME:HC-SR04 DC3V-5.5V Ultrasonic Wave Detector Ranging Module Distance Sensor Product Description Description: Description: 1. The new version of HC-SR04 has much better performance than the old version of HC-SR04 and US-015, and the ranging range is much farther than that of the old version of HC-SR04 and US-015, up to 6 meters, far beyond the ordinary ultrasonic ranging module. 2. Using CS-100 ultrasonic ranging SOC chip, high performance, industrial grade, wide voltage, low price, cost breakdown bottom price, only half the price of ordinary ultrasonic ranging module, and far superior to the performance of ordinary ultrasonic ranging module. 3. The new HC-SR04 ultrasonic ranging module can realize the non-contact ranging function of 2cm~6m. The working voltage is 3V-5.5V and the working current is 5.3mA. It supports GPIO communication mode and works stably and reliably. 4. The new HC-SR04 has the same size and compatible interface with the old HC-SR04, but it has the advantages of farther ranging, higher precision, wider working voltage and industrial grade. 5. The performance is the same as US-025 and US-026. All of them adopt CS100 chips and have fully compatible interfaces. Specification: Ultrasound Ranging Chip: CS100 Working Voltage: DC 3V-5.5V Working current: 5.3mA Operating temperature: -40℃-85℃ Output mode: GPIO Induction angle: less than 15 degrees Detection range: 2cm-600cm/0.78-236.22'' Detection accuracy: 0.1cm+1% Product size: 45mm*20mm*13mm/1.77*0.78*0.51'' Packing weight: 9g Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. Included: 1 X HC-SR04 Ultrasonic Wave Detector.Included: 1 X HC-SR04 Ultrasonic Wave Detector. It supports GPIO communication mode and works stably and reliably. Ultrasound Ranging Chip: CS100. Due to the different display and different light, the picture may not show the actual color of the item.
