Description:
Size: 75x51.5x20mm
Continuous working current: Within 100A
Charge current: Within 100A
Balance charging: Yes
Short circuit protection: Yes
Function: Prevent overcharge, overplay, circuit protection
Suitable assembly: Nominal 3.2V electric core
| Details |
Specification |
Unit |
Remarks |
| Discharge |
Continuous discharge current |
100 (MAX) |
A |
| Instantaneous discharge current |
200 |
A |
| Charging |
Charging voltage |
14.6 |
V |
| Recharging current |
100 (MAX) |
A |
| Overcharge protection |
Overcharge detection voltage |
3.75±0.025 |
V |
| Overcharge protection delay |
0.5 |
S |
| Overcharge release voltage |
3.6±0.1 |
V |
| Electricity balance |
Battery balance detection voltage |
3.60±0.025 |
V |
| Battery balance release voltage |
3.60±0.05 |
V |
| Battery balance current |
40±5 |
mA |
| Overdischarge protection |
Overdischarge detection voltage |
2.1±0.1 |
V |
| Overdischarge detection delay |
0.1 |
S |
| Overdischarge release voltage |
2.3±0.1 |
V |
| Overcurrent protection |
Overcurrent detection voltage |
200 |
mV |
| Overcurrent detection delay |
9 |
mS |
| Overcurrent protection current |
250±30 |
A |
| Overcurrent protection release condition |
Disconnect load |
|
| Short circuit protection |
Short circuit protection condition |
External load short circuit |
|
| Short circuit detection delay |
250 |
uS |
| Short circuit protection release condition |
Disconnect negative |
|
| Temperature protection |
Temperature protection |
Temperature protection |
℃ |
| Internal resistance |
Main circuit conduction internal resistance |
≤25 |
mΩ |
| Self-consumption |
Working current |
≤30 |
uA |
| Sleep current (when the battery is over-discharged) |
≤10 |
uA |
| Operating temperature |
Temperature range |
-30 to 75 |
℃ |
Package Included:

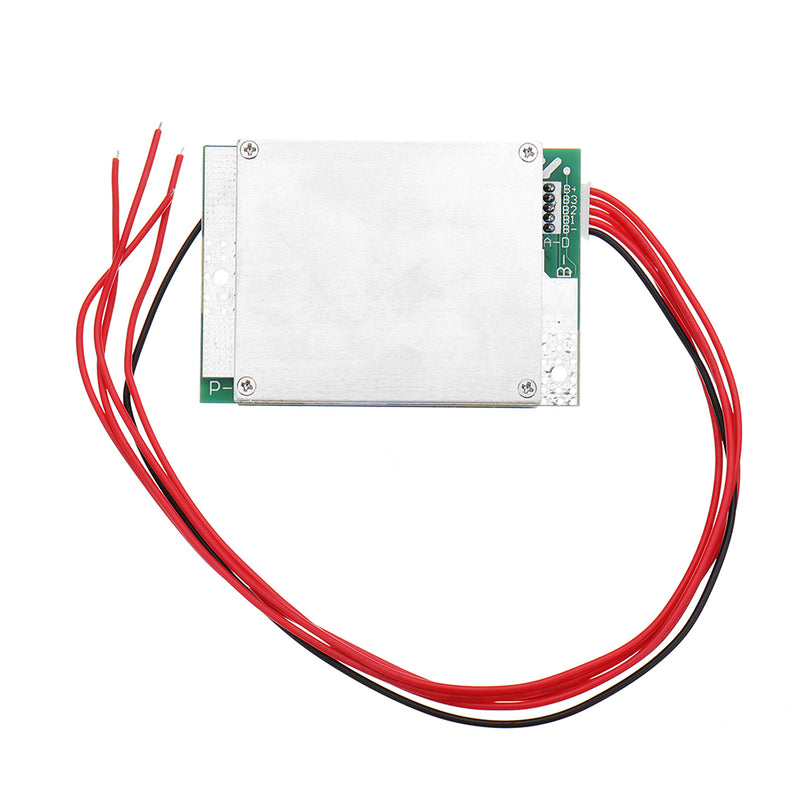

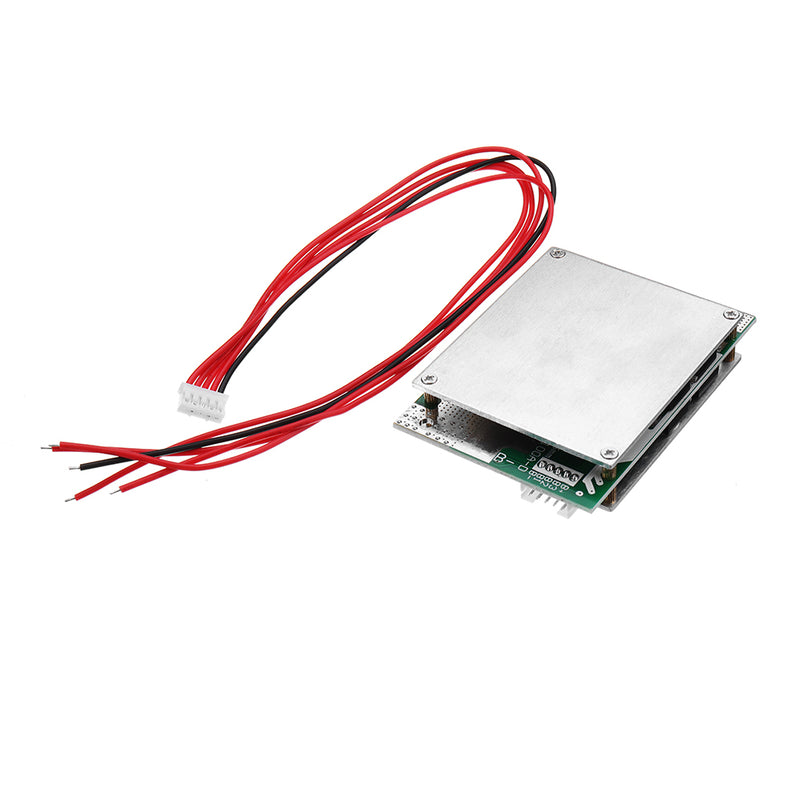

1 x 12V Battery Protection Board
