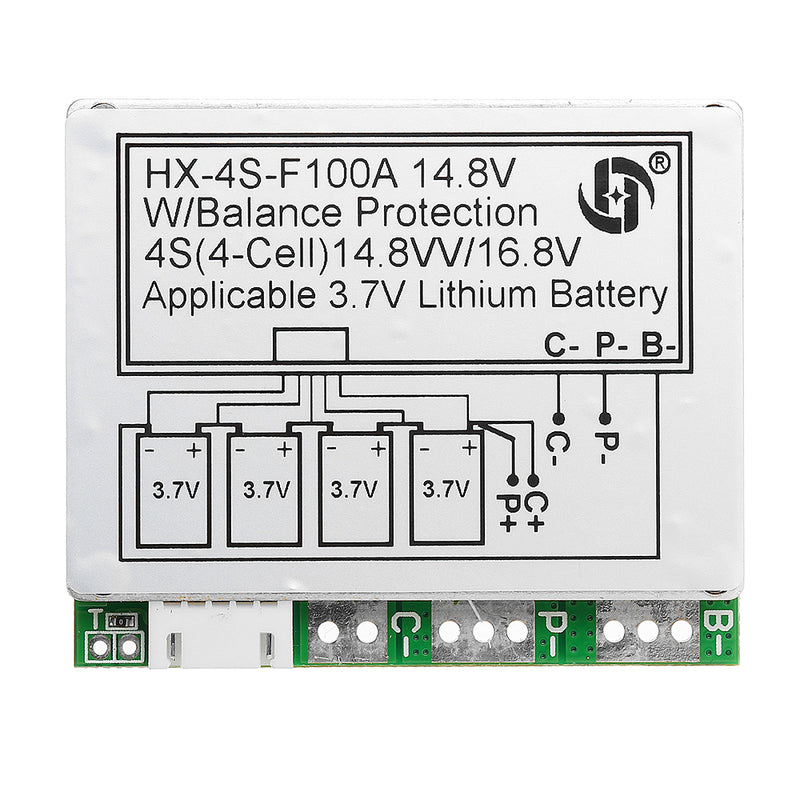

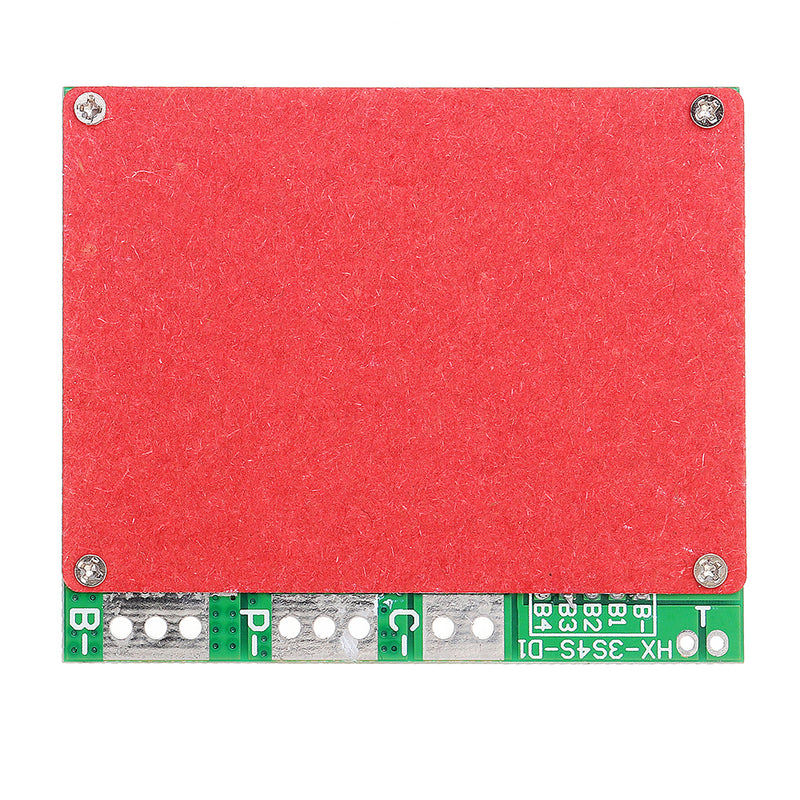

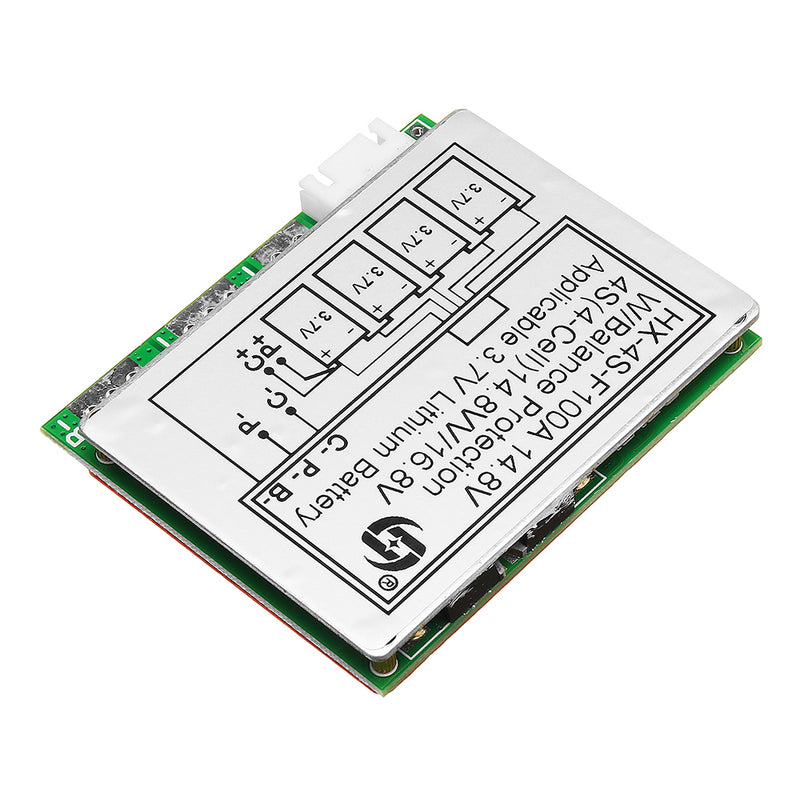

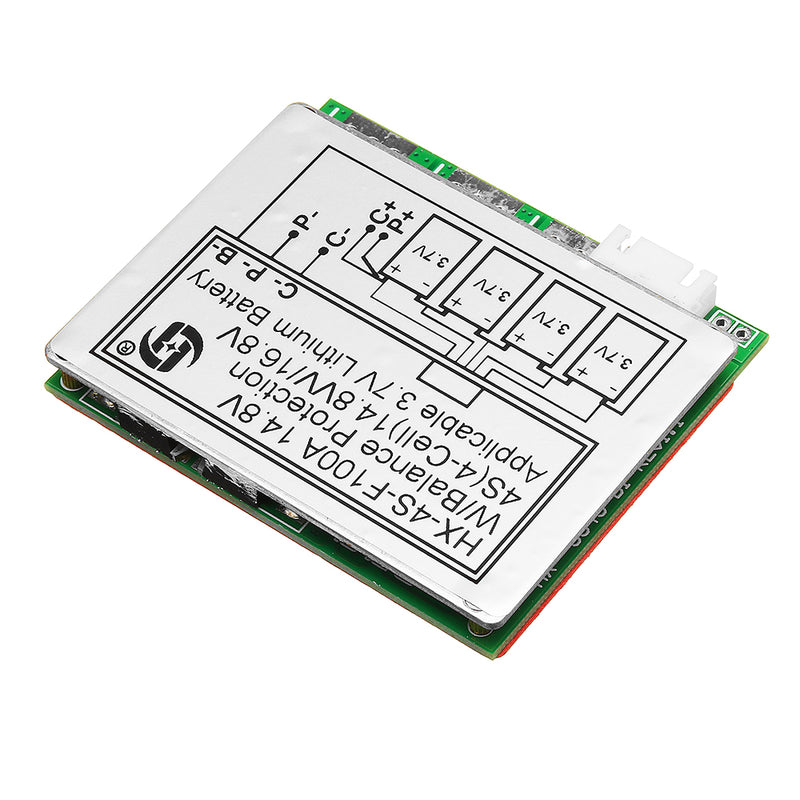

Description:
The module has the functions of over-charge protection, over-discharge protection, and short circuit protection. Safety and reliability.
Battery heating in use means that battery rate is not applicable. This situation can not be used for a long time and the battery will be damaged quickly.
There are 10 MOS transistors, strong heat dissipation aluminum sheet, upper limit of continuous current 100A. Suitable for 4 series battery packs, such as inverter, a xenon lamp, solar street lamp, etc.
Current: 100-120A
Charging Voltage: 16.8V
Charging current: 10A (Max)
Balanced Current of Electricity: 45mA
Working temperature: -20~80 degree C
Dimension: 70 x 60 x 8.5 mm
| |
Item |
Specification |
Unit |
Remark |
| Current |
Continuous discharge current |
100 |
A |
Attention temperature |
| Instantaneous discharge current |
120 |
A |
|
| Charging |
Charging voltage |
Lithium battery charger 16. 8V |
V |
Switching power supply 17-18V |
| Charging current |
10 (max) |
A |
|
| Overcharge protection |
Overcharge detection voltage |
4.28 ±0.05 |
V |
Single core |
| Overcharge protection delay |
0.5 |
S |
|
| Overcharge release voltage |
4. 08 ±0.05 |
V |
Single core |
| Battery balance |
Power balance detection voltage |
4.2±0.05 |
V |
|
| Power balance release voltage |
4.2±0.05 |
V |
|
| Battery balance current |
45 |
mA |
|
| Over-discharge protection |
Over-discharge detection voltage |
2.5±0.08 |
V |
|
| Over-discharge detection delay |
0.1 |
S |
|
| Over-discharge release voltage |
2.9±0. 1 |
V |
|
| Overcurrent protection |
Overcurrent detection voltage |
150 |
mV |
|
| Overcurrent detection delay |
40 |
mS |
|
| Overcurrent protection current |
120±10 |
A |
|
| Overcurrent protection release condition |
Disconnect load |
|
|
| Short circuit protection |
Short circuit protection condition |
External load short circuit |
|
Short circuit prohibited |
| Short circuit detection delay |
250 |
uS |
|
| Short circuit protection release condition |
Disconnect load |
|
|
| Temperature protection |
Temperature protection |
/ |
°C |
Can add external temperature switch |
| Internal resistance |
Main circuit conduction internal resistance |
≤20 |
MΩ |
|
| Self-consumption |
Working current |
≤30 |
uA |
|
| Sleep current (when current is over-discharged) |
≤20 |
uA |
|
| Operating temperature |
Temperature range |
-20 to 80 |
°C |
|
| Board size |
|
70*60*8.5 |
mm |
|
Package Included:

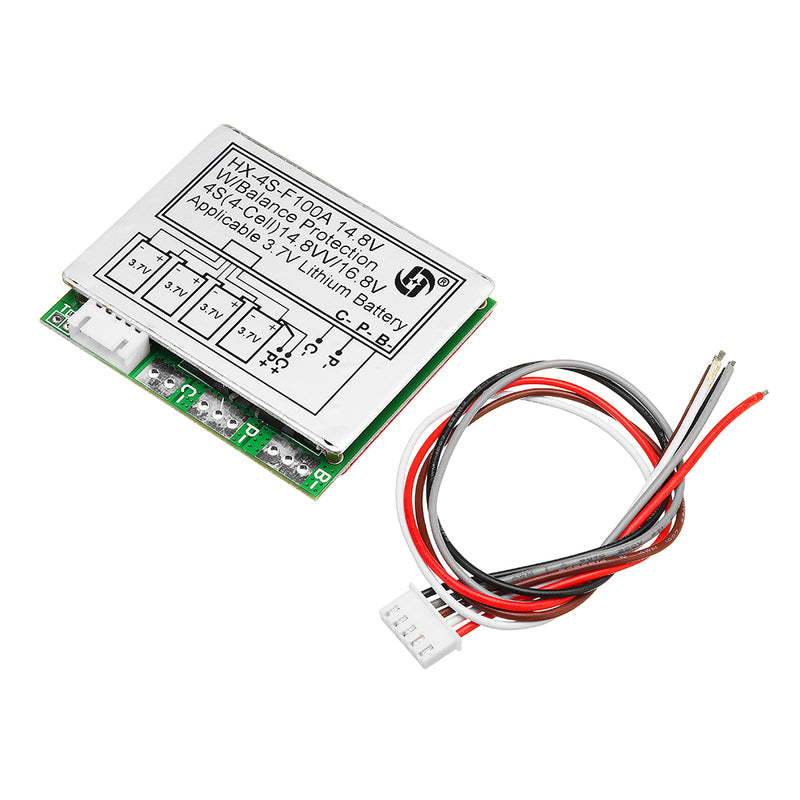

1 x 4 Series 16.8V Lithium Battery Protection Board
1 x Cable
