Specification:
Input Power Supply: 12V DC
Load Voltage: AC240V 2A
Maximum operating current: 13.8mA
Trigger mode: low level
Input control signal voltage:
(0-2.5V low state relay OFF)
(3.3-5V state high relay ON)
Blue KF301 terminal connection control line is more convenient.

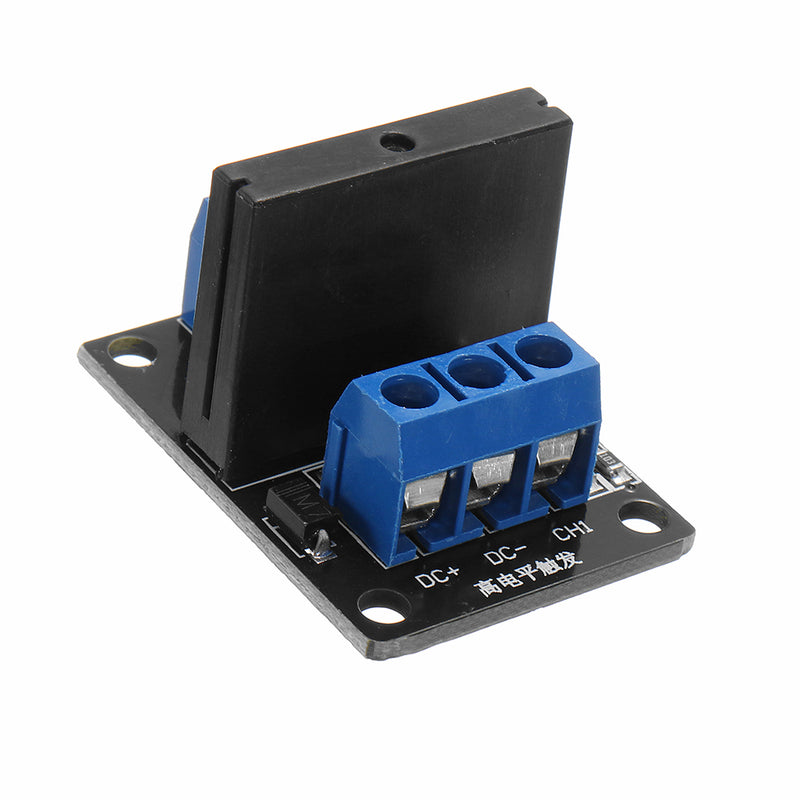

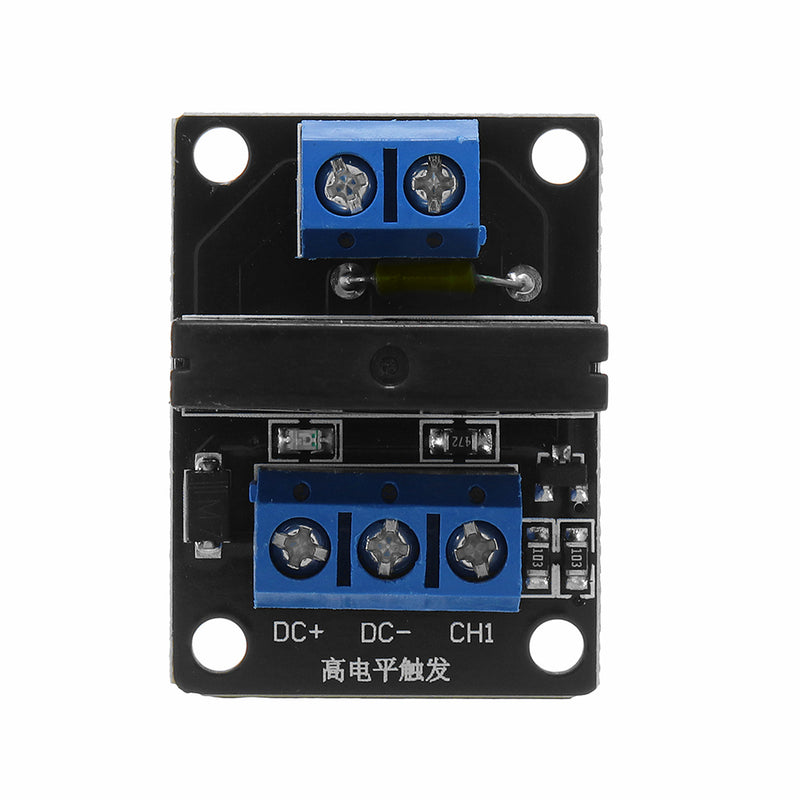

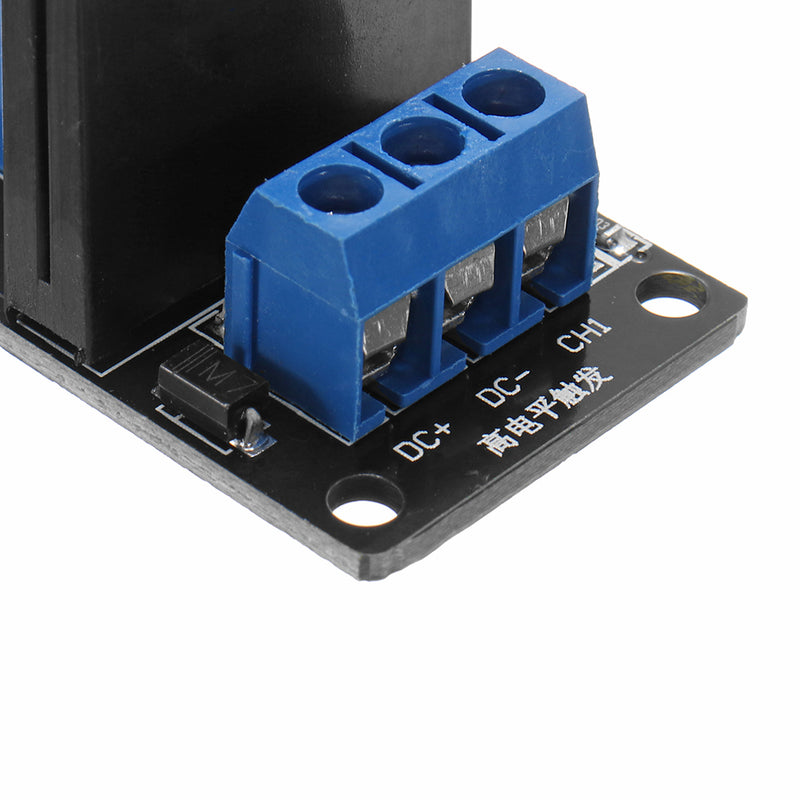

Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay Module signal triggering end (Low level trigger effective)
Note: Power must be DC voltage and need to be consistent with the voltage relay
Package Included:
5 x Low Level Relay Module
