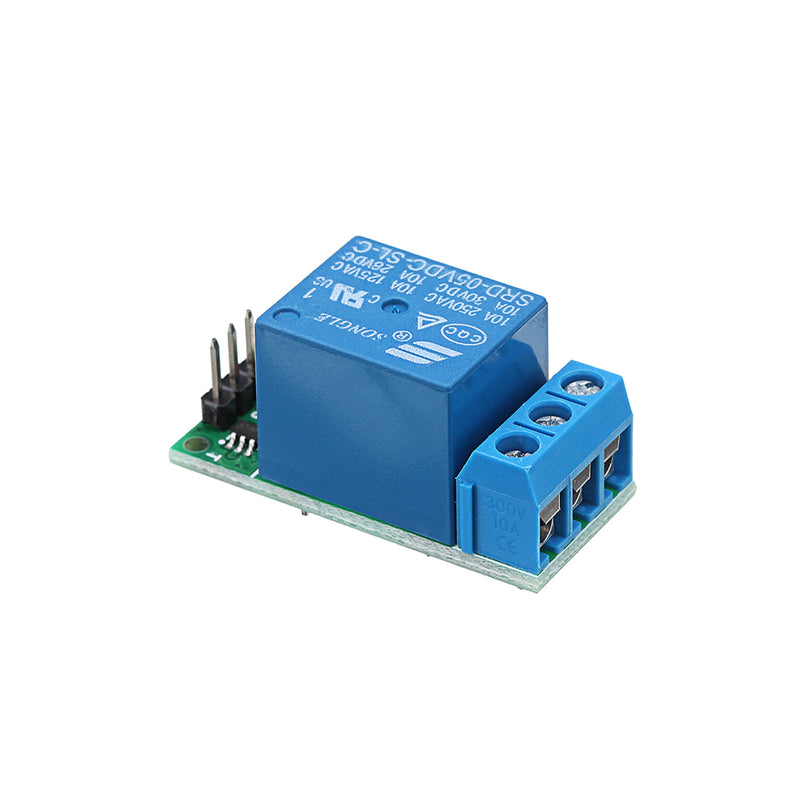

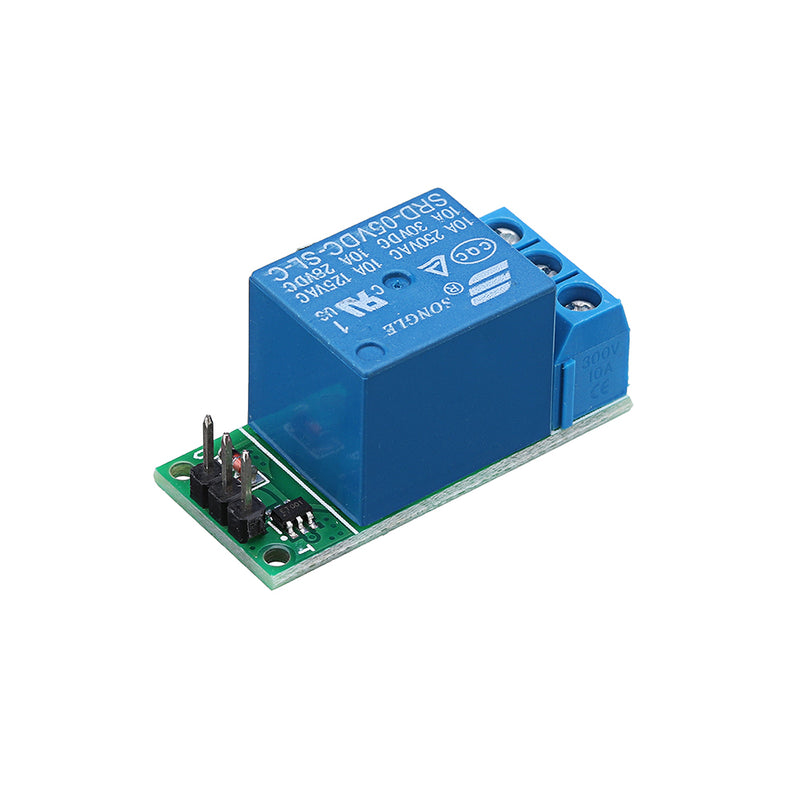

Description:
Working voltage: DC 5V
Working current: 70MA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger

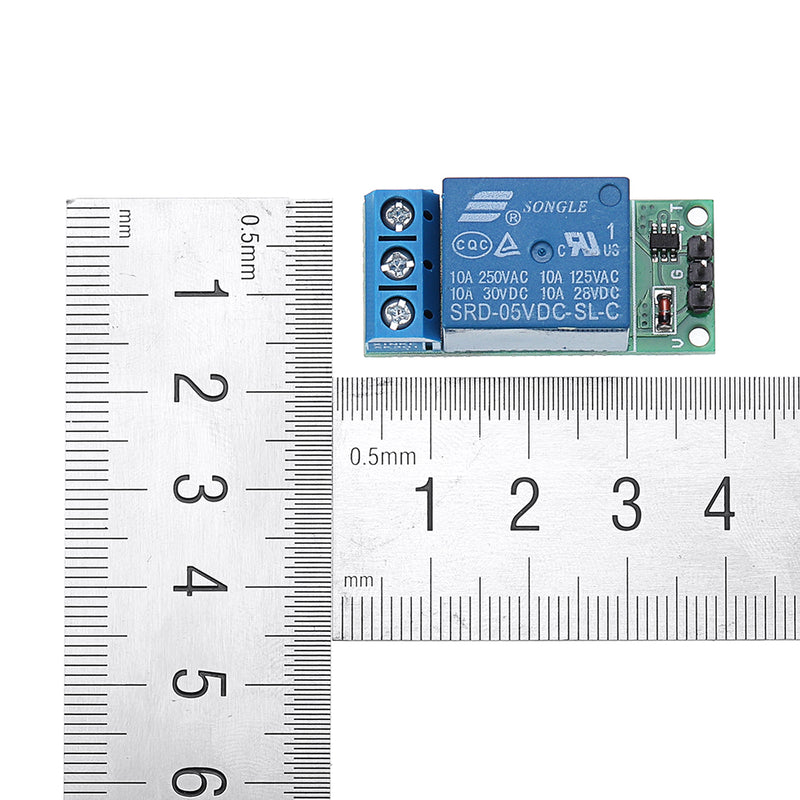

Size: 35mm * 16mm * 18.5mm (L * W * H), Very small size
Weight: 13.5 g
USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.

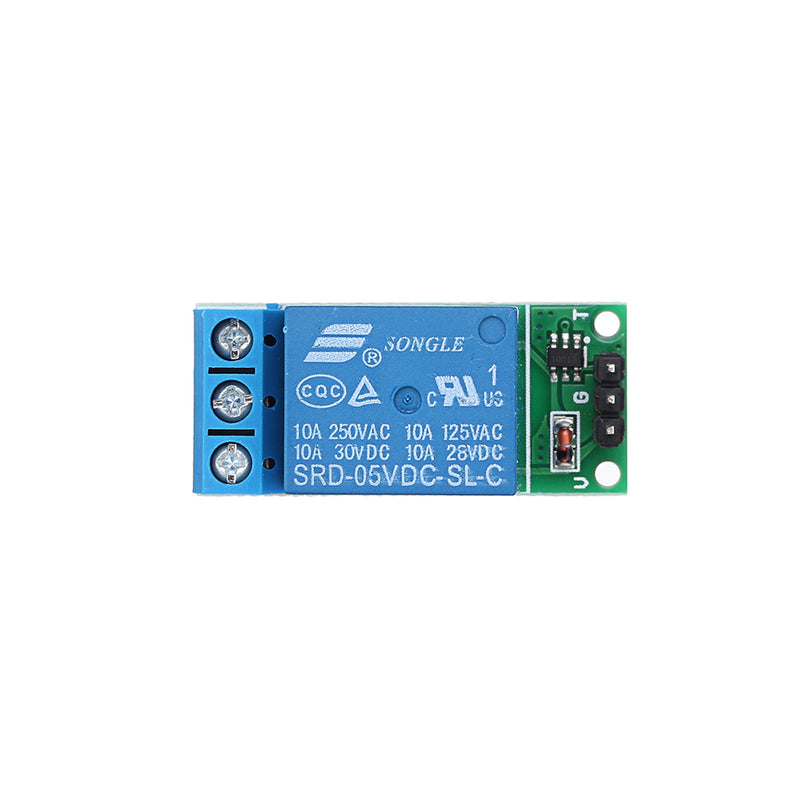

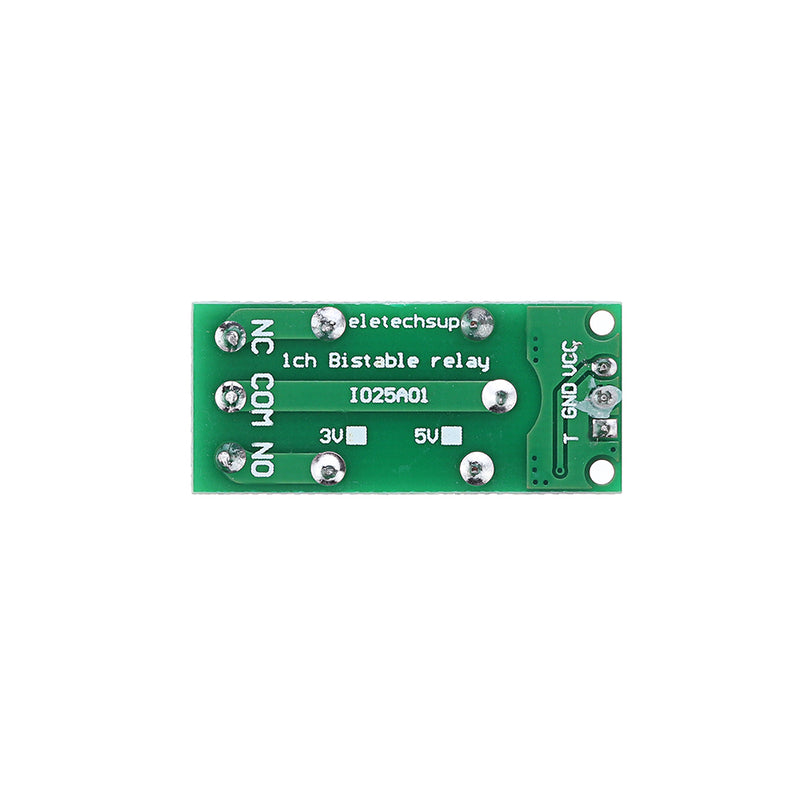

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T: Low pulse trigger

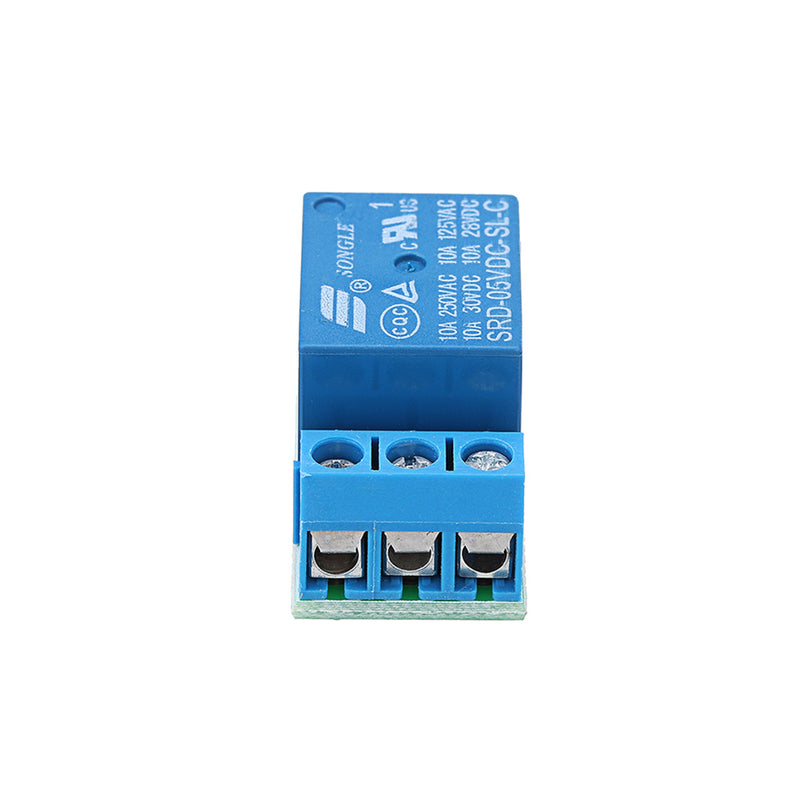

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE: By default, the relay is released, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
Package includes:
5 x Relay module
