Features:
1.Model:JYQD-6.4B
2.Name:Brushless Motor Driver Board
3.Soft commutation function
4.Operating instructions
5.Over-current protection
6.Anti-reverse protection
Specifications:
1.Operating voltage:DC 7.5V-18V(12DC±20%)
2.Operating Current:≤3A
3.Speed Voltage:0.25V-5V
4.Speed range:5%-100%
5.Drive power:30W
6.Size: 45*32mm

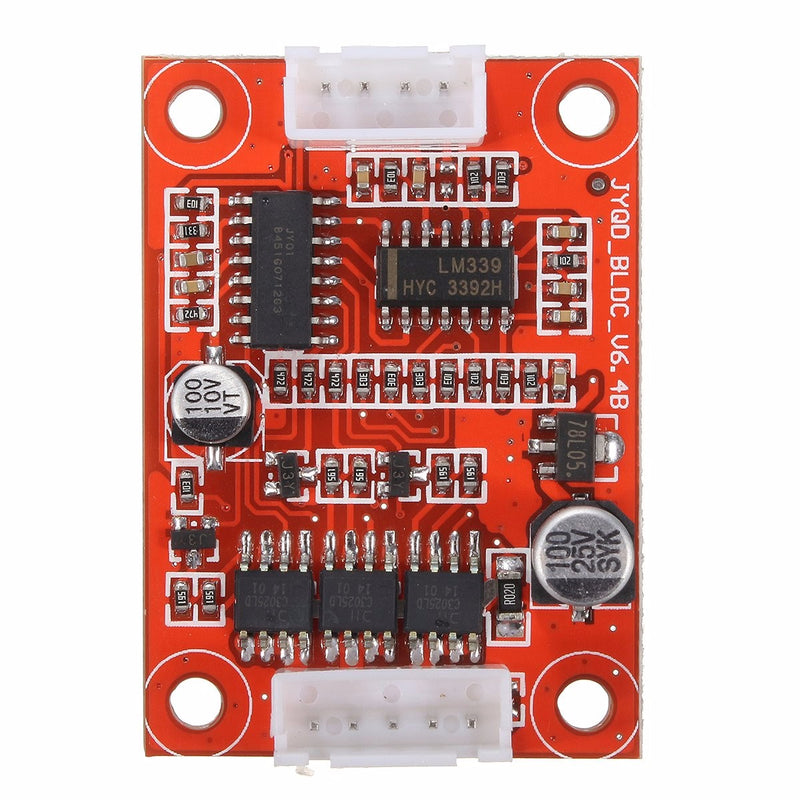

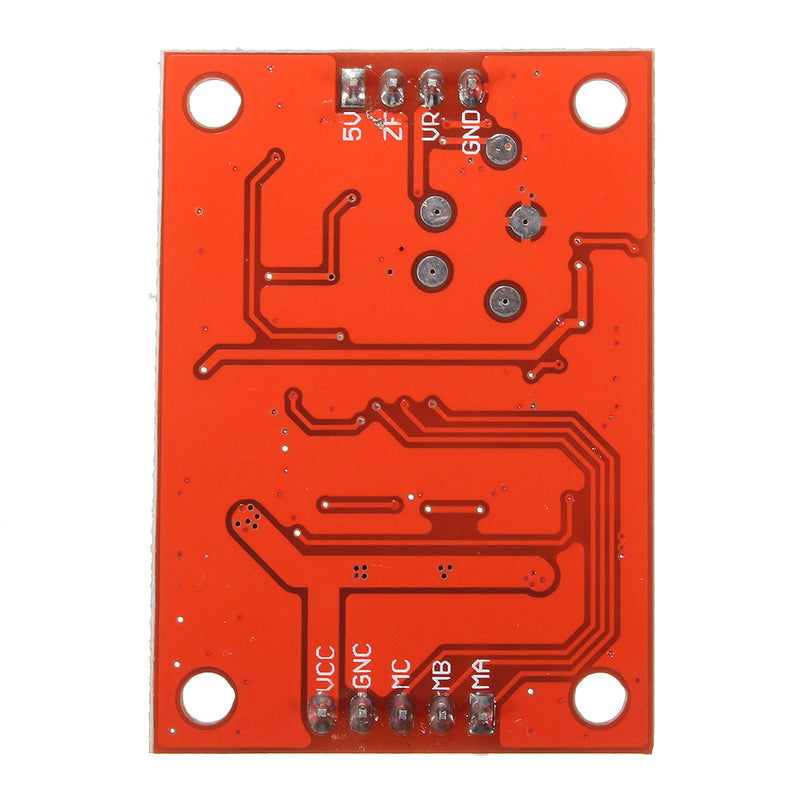

Wiring instructions:
1. The control side:
5V: drive board output voltage, external speed potentiometer when used (when not in use, vacant)
ZF: motor rotation direction control terminal, ground or 5V can change the direction of the motor (can be vacant, steering fixed)
VR: speed signal input, the voltage range of 0.25V --- 5V (less than 0.25V voltage when the motor does not rotate)
GND: Common to the control terminal
2. The output:
Power +: Connect the positive pole of the power supply, the voltage range is 7.5V --- 18V
Power -: Power ground, then the power supply negative
MA / U: Connect any three wires of the motor
MB / V: Connect any three wires of the motor
MC / W: Connect any three wires to the motor
Package included:

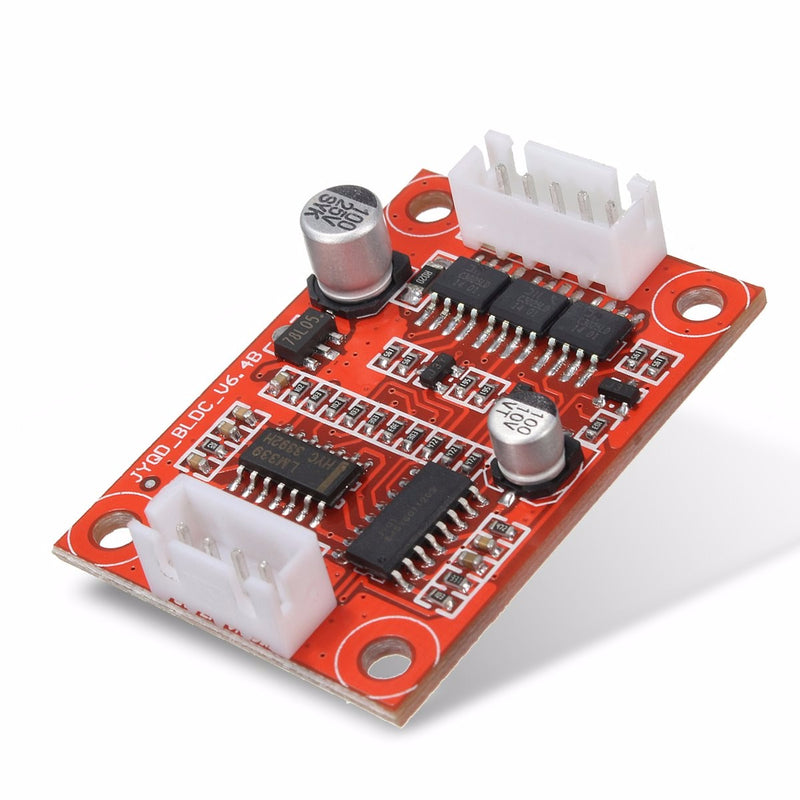

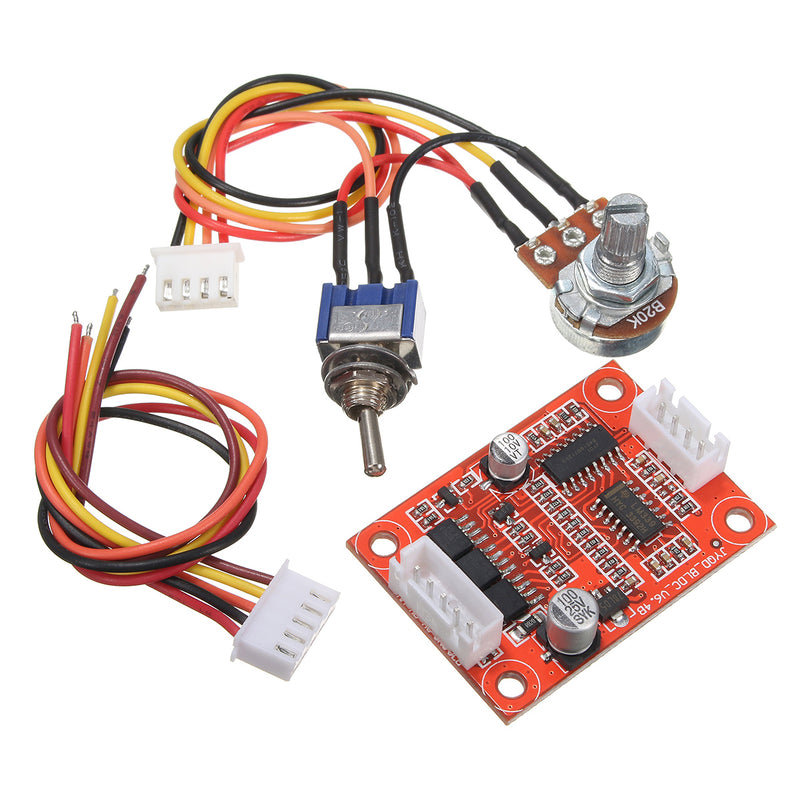

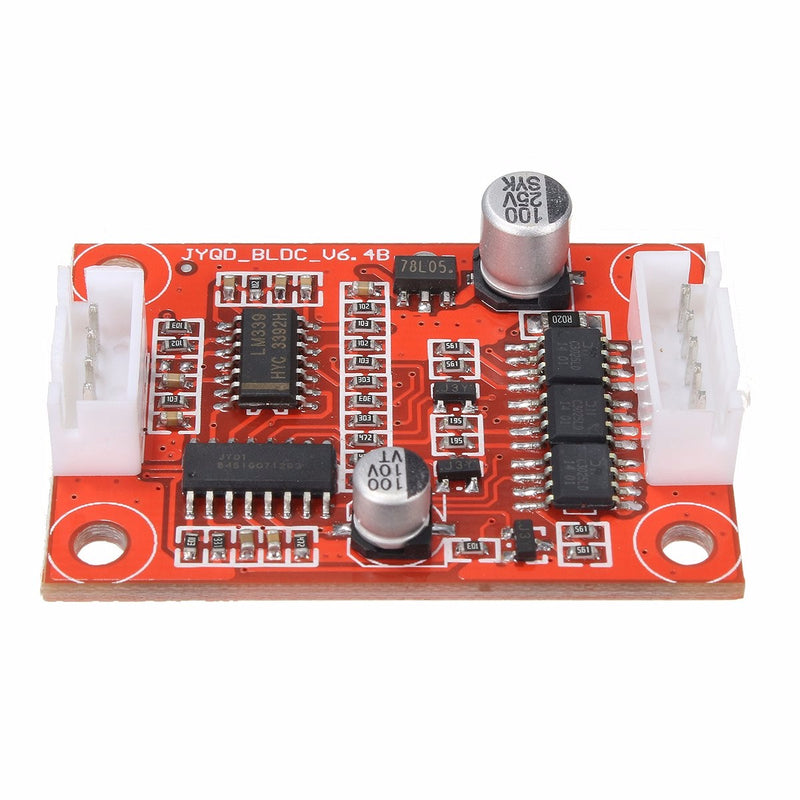

1 x Brushless Motor Driver Board

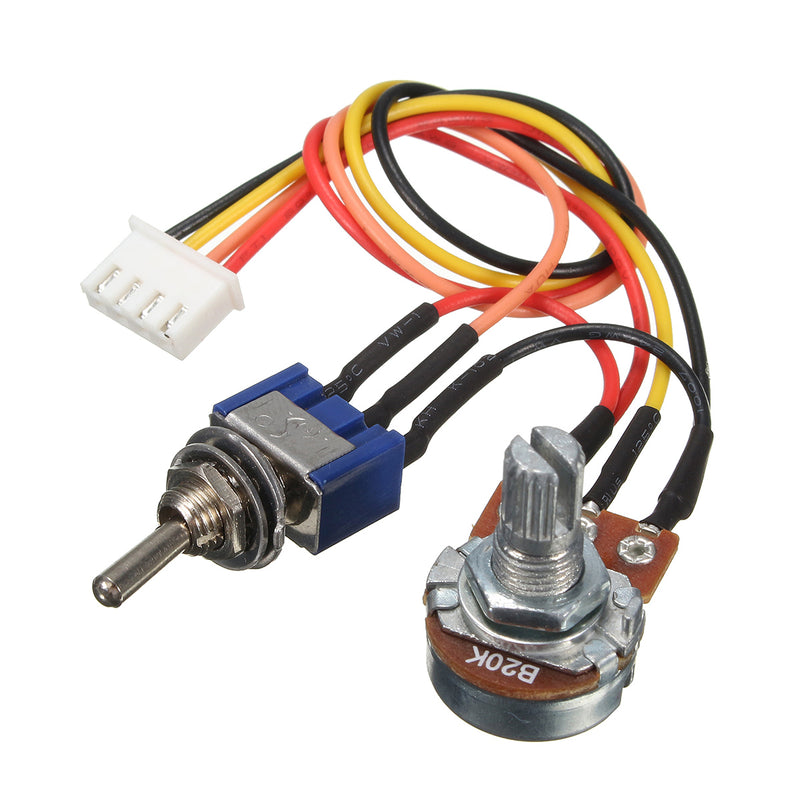

1 x Governor + Positive & Negative Switch

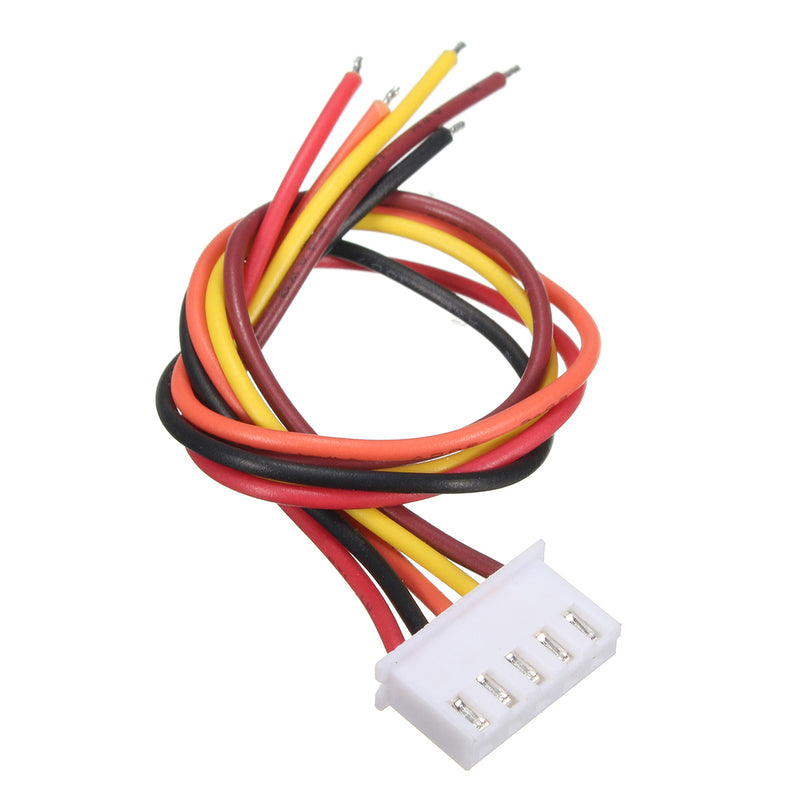

1 x 5pin Output Control Cable
