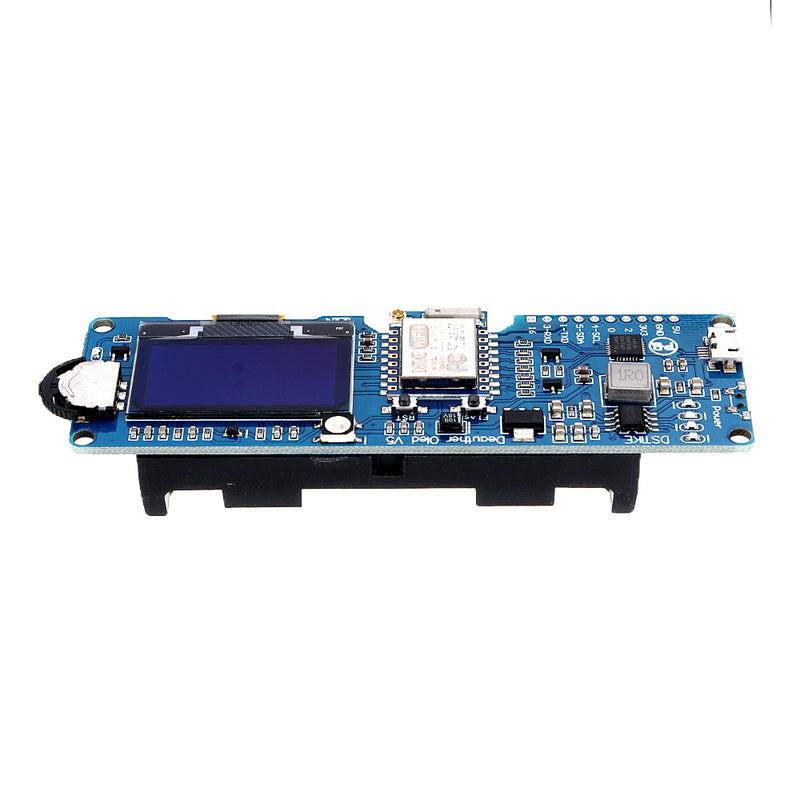

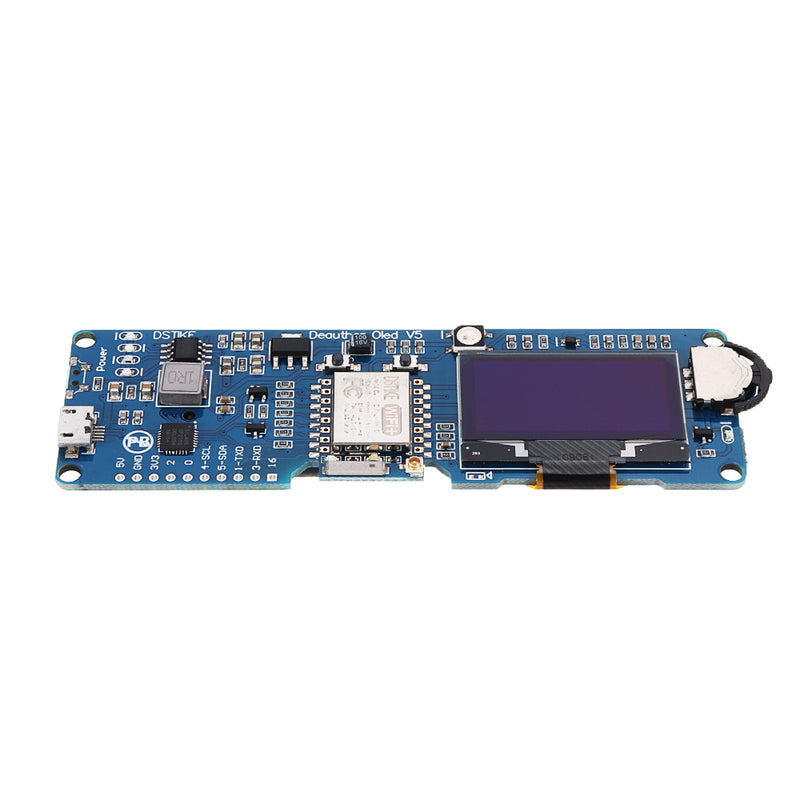

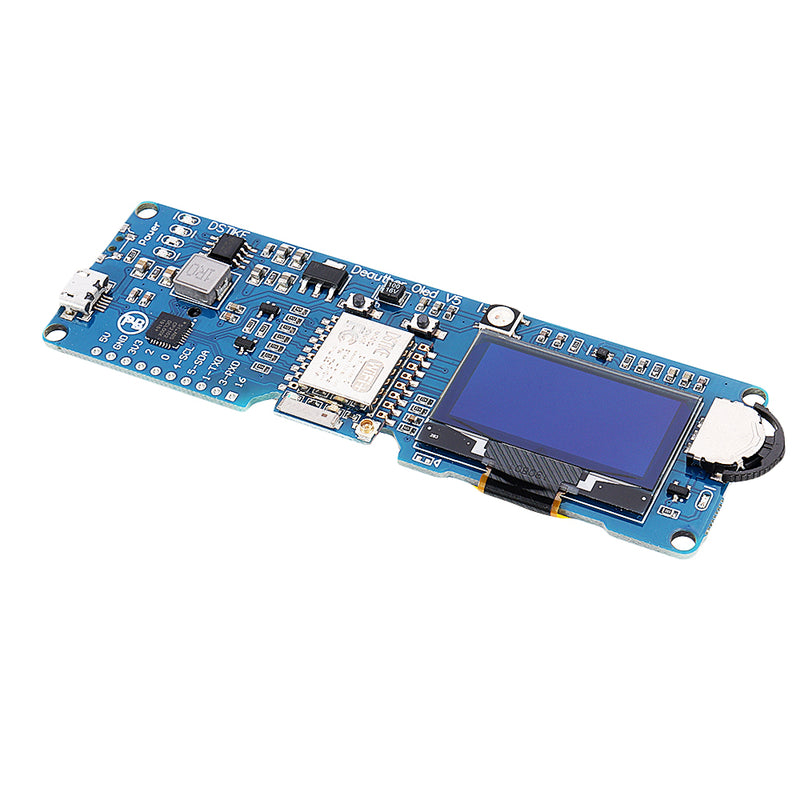

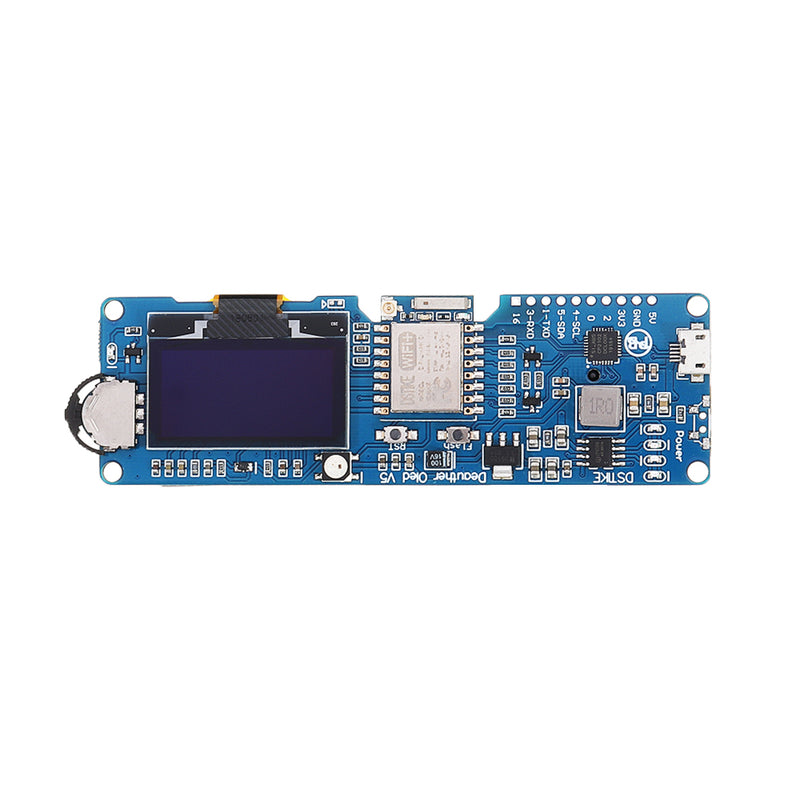

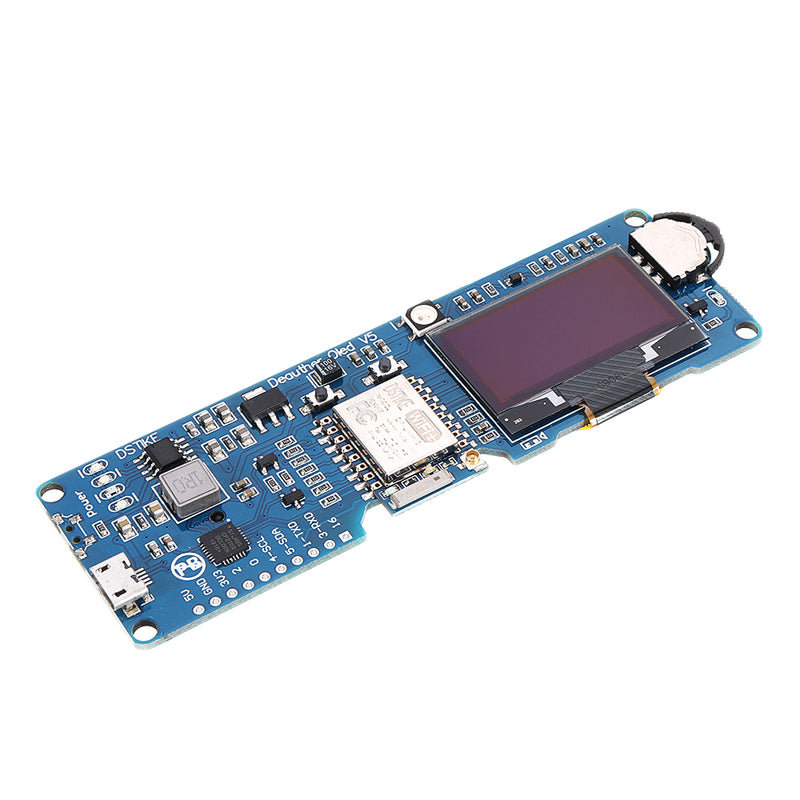

DSTIKE WiFi Deauther OLED V5 ESP8266 Development Board with 18650 Battery Polarity Protection and Antenna 4MB ESP-07

The newest software version is V2.1.0.If you receive old version you can update it yourself. This product does not include 18650 battery.

Power cost is around 80~100mA. If you use 3500 mAh 18650 battery this board theoretically could work 35 hours

What is it?

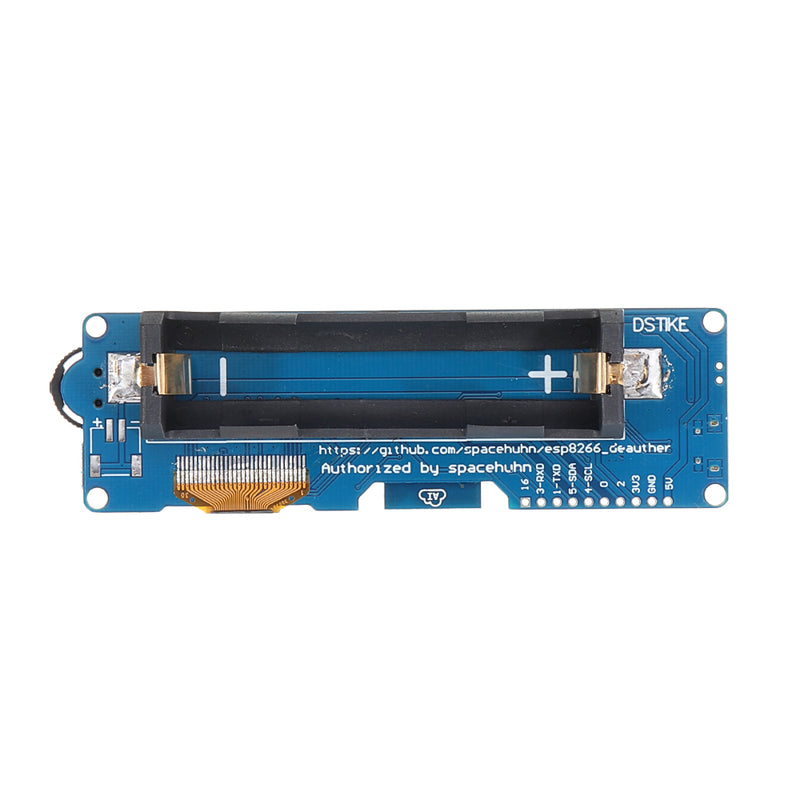

This ESP8266 development board comes with an integrated 18650 charging system, OLED display and a 3 way momentary slide switch.
It comes installed with the latest ESP8266 Deauther software.
With this software, you can perform different attacks to test WiFi networks.
Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit:
github.com/spacehuhn/esp8266_deauther.

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

GPIOs and hardware info
Display: SH1106 1.3" OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14

Break out Pins:

GPIO-16
GPIO-3(RXD)
GPIO-1(TXD)
GPIO-5(SDA)
GPIO-4(SCL)
GPIO-0
GPIO-2
3.3V
GND
5V
Why did you make it
I designed this development board specially for Spacehuhn's great project: ESP8266 Deauther

What makes it special
Only 80-100mA power usage
Up to 35h of battery life with a 3500mAh 18650 cell
Charging current: 500mA
Included 8dB antenna
Included 2 acrylic case
7 GPIO breakouts and 3.3 and 5V output
4 LEDs to indicate battery status in real time
Power button: Click to turn on, double click to turn off
Protection: short, over charging, over discharging, temperature, polarity
Disclaimer
Use it only for testing and educational purposes against your own devices!
I don't take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don't violate any laws.

WiKi

https://github.com/spacehuhn/esp8266_deauther/wiki

Design files and schematic

https://github.com/lspoplove/DeautherOLEDV4

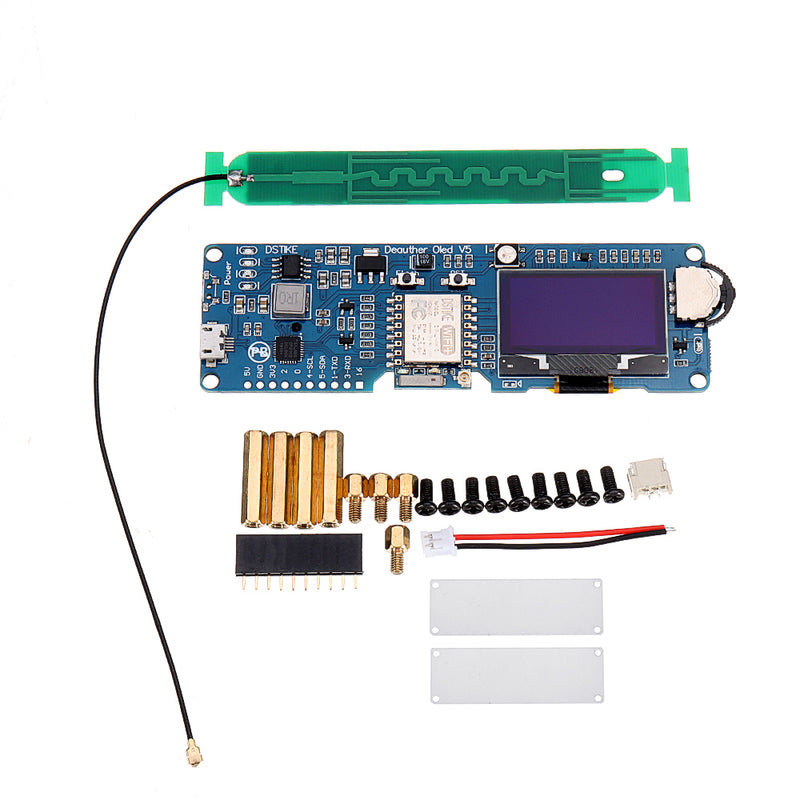

Package Included:
1 x DSTIKE WiFi Deauther OLED V5 ESP8266 Development Board
1 x 10pin Header
1 x 8dB Antenna
8 x Scew
4 x Long Support
4 x Short Support

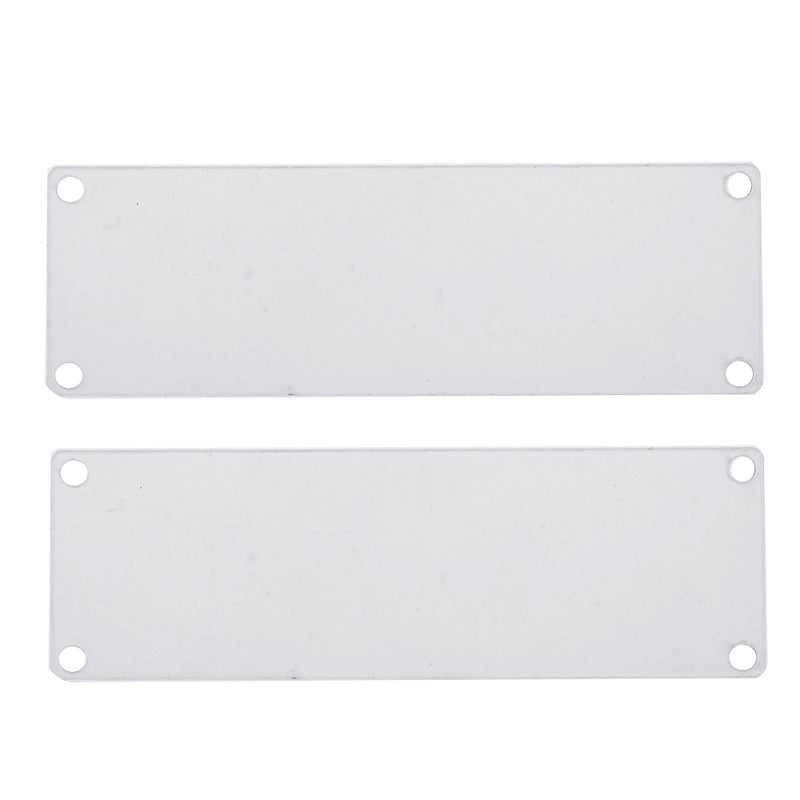

2 x Arcylic Case
1 x Battery Connector
