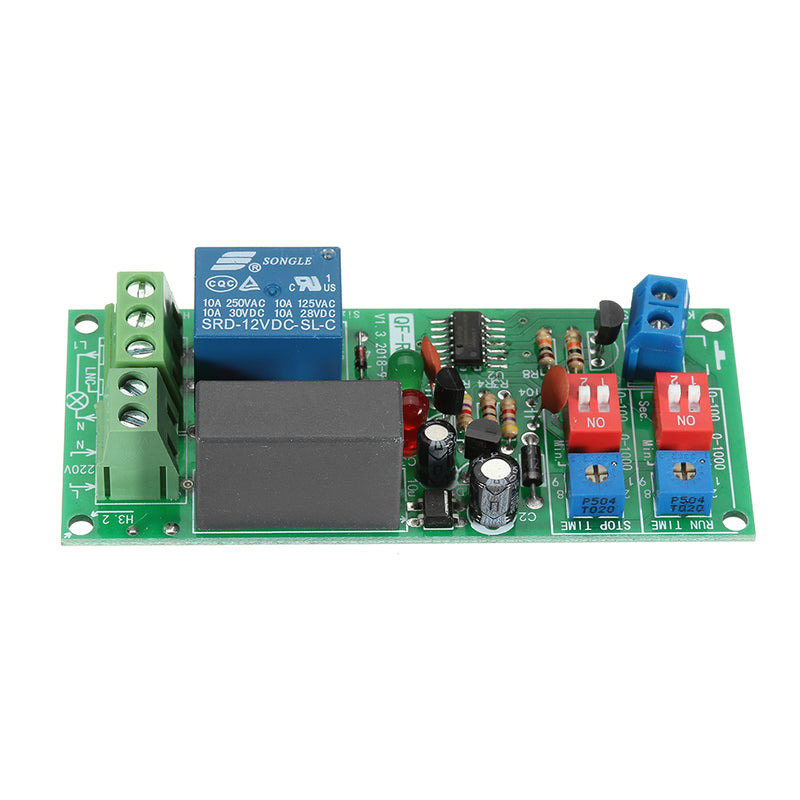

Features:
1. With the start / stop function, after the start of the module into the infinite loop mode, the relay work in accordance with the set time.
2. It is a timer relay module with high precision, stable and reliable performance.
3. There is a wide time range that you can set, both "RUN" time and "STOP" time are adjustable.
4. Support start/stop function, module enter an infinite cycle mode after power on, relay works according to the setting run and stop time.
5. It is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test.
6. Widely used on timer operating equipment, machine repetitive test circuit,fish tank intermittent pump, etc.
Specifications:
Working model : press the start button to start the cycle, and then press the start button to stop working.
Start the Cycle mode : On - Off - On - Off - -
Voltage: AC 100V-250V , can be used for 100V/110V/120V/127V/220V/230V/240V power.
Power consumption: <1.0W
Output: Active output, output voltage equals to input voltage.
Max. Output Current: <10A
Input: Passive switch input, green led lights up after turn on, red led lights up after stop
Time Range: 0.5 seconds -1000 minutes
Time Accuracy: Max. range value*0.001 (resolution of 1000 ).
Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop
- starting the input is not necessary.You can connect the two terminals 2 terminals with a short wire and then the board will cycle infinitely loop ( no buttons)after power on.

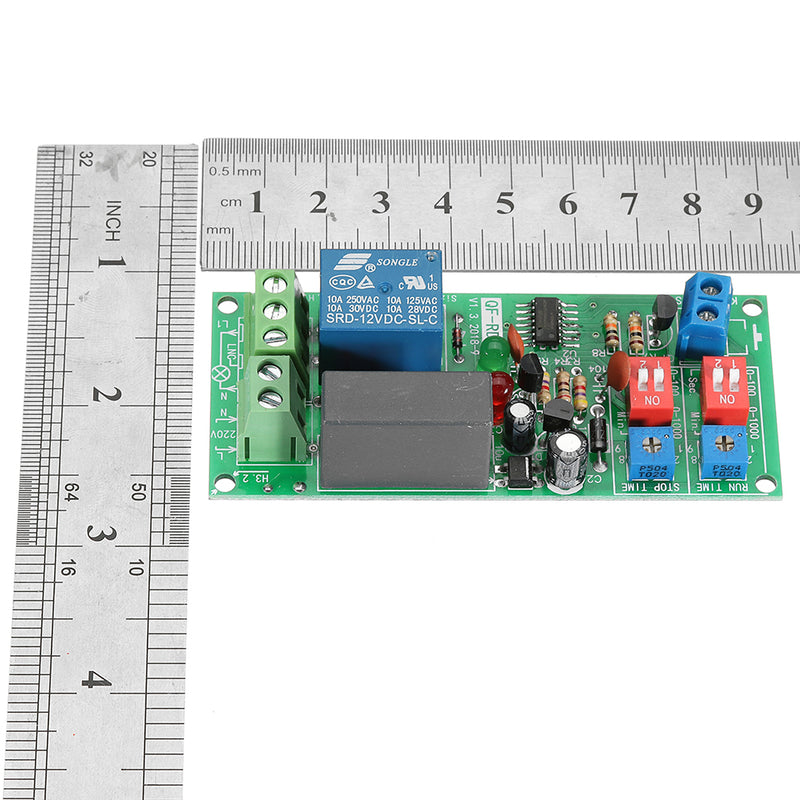

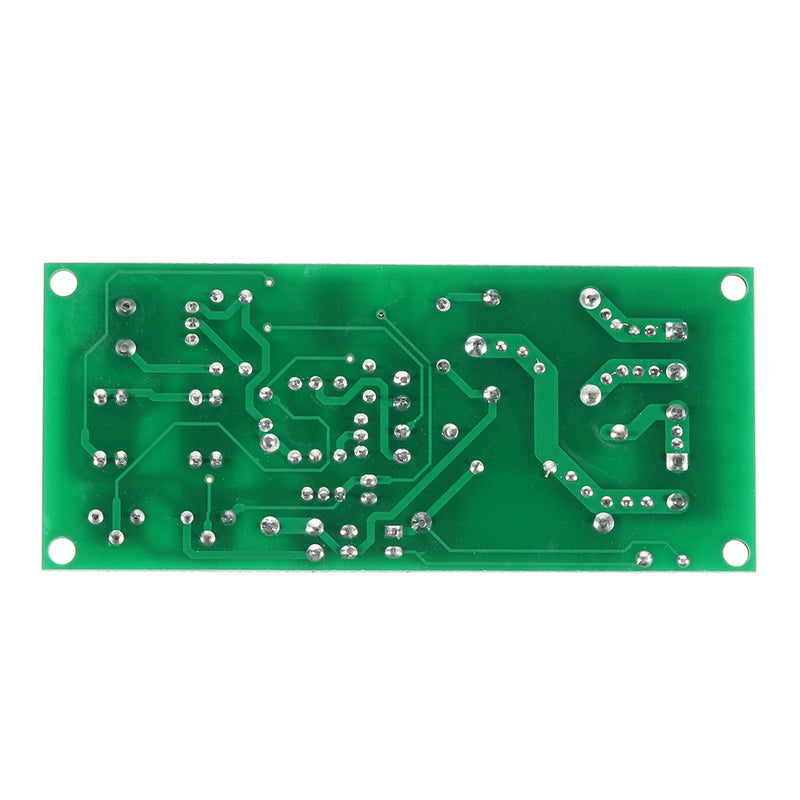

Size: 88 x 38 x 22mm / 3.46 x 1.49 x 0.86"
Mounting Hole Spacing: 83 x 33mm / 3.26 x 1.3"
Mounting Hole Diameter: 3.2mm / 0.12"

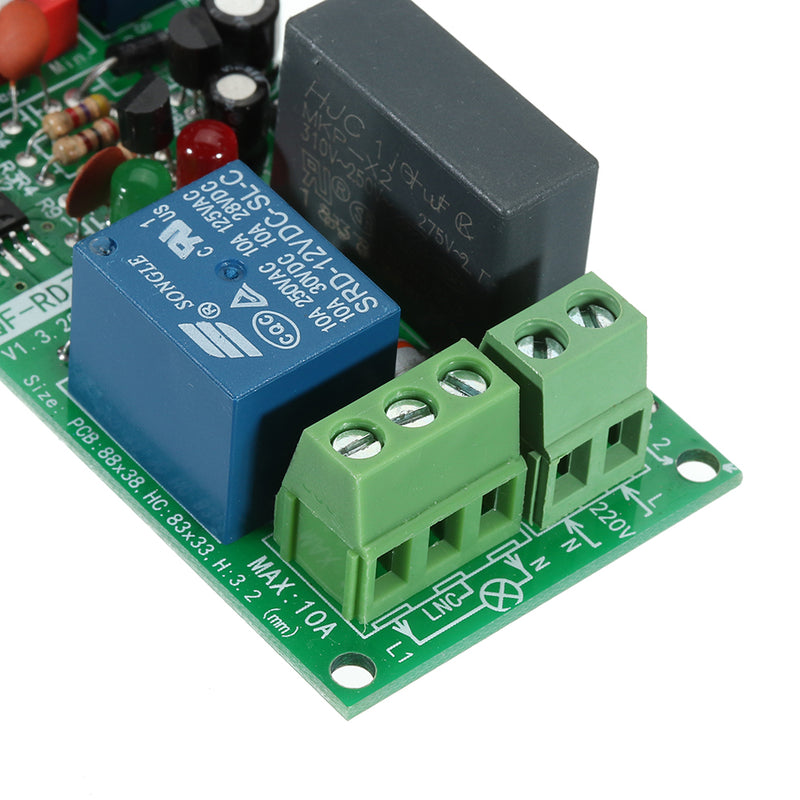

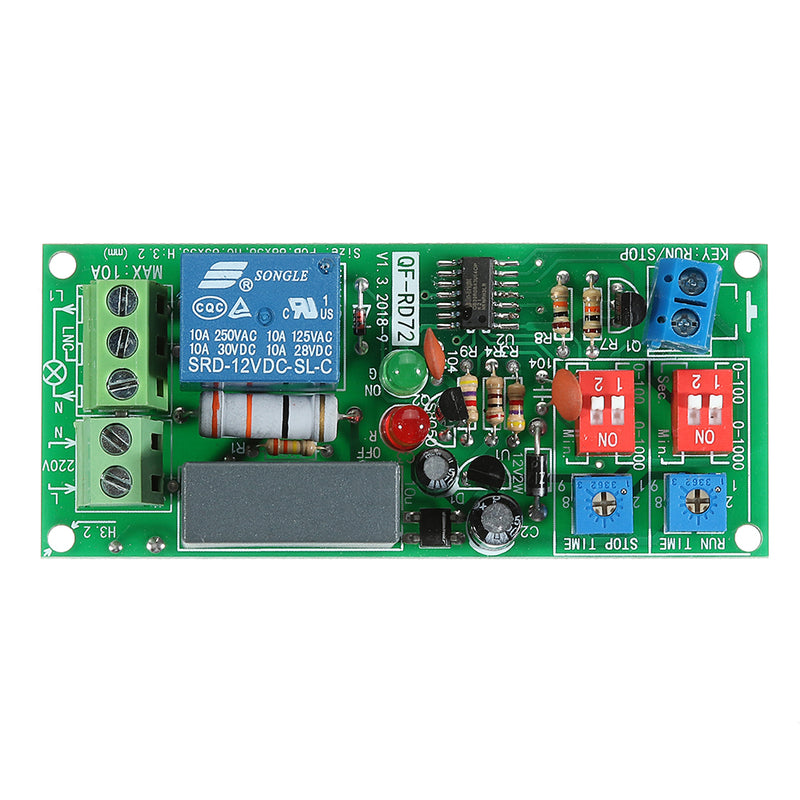

Terminal:
-->Ouput N, load N line
-->Ouput: L1, load L line
most appliances do not need to strictly distinguish the LN line
-->LNC L line output normally closed, generally do not connect.
Operating Instructions:
Time can be set when the board is powered on or powered off.

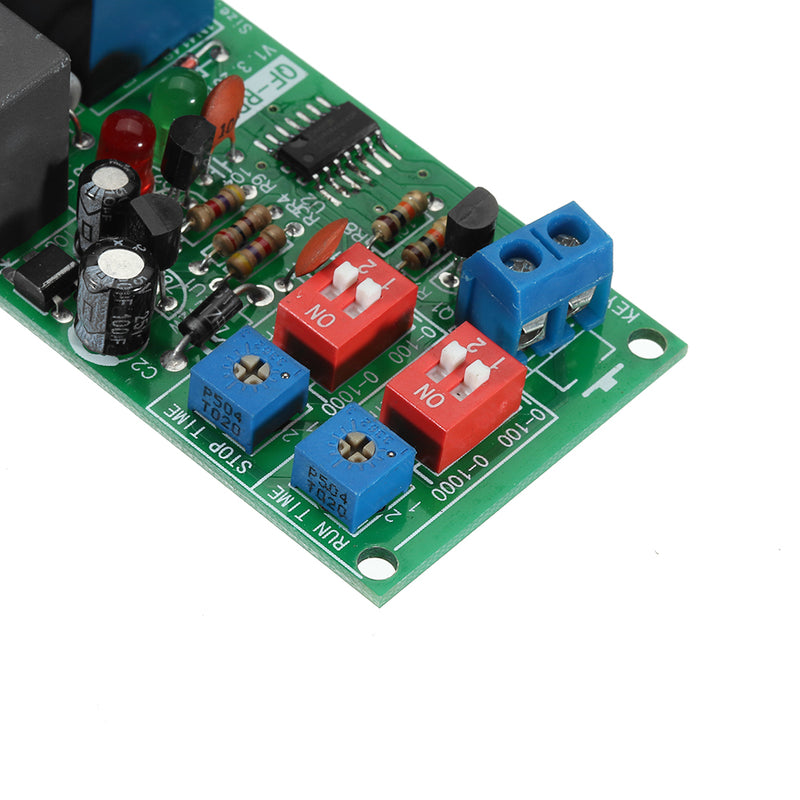

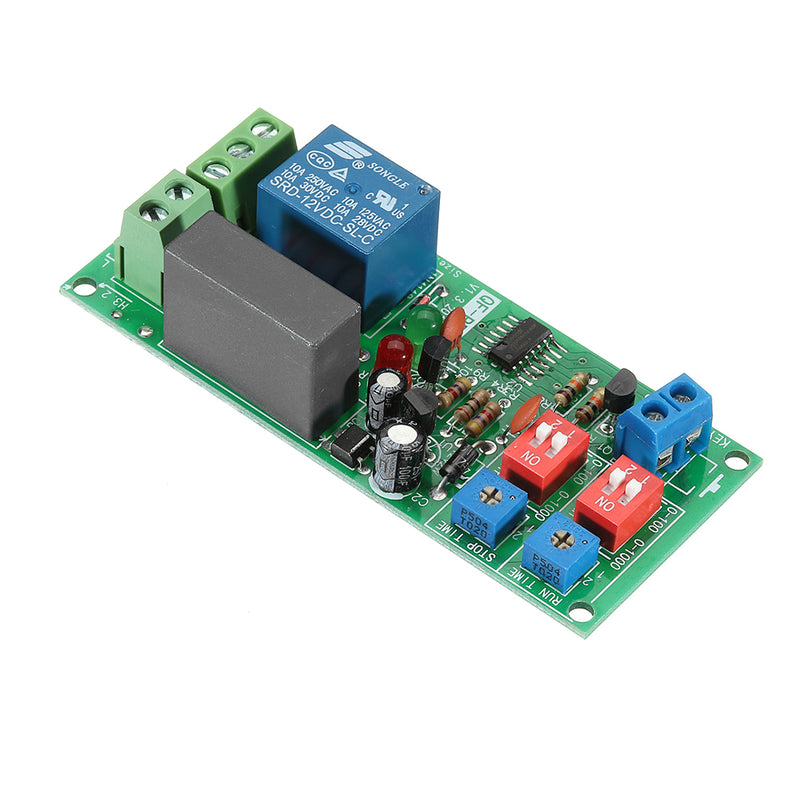

1. Set Run Time (ON time setting):
RUN TIME under the identification of the potentiometer adjustment time, clockwise for the increase in length, counterclockwise to shorten the length of time.
The red switch below can set time range(left, 0-100 or 0-1000) and unit(right, Sec. or Min.)
Potentiometer allocated code switch set to the left time range. The adjustable range of the adjustable resistor is 0-100; the dial range is 0-1000.
The potentiometer allocated code switch unit set right. Dial down to Sec. indicating unit for seconds; dial up to Min. to indicate unit for minute.

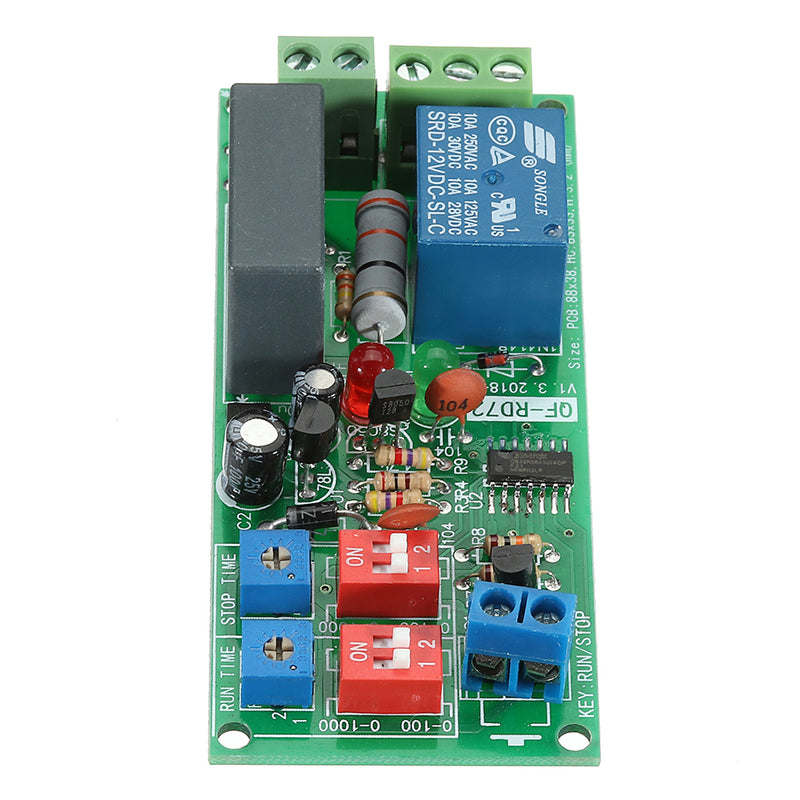

2. Set Stop Time ( OFF time setting ):
OFF TIME under the identification of the potentiometer adjustment time, clockwise for the increase in length, counterclockwise to shorten the length of time.
Adjust the STOP TIME potentiometer clockwise to increase, counterclockwise to decrease.
The red switch below can set time range(left, 0-100 or 0-1000) and unit(right, Sec. or Min.)
Potentiometer allocated code switch set to the left time range. The adjustable range of the adjustable resistor is 0-100; the dial range is 0-1000.
The potentiometer allocated code switch unit set right. Dial down to Sec. indicating unit for seconds; dial up to Min. to indicate unit for minute.

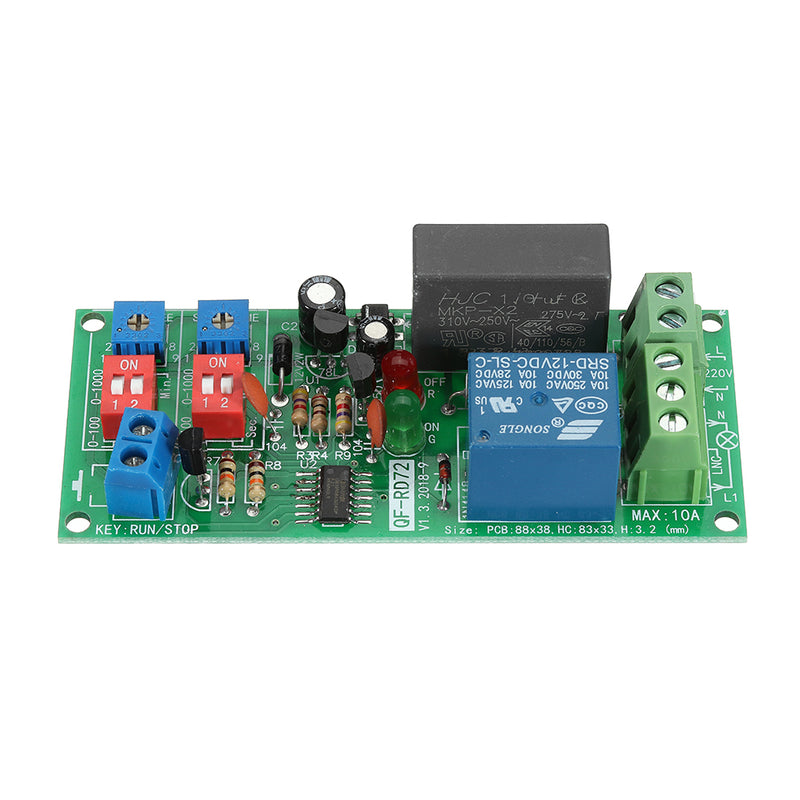

3. Start Button(Not included):
Connect a momentary push-button switch and press it, then green LED lights up indicating it is working. The board would automatically run according to the setting run time and stop time, infinite cycle.Press the start button again, then red LED lights up indicating it stops.
Access to the reset button, click, switch to the green light, indicating that the running state, the module will automatically set in accordance with the running time and the length of time to stop working, infinite loop. Click the start button again, the module will switch to red light, said to be in a stopped state.
4. Time Setting Example:
Requirement: Run for 20 seconds, stop for 30 minutes, infinite loop cycle ( connect 20 seconds, disconnect 30 minutes ).
Settings Up:
(1)Set run time range down to 0-100;
(2)Set run time unit down to Sec.;
(3)Set run time potentiometer to 20 position, namely the position of 20/100 from left;
(4)Set stop time range to 0-100;
(5)Set stop time unit to minutes;
(6)Set stop time potentiometer to the position of the 30 , namely the position of 30/100 from left;
The position of potentiometer can also be set using the method of measuring voltage. Minimum is 0V, maximum is 5V.20/100 * 5 V = 1.0 V; 30/100 * 5 V = 1.5 V.
Note:
1. Use a start button whose current is more than 0.1A
2. AC power, beware safety,Electric Shock Alert, start button wire has high voltage, be careful please!
Application:
For cycle control, or equipment, product aging test repeated power on/off.
Package Included:
1 x Dual Time Adjustable Cycle Delay Timing Relay
