Features:
1. Wide analog input voltage range from -5 V to +5 V.
2. The low on-resistance has three typical value of different VEE.
3. Logic level conversion: enables 5 V logic to communicate with ±5 V analog signal.
4. ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; CDM JESD22-C101E exceeds 1000 V.

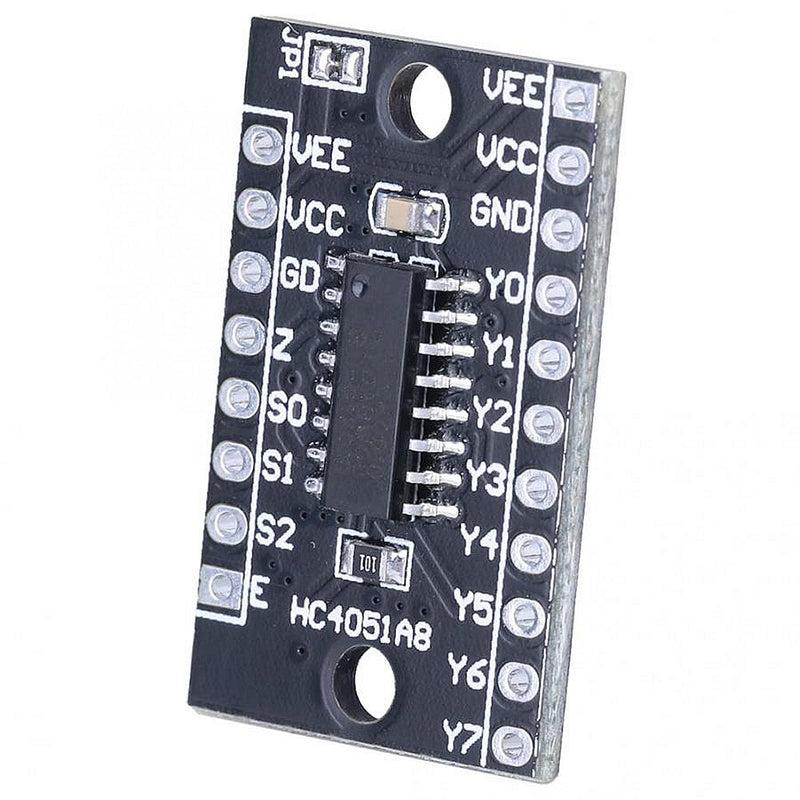

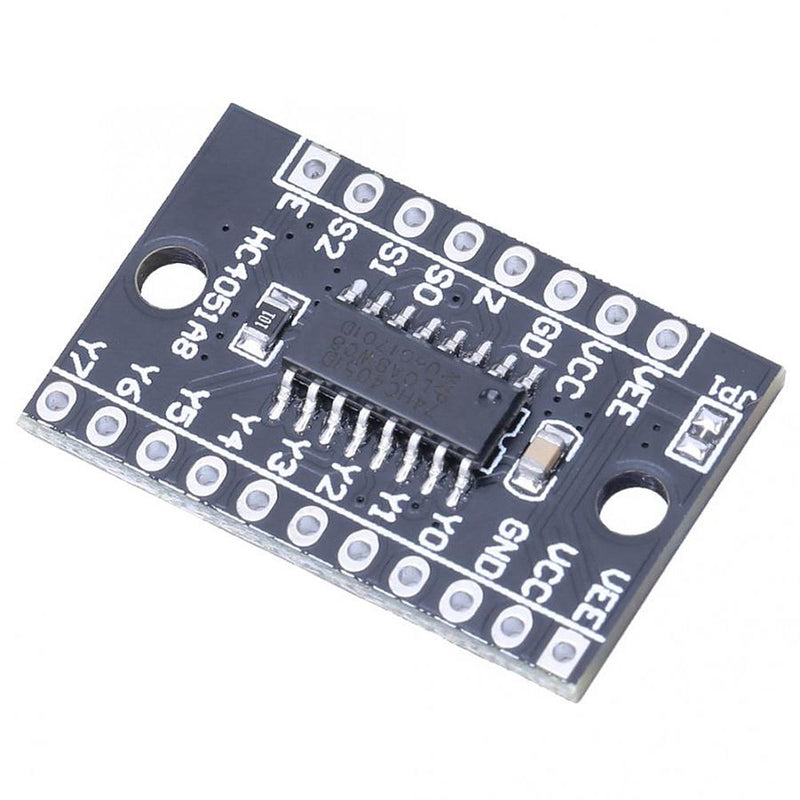

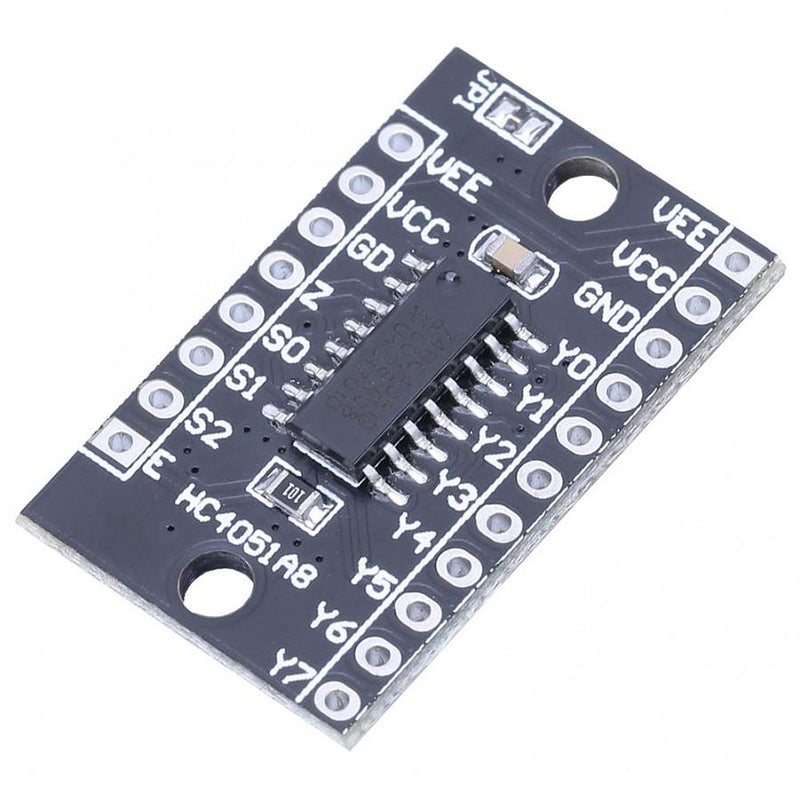

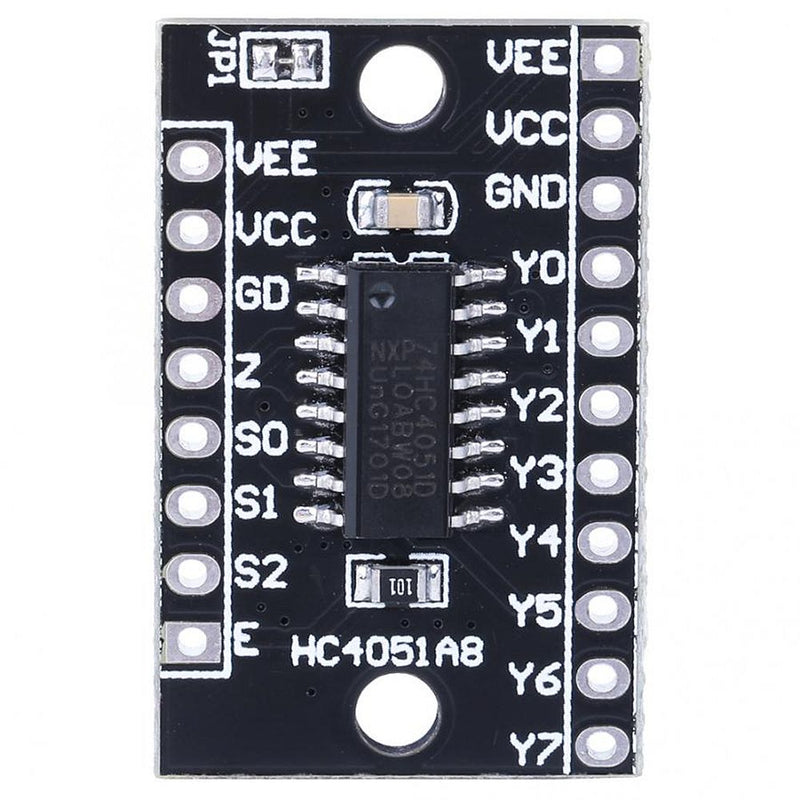

5. The HC4051A8 is a single-pole, eight-throw analog switch (SP8T) for analog or digital 8:1 multiplexer/demultiplexer applications.
6. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), one common input/output (Z) and one digital enable input (E).
7. When E is high, the switch is turned off. The input includes a clamp diode. This enables the use of a current limiting resistor to connect the input to a voltage that exceeds VCC.
Specification:
Input Analog Voltage:-5~+5V
Low On-Resistance:
- VCC is 80Ω (typical) - VEE = 4.5 V.
- VCC is 70Ω (typical) - VEE = 6.0 V.
- VCC is 60Ω (typical) - VEE = 9.0 V.
Logic Level Translation: Communicate 5 V Logic with ±5 V Analog Signals.
Break before Close:Built-In
ESD protection:
- HBM JESD22-A114F exceeds 2000 V.
- MM JESD22-A115-A exceeds 200 V.
- CDM JESD22-C101E exceeds 1000 V.
Size:27.94 x 17.78 x 3.3mm / 1.1 x 0.7 x 0.13in(Apply to bread board)
Weight: 1.8 g / 0.06 oz(approx.)
Applications:
For Breadboard
Suitable For MEGA2560
For MCU ARM AVR ADC
For Raspberry Pi
For PLC RS485
For Analog Acquisition
Analog Multiplexing And Demultiplexing
Digital Multiplexing And Demultiplexing
Signal Gating
Package Included:
1 x Analog Multiplexer Demultiplexer Module
