Description:

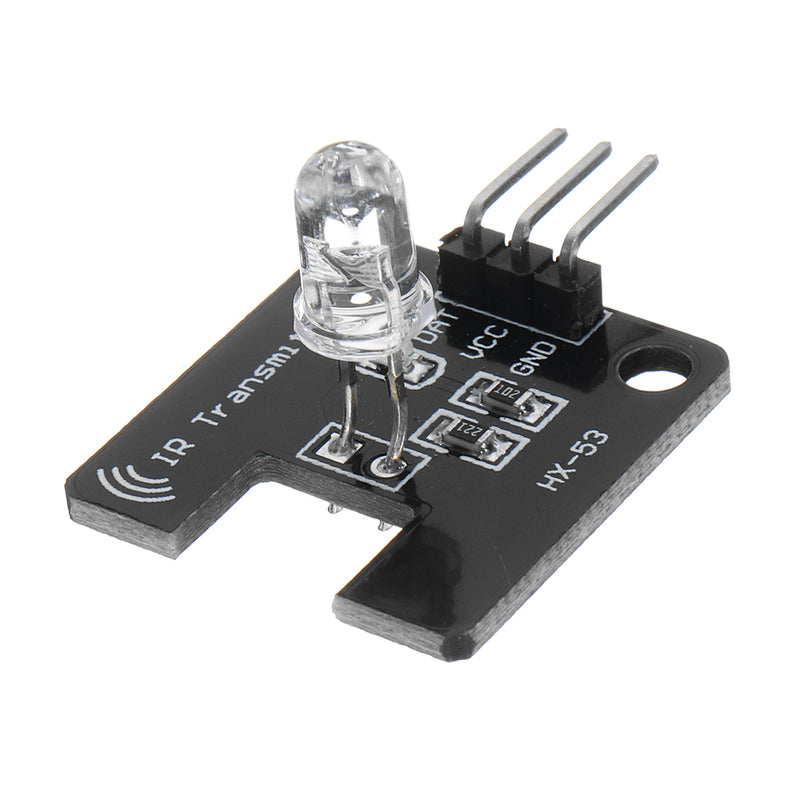

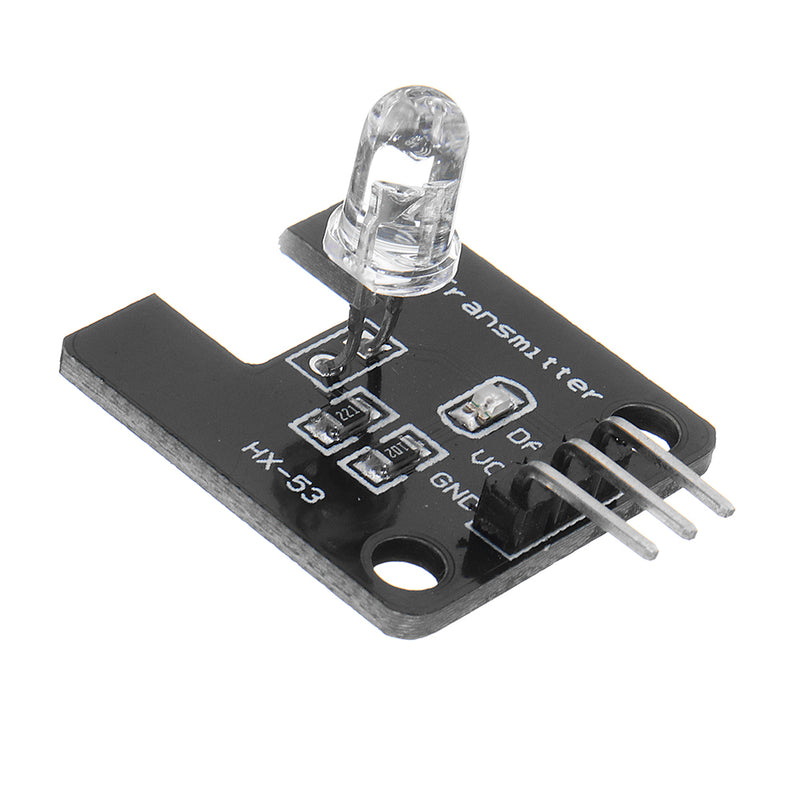

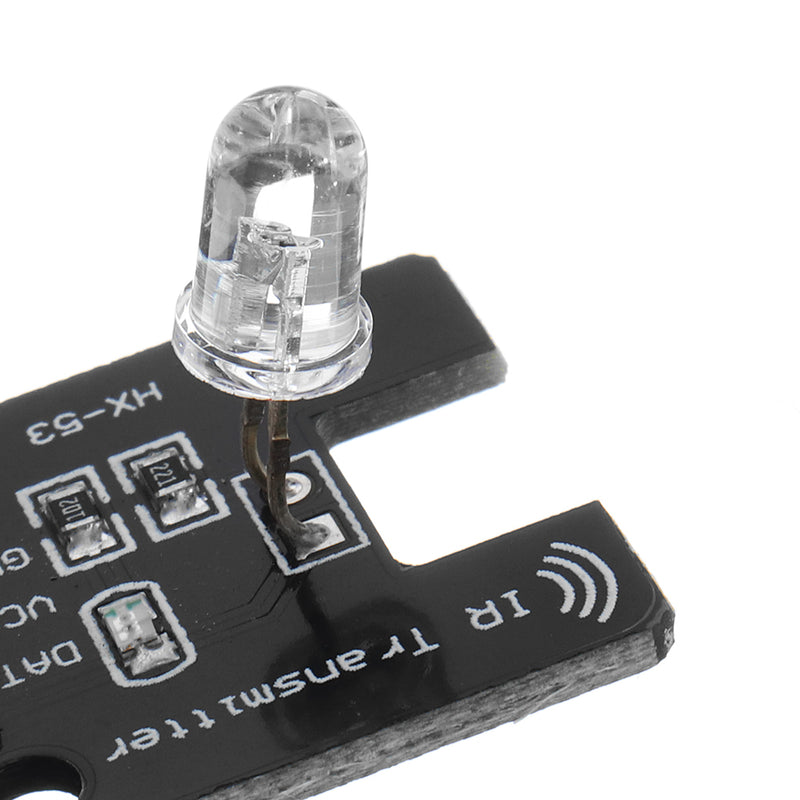

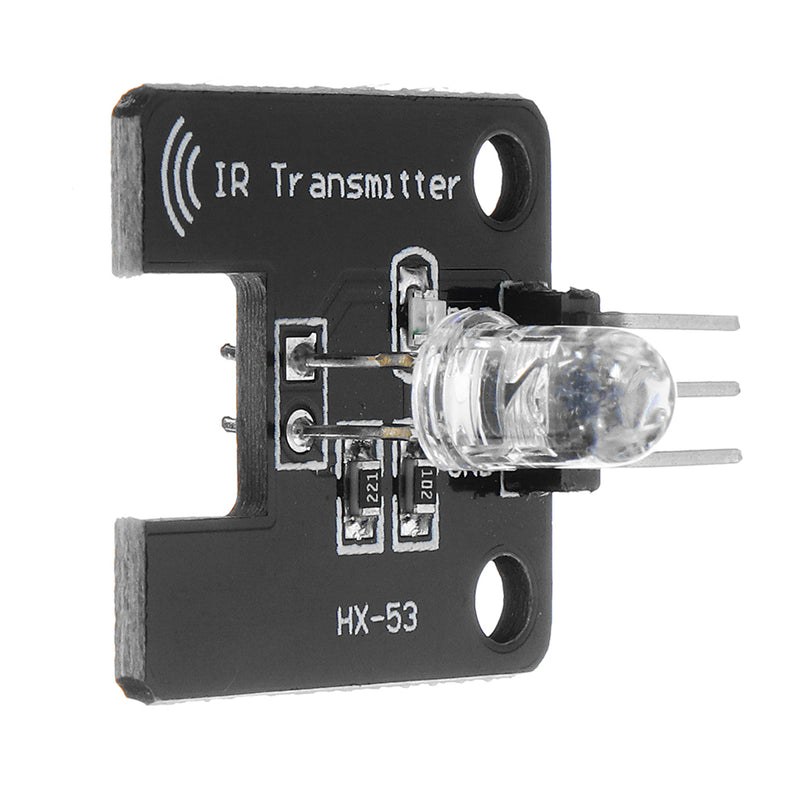

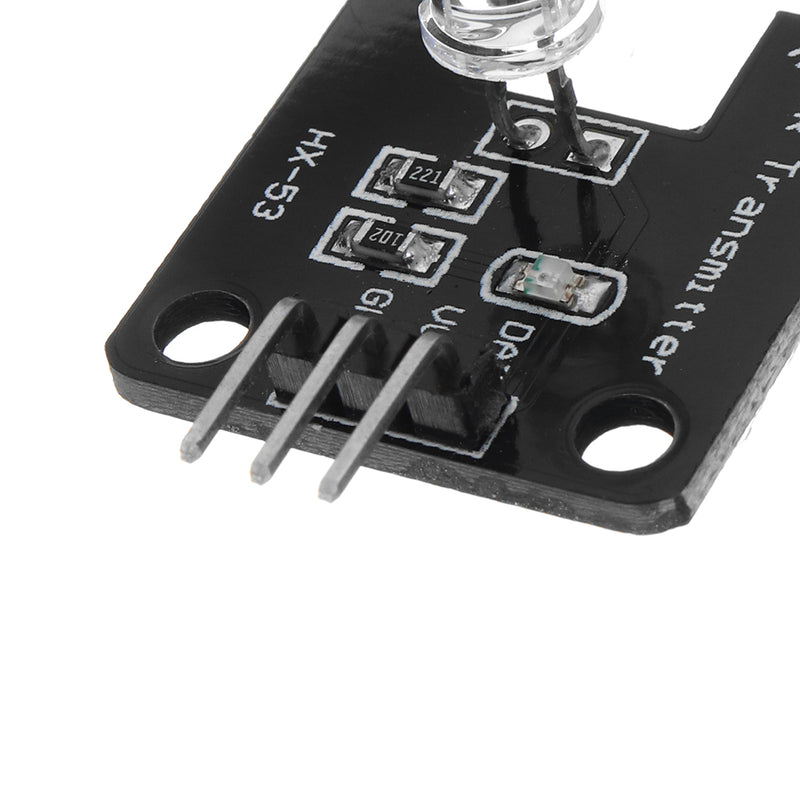

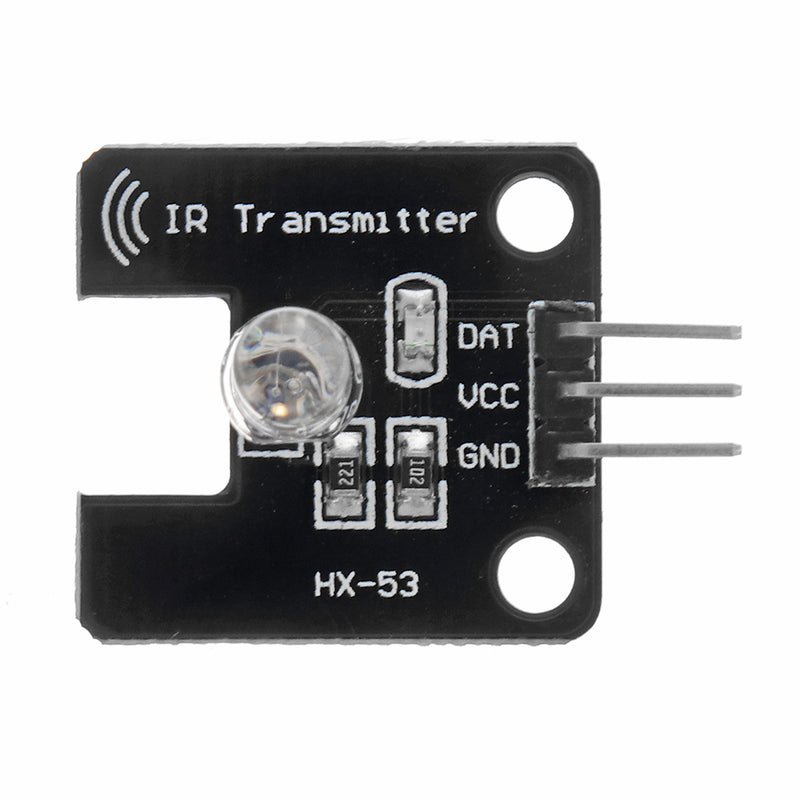

The infrared emission module is for module, port compatible sensor expansion board.With the transmitting state indicating lamp, convenient debugging.
Specification:
Supply voltage: 5V
Working environment: -25~+85°C
Storage temperature: -30~+100 °C
Wavelength: 940nm
Module size: 13.7mm × 27.8mm
Module weight: 5g
Signal type: digital signal
Infrared center wavelength: about 850nm-940nm
Infrared emission angle: about 20 degrees
Infrared emission distance: about 1.3 meters (5V 38Khz)
Package Included:
1 x Infrared Emission Module
