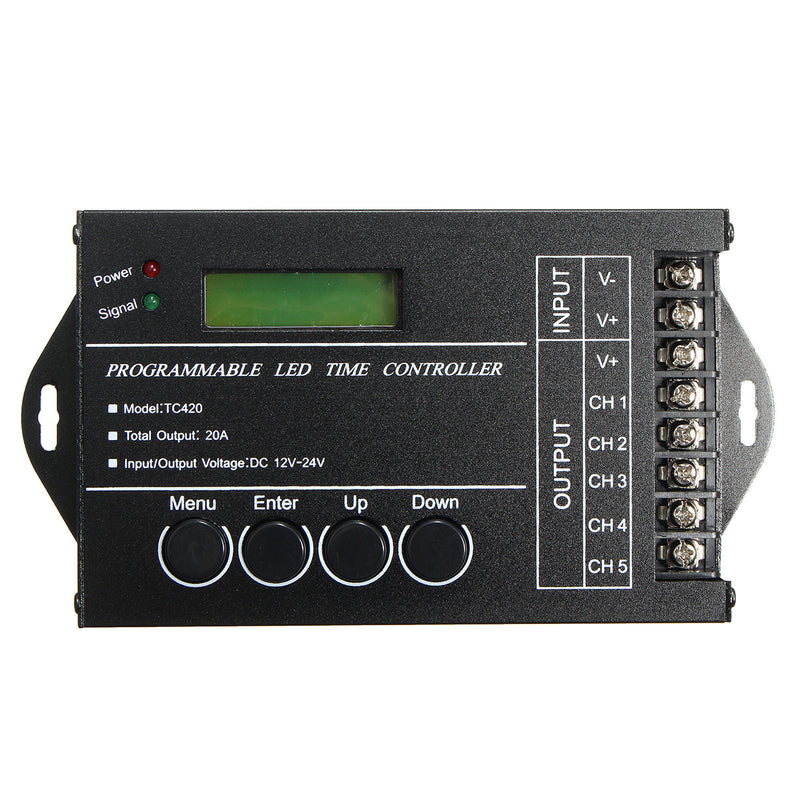

Name: Programmable LED Time Controller DC12V/24V 5 Channels Dimmer RGB
Brand: Banggood
SKU: U2I-BG-1225176
Price: 8,647.00 INR
Availability: InStock

SKU: U2I-BG-1225176

Share this product

Feature:

Material:Metal
External Dimension: 123mm*78mm*27mm.
Color: Black
Can be applied to plant lights, light box advertising, the stage, home decoration, etc.

Product description:

There is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC.Then through the USB port to download required schedule to the controller. The upper PC in addition to the function of editing schedule mode, it also can be setup time for the controller because of synchronous clock function of upper host.
If user want to see the schedule mode effect after editing, they can use fast sowing function of upper.Because there is no delete function of upper host, so the mode name display space will come into blank as long as you execute delete.This controller can control load of lead changing effect no more than five channels.

Main Features:

* Working Temperature: -20-60°C.
* Supply voltage: DC12-24V.
* Output: 5 channels.
* Output: Five COMS drain-open output.
* Max Load Current: 4A each color.
* Connection Mode: Common anode.
* Features: LED Time Dimmer
* Max. Load Power: 480
* Wattage: 240W
* Maximum output current: 20A
* Static power consumption: < 0.5W

Package included:

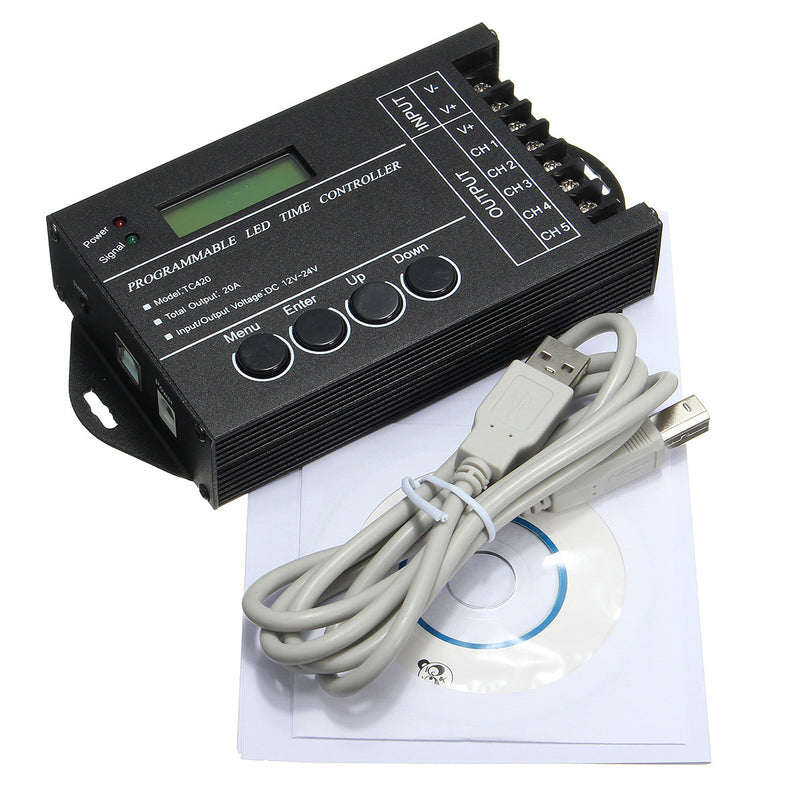

1 x LED Time Controller & USB-cable(as picture)
1 x User Manual
1 x CD-ROM
