Description:

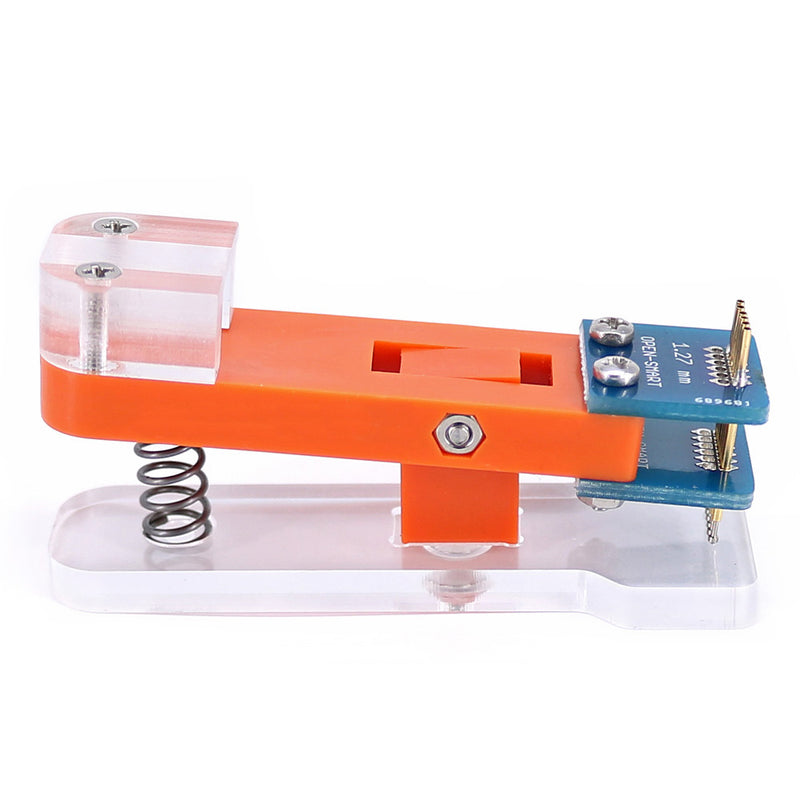

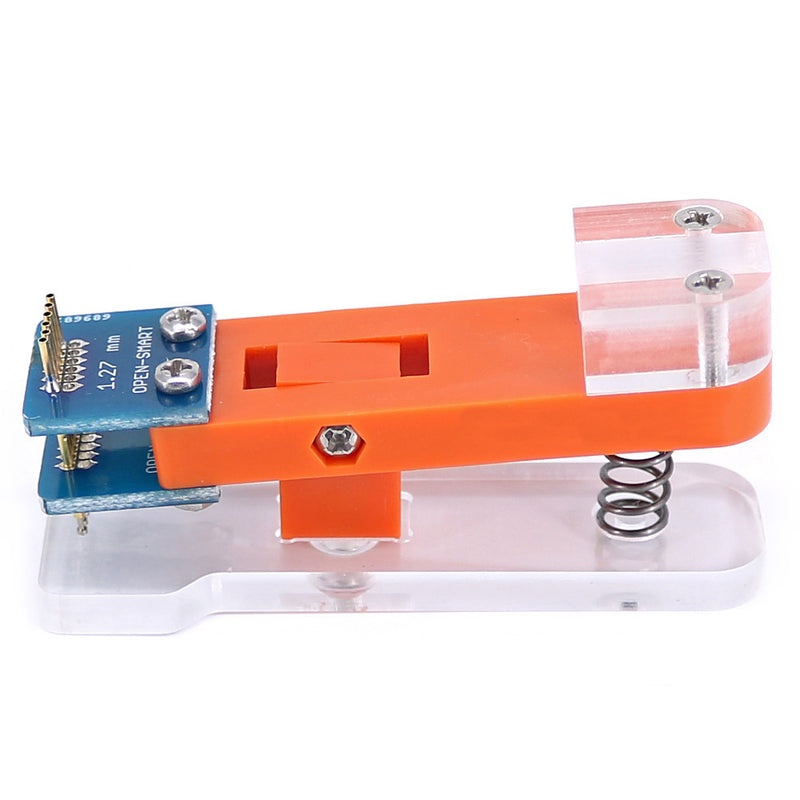

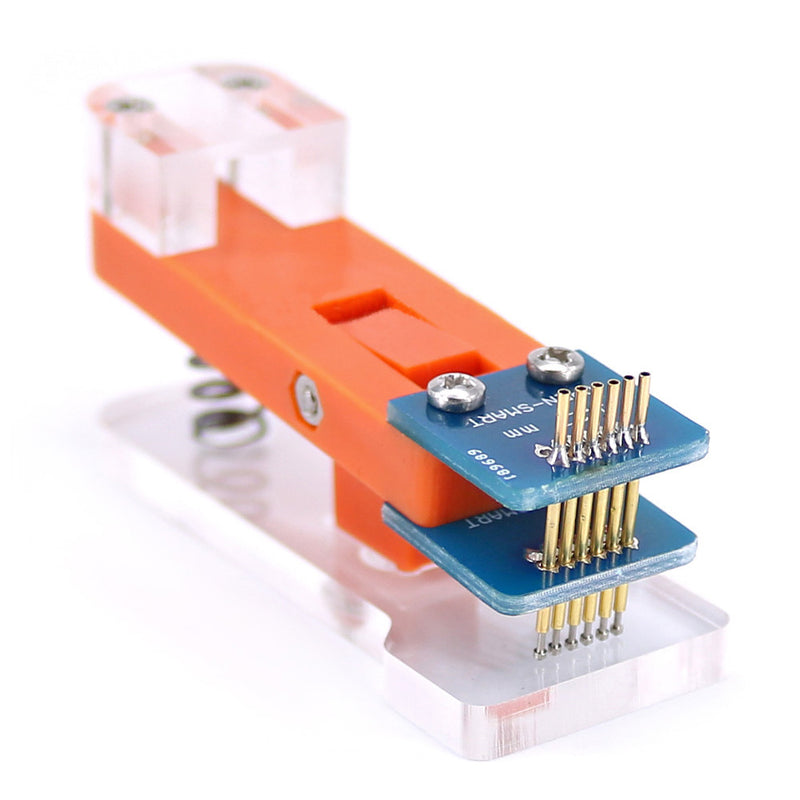

This is a test fixture dedicated to module testing and code burning. It is suitable for modules and boards without soldering pin headers and can be used to upload code to MCU development board without soldering pin headers.
Feature:
- Number of Pins: 1X6P
- Pin pitch: 1.27mm
- Probe head type: P50-E2(cone), Nickel-plated, durable
- Probe head applicable pad: through pad, surface pad
- Probe receptacle type: R50-3C
- Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)
- Operating current: Each pin 1A (max)
- Operating voltage: 30V (max)
Package includes:
1 x Test Fixture
