Product Usage:
The width RF low power amplifier is suitable for 144MHz (130-180Mz) radio emission learning research. It can output 5.0W@7.2V power when inputting 0.1W, and has high conversion efficiency. The amplifier is equipped with a heat sink for long-term. Stable work.
Technical Parameters:
Operating frequency: 130-180MHz
Input power: 0.1W (20dBm)
Maximum output: 2.5W (34dBm) 5.0V power supply
5.0W (37dBm) 7.2V power supply
8.0W (39dBm) 10.0V power supply (not recommended)
Working voltage: DC5-7.2V
Operating current: 1-2A (determined by output power)

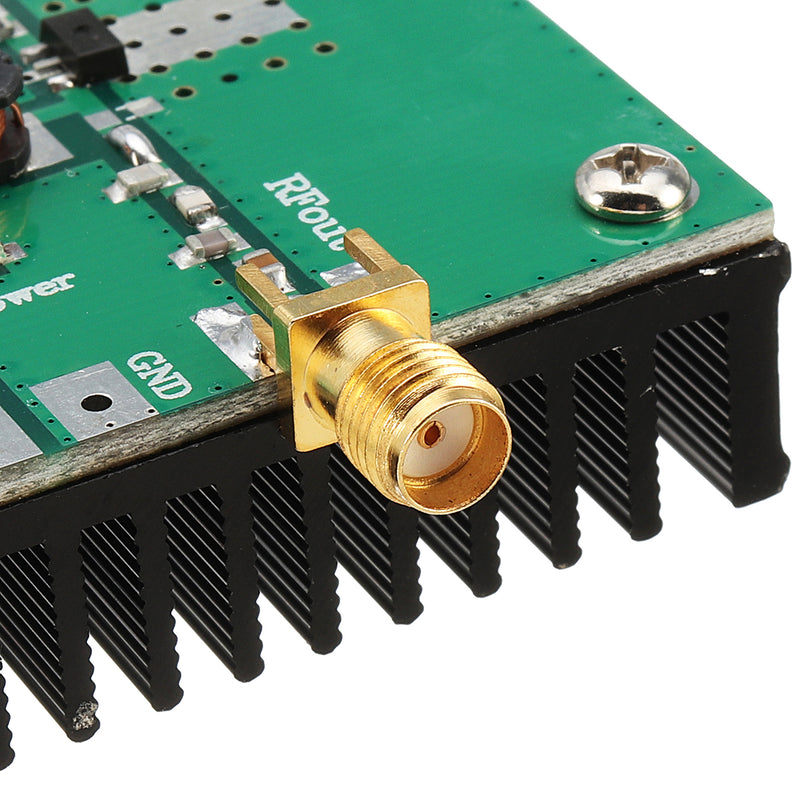

RF connector: standard SMA female

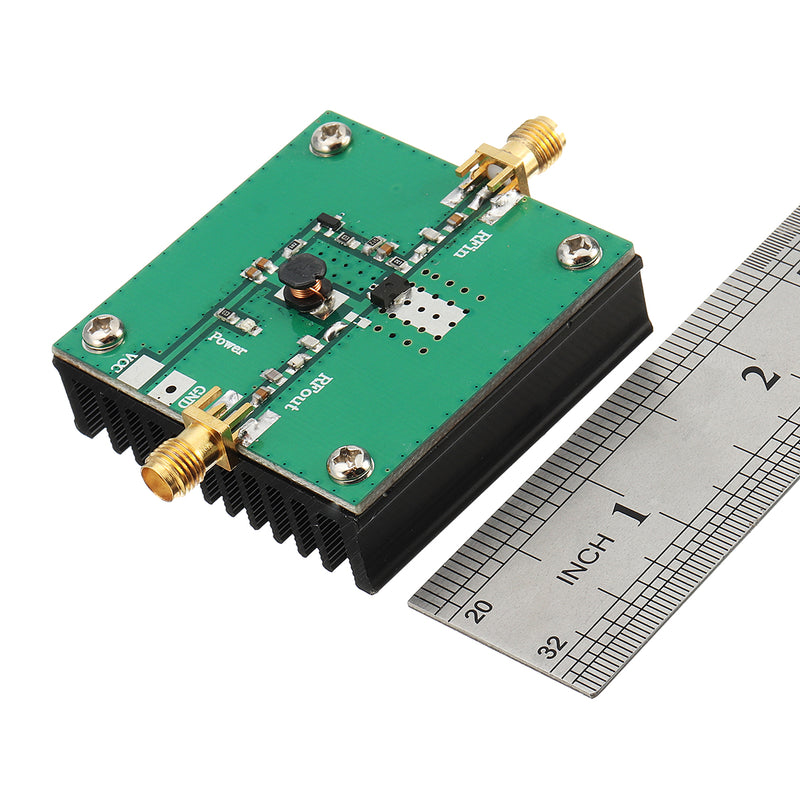

Dimensions: 50*50*15mm
Product weight: 55g (heat sink blackening)
Package included:

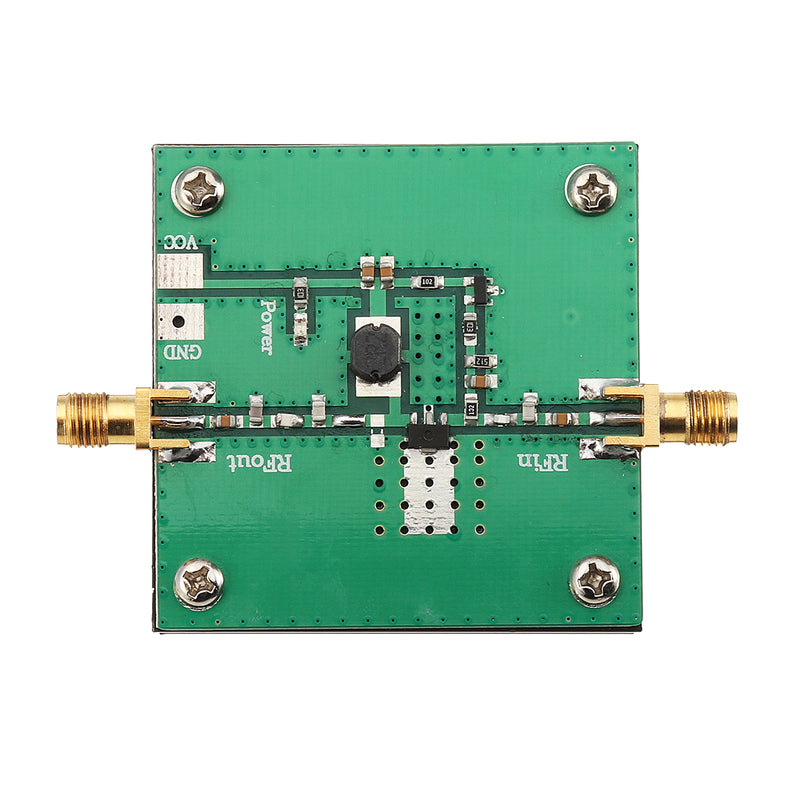

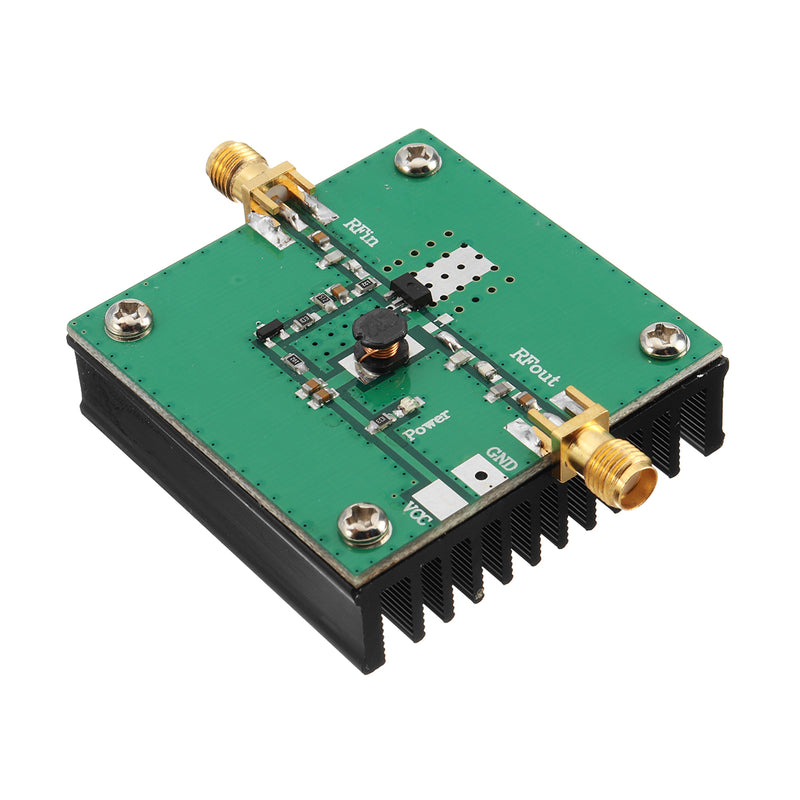

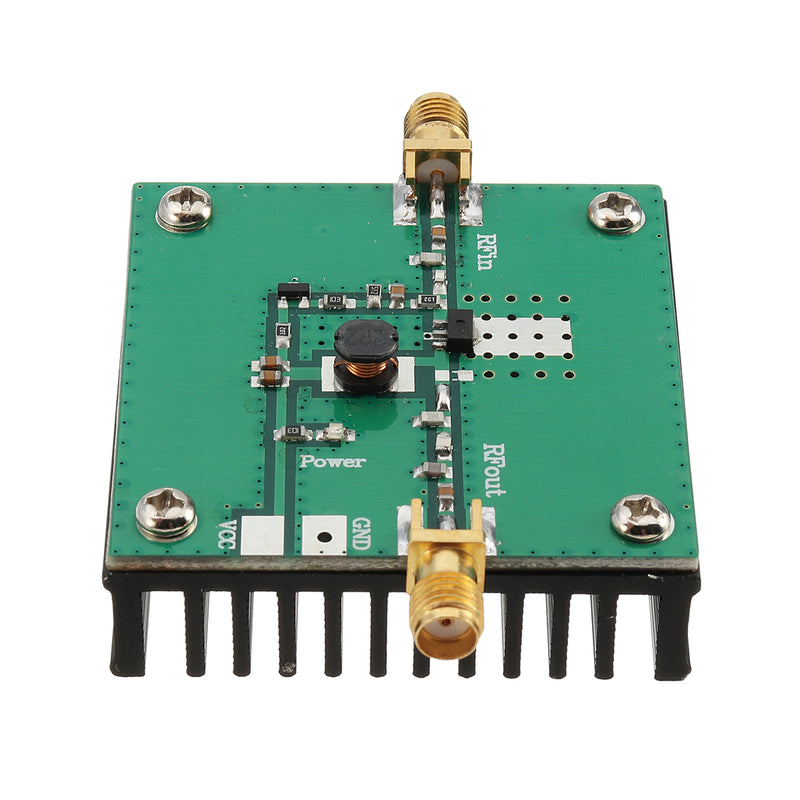

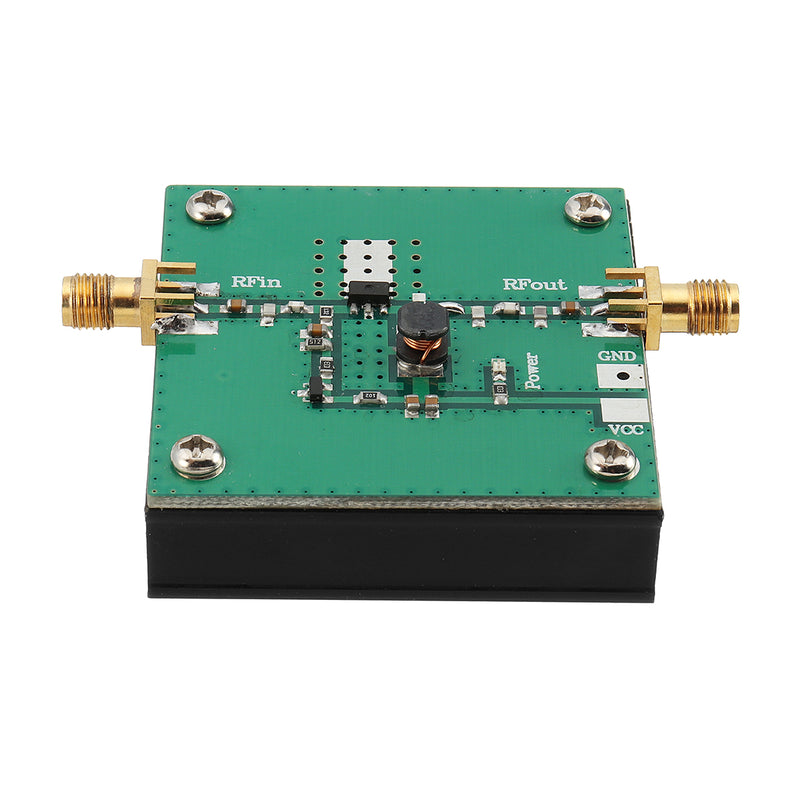

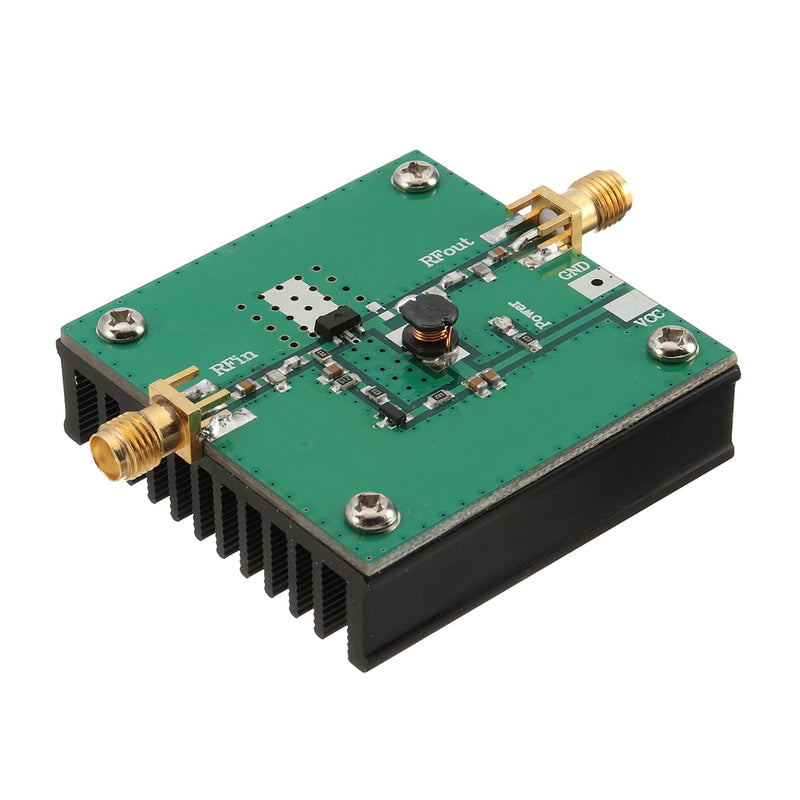

1 x RF 144MHz 5W Power Amplifier
