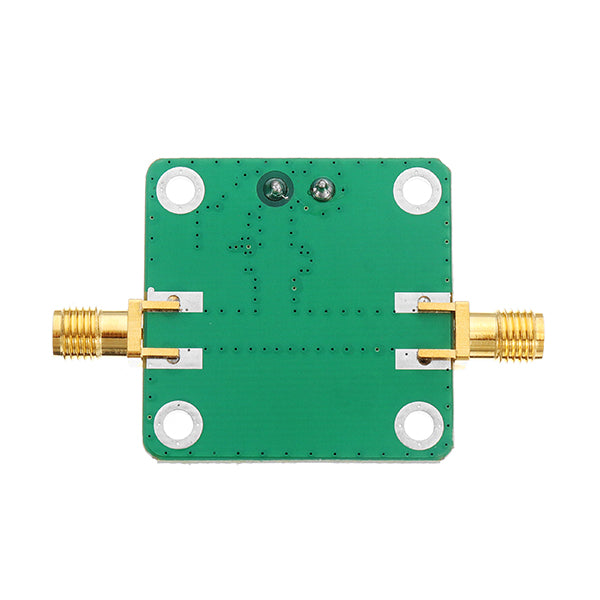

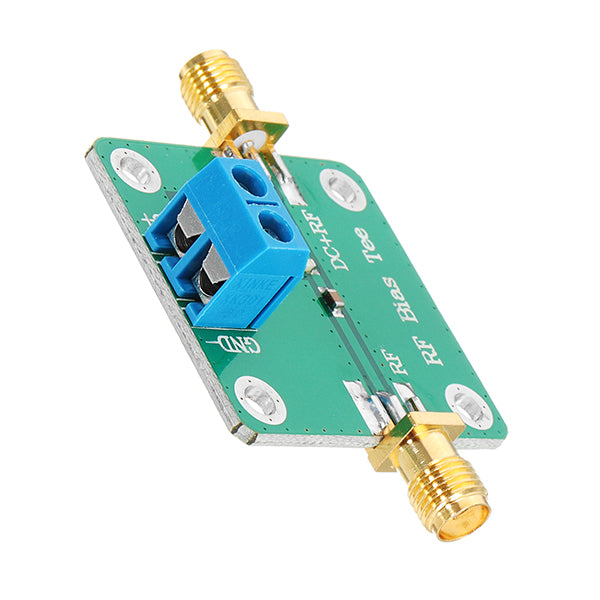

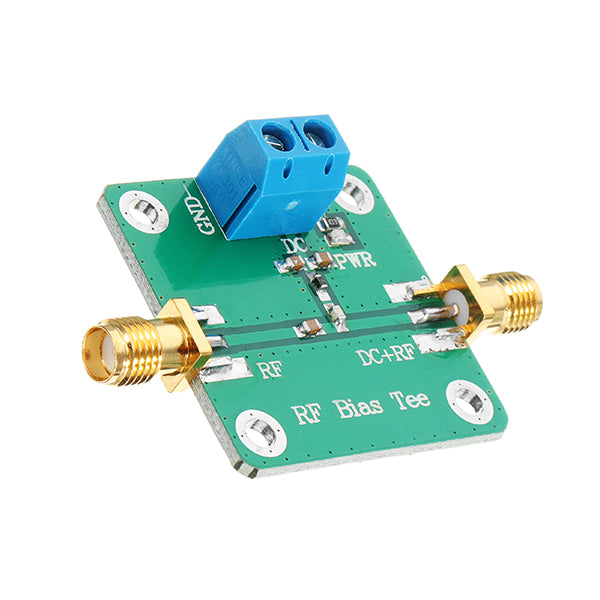

Name: RF And Microwave DC Bias DC Feeder Module 10-6000MHz
Brand: Banggood
SKU: U2I-BG-1283454
Price: 1,859.00 INR
Availability: InStock

SKU: U2I-BG-1283454

Share this product

Use:

1. RF power supply of active antenna
2. The output of the broadband amplifier is straight
3 communication data injected through the RF side

Working parameters:

1. Frequency range: 10 - 6000MHz
2. Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
3. Maximum voltage: 50V
4. Maximum current: 500mA
5. RF connector: SMA-K (outer screw bore)
6. System impedance: 50 ohms

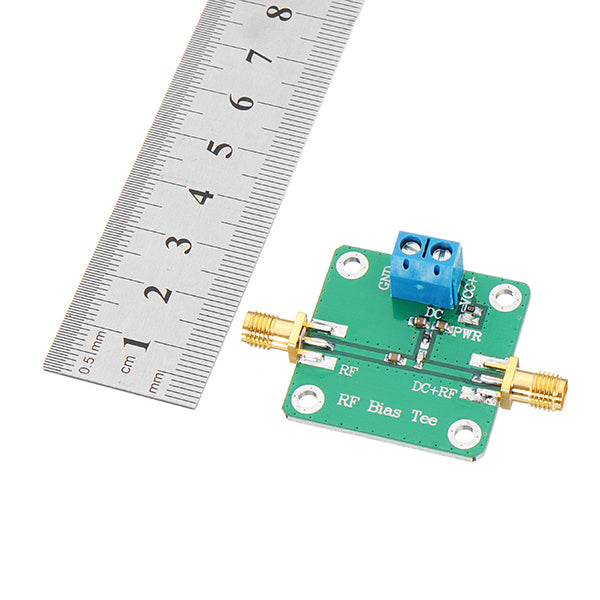

7. Dimensions: 33mmx33mm without connector

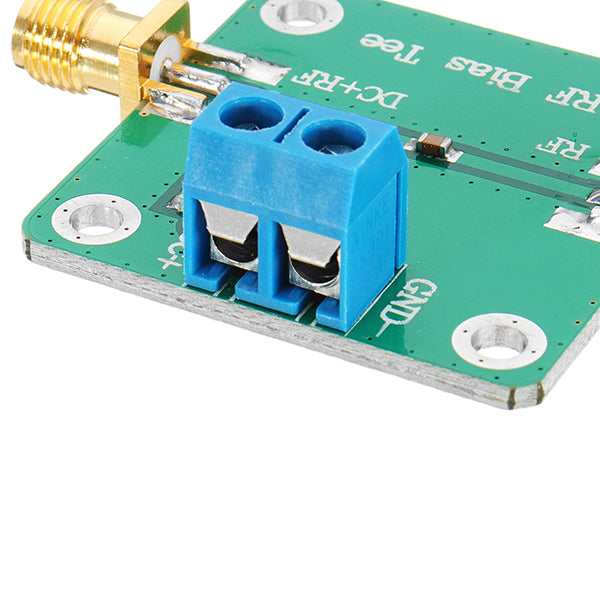

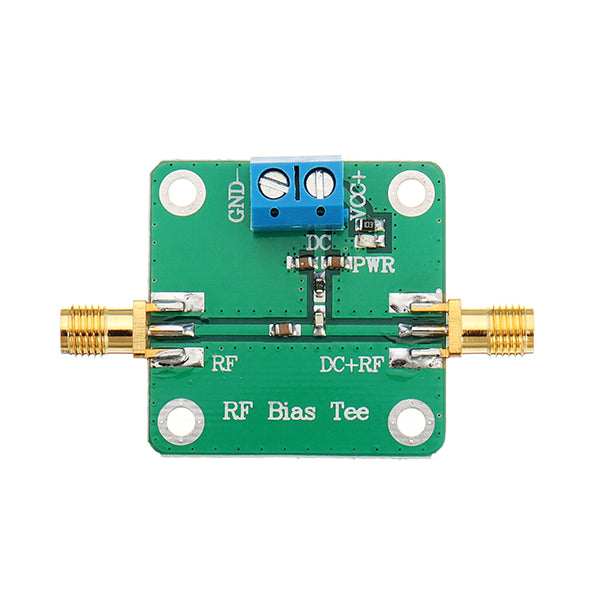

Wiring:

1.DC: external DC power supply
2.RF: RF signal port (this port can only transmit RF signals)
3.RF+DC: RF dc bias (this port can transmit RF and dc bias)
4.GND-: DC powered common ground
5.VCC+: DC power supply

Package included:

1 x RF And Microwave DC Bias DC Feeder Module 10-6000MHz
