Feature:
Name: UAF42 filter

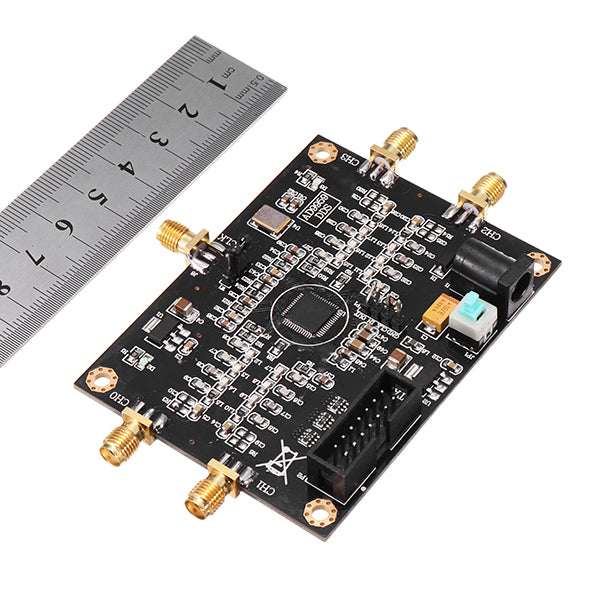

Size: 81x61mm

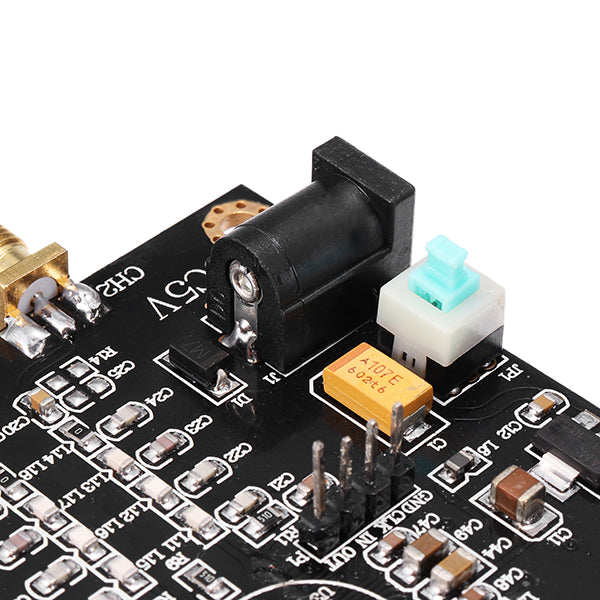

Supply voltage: DC5V
Chip Features:
1. Four 500 MSPS synchronous DDS channels
2. Independent frequency / phase / amplitude control between all channels
3. Frequency, phase and amplitude changes when the delay match
4 excellent channel isolation
5. Sweep function
6. Up to 16 modulation (pin selection)
7. Programmable DAC full-scale current
Chip Applications:
Stochastic local oscillator (LO) frequency synthesis
Phased array radar / sonar
Instrumentation
Synchronous clock
RF source for AOTF (acousto-optic tunable recorder)

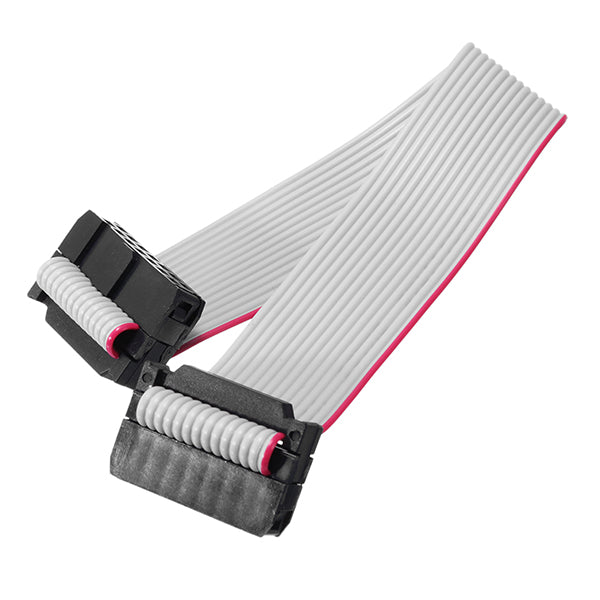

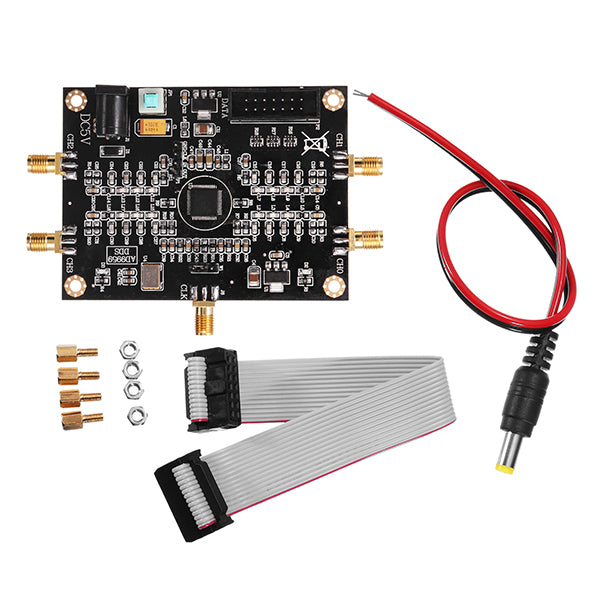

Package inckuded:

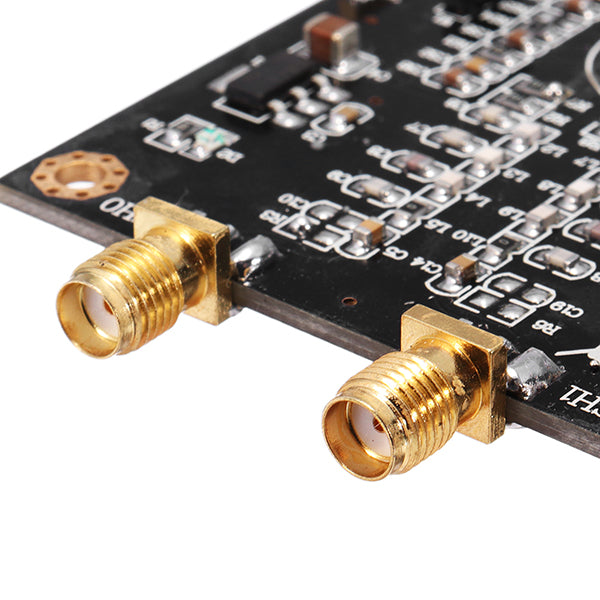

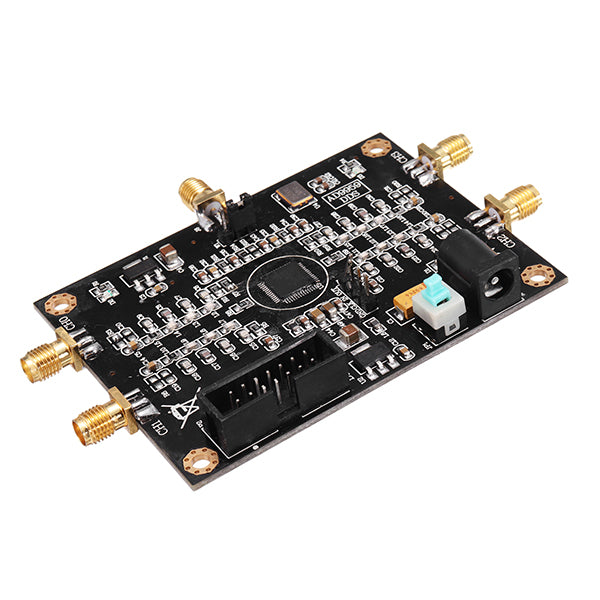

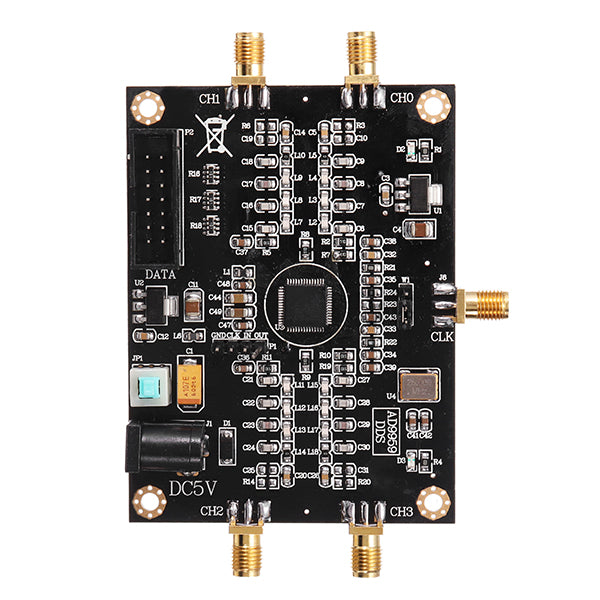

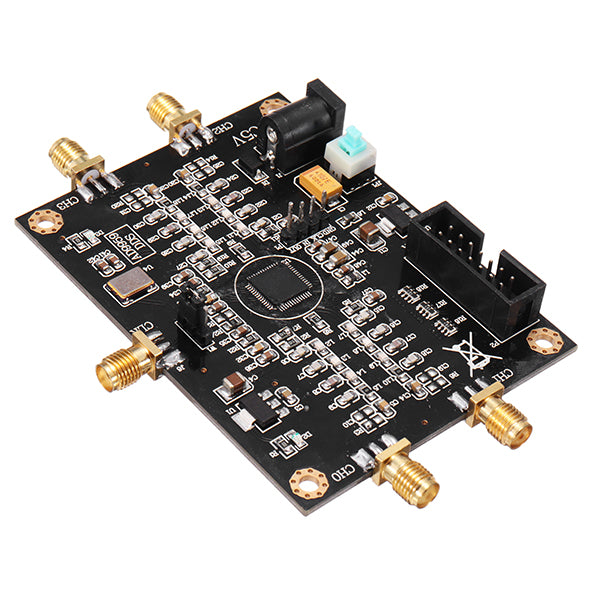

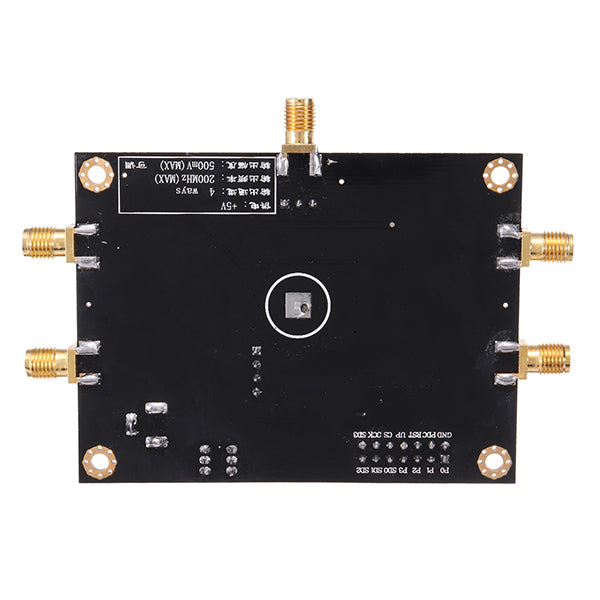

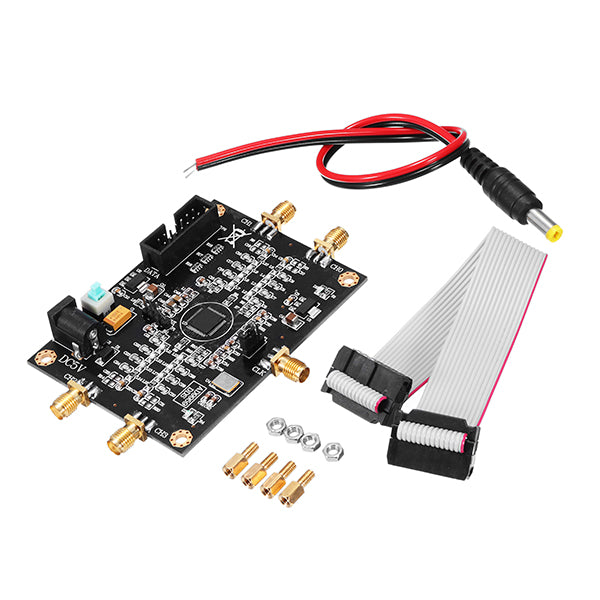

1 x RF Signal Source AD9959 Signal Generator
