TDA7498E Double 160W Power Amplifier Dual Channel Stereo Audio Amplifier Module Support BTL Mode
Save 0
SKU: U2I-BG-1413064
Share this product
Description
Description:
High output power digital amplifier DC 15-36V power supply, with reverse polarity protection When heat sink temperature rises to a certain extent, the cooling fan will work Support BTL mode, 36V 3ohm for single channel with 220W output Two-channel stereo, sound quality is very good Sound quality is very good and it can drive 4/6/8 ohm speakers. It has sufficient and high power output 2 x 160W. It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work.
Features:

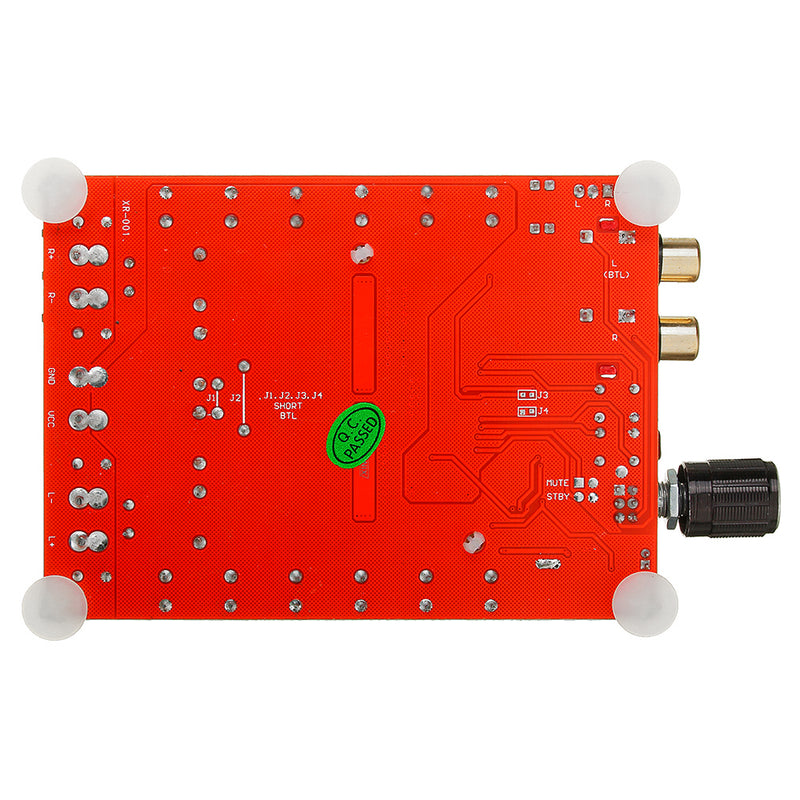

1, High output power digital amplifier. 2, DC 15-36V power supply, with reverse polarity protection. 3, When heat sink temperature rises to a certain extent, the cooling fan will work. 4, Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output. 5, Two-channel stereo, sound quality is very good.
Specifications:
Amplifier chip: TDA7498E Working voltage: DC 15-36V (Recommend 32V, 8A, if power is too small will appear distortion and so on.) Output power: 2 x 160W Number of channels: Two-channel Stereo Efficiency: 85% Applicable speaker impedance: 4/6/8ohm(8ohm is the best) PCB board size: 108 x 78mm / 4.25 x 3.1" Weight: 172g(approx.)
Package includes:

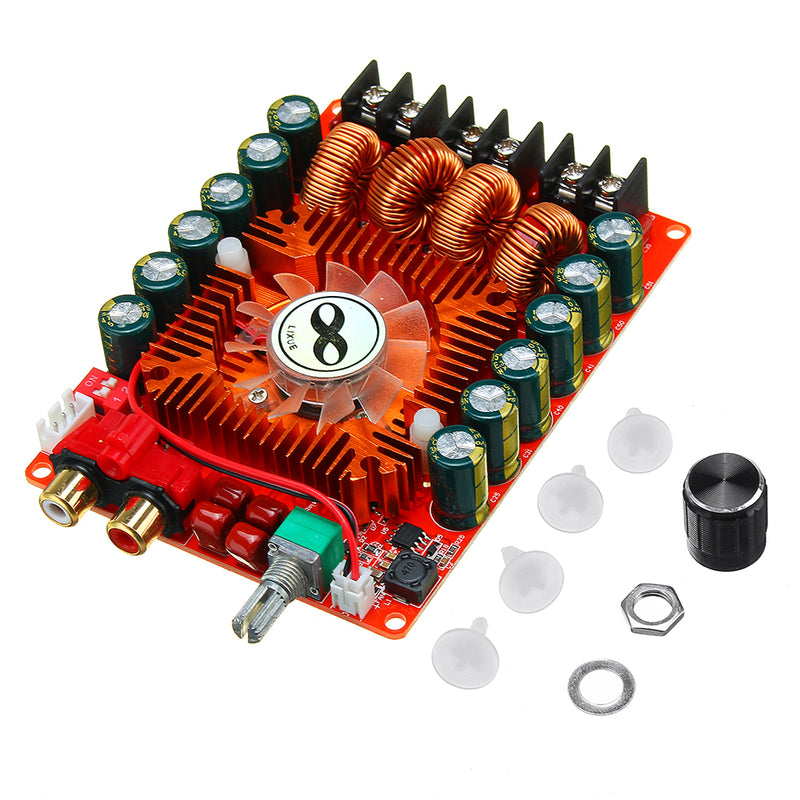

1 x Digital Amplifier Board
