More document click to download: TEA5767Functions:
- FM 70 to 108MHz
- Automatic search tuning function
- Fully digital processing, include audio output
- I 2 C-bus, only requires a minimum
- Low power , Mini size and low-cost
- High sensitivity , Low noise
- Integrated LDO regulator
- Bass boost
- Supply Voltage DC2.8-5V
Applications:
1.MP3, MP4 players
2.USB FM radio
3.Portable radios
4.Digital sound
5.GPS,PDAs
6.Consumer electronics
PCB Layout Note:
* Please advert copper & trace of ANT part shall be short and wide ASAP .
* Keep ANT part far away from noise source.
* Keep POWER part(VCC,GND) copper & trace shall be
wide and short ASAP ,and far away from noise source. FM GND shall grounding clear GND.
Package Included:

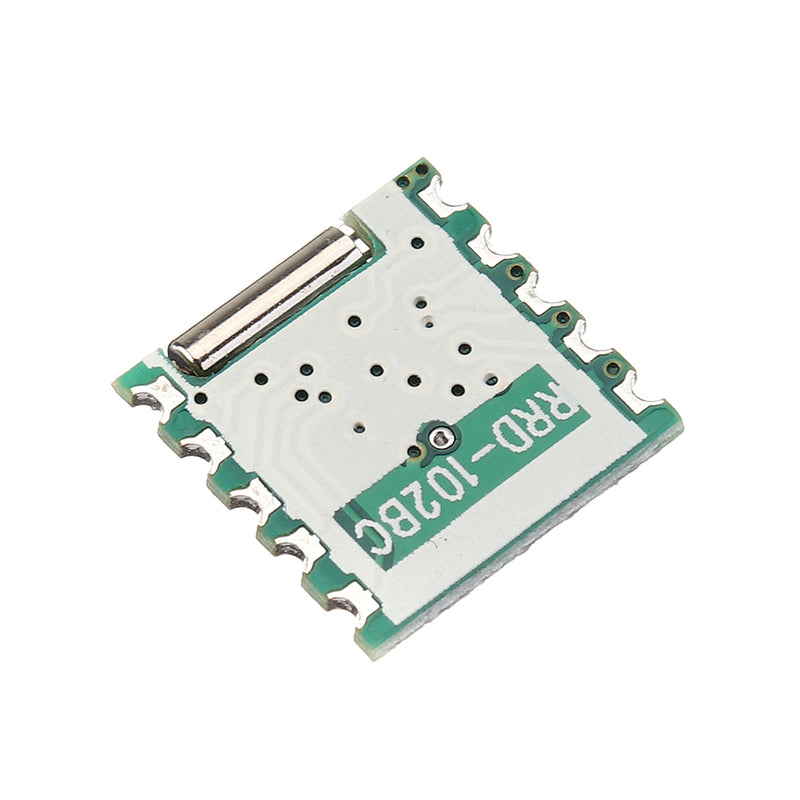

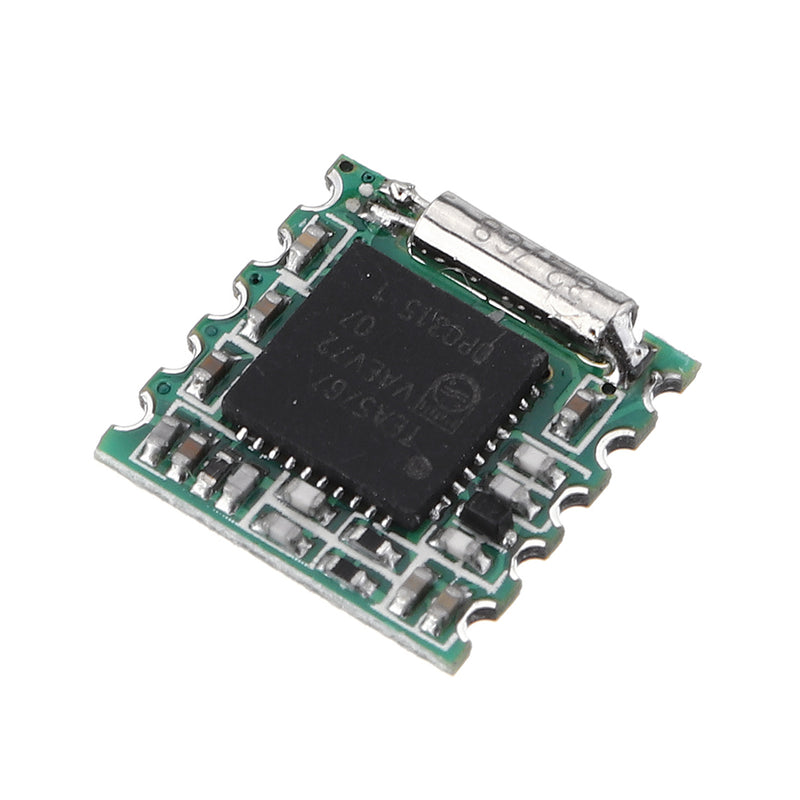

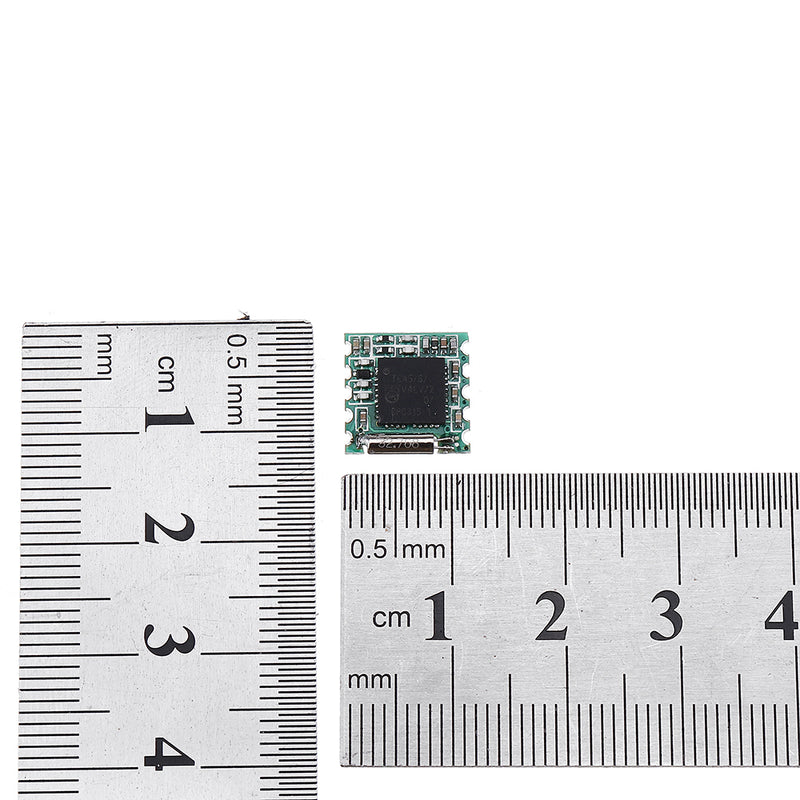

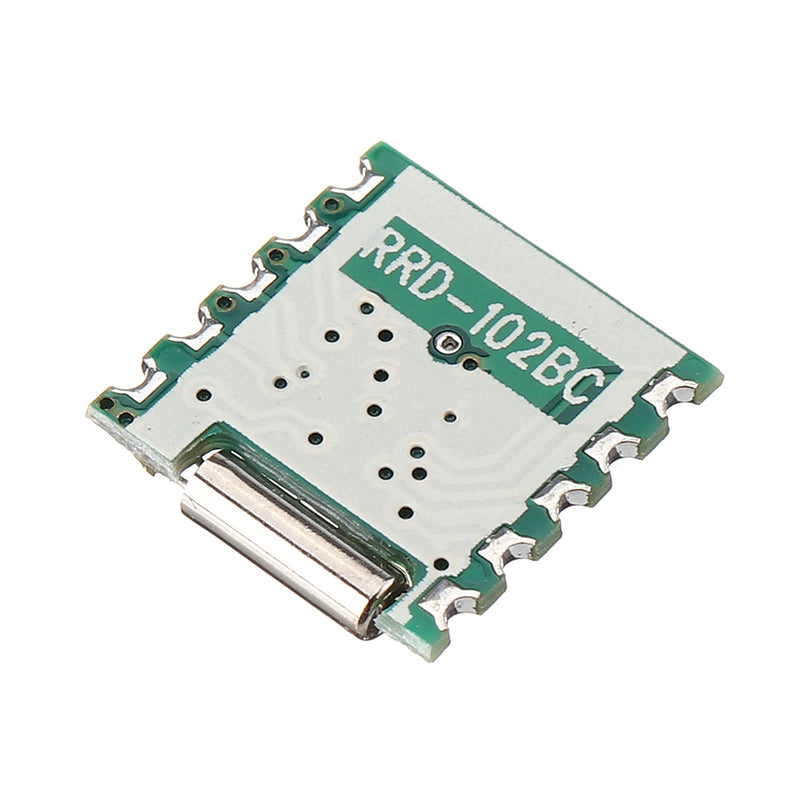

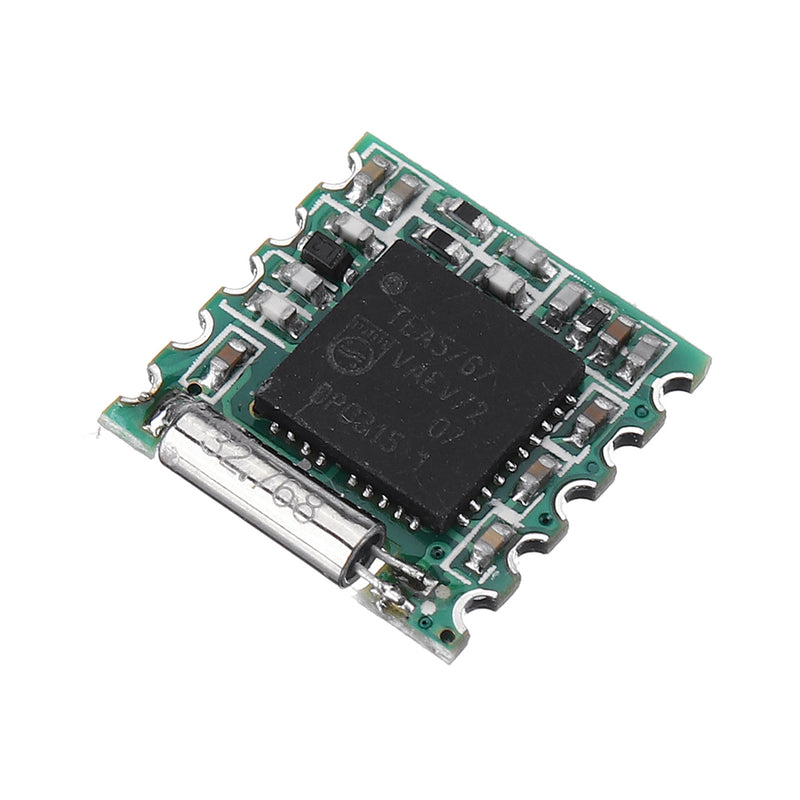

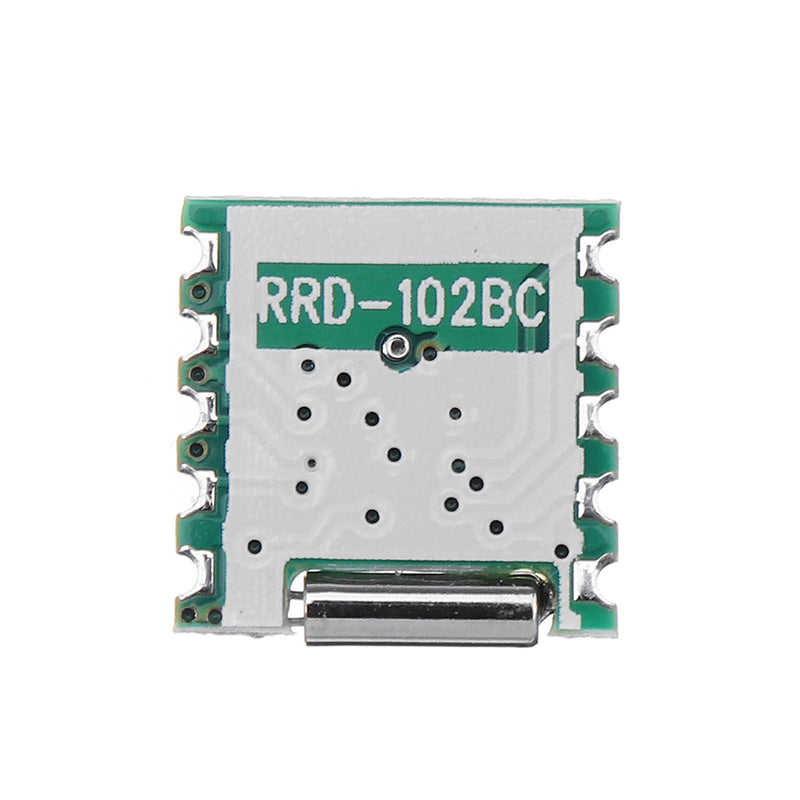

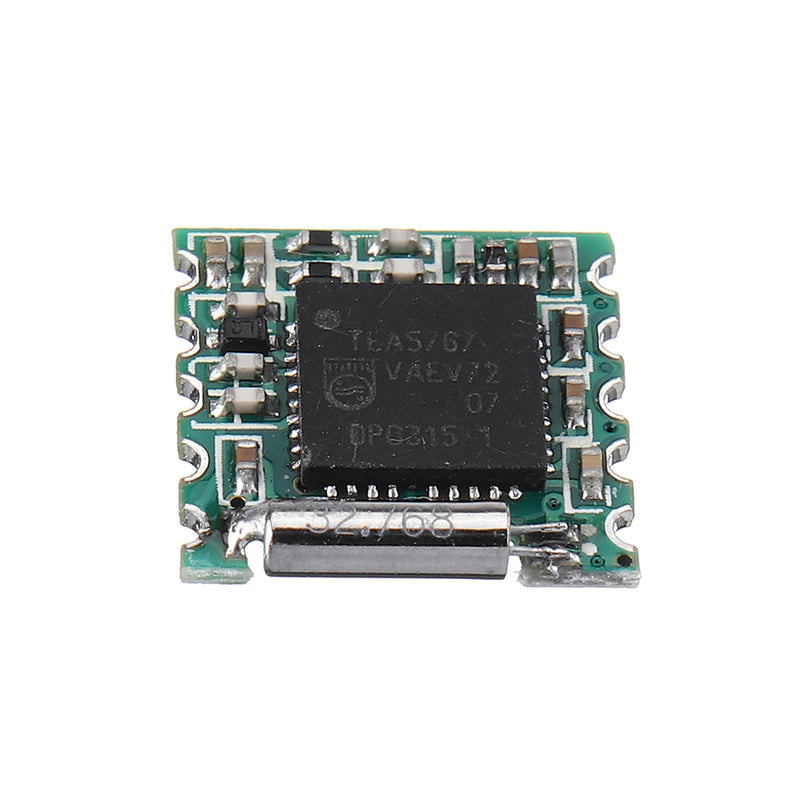

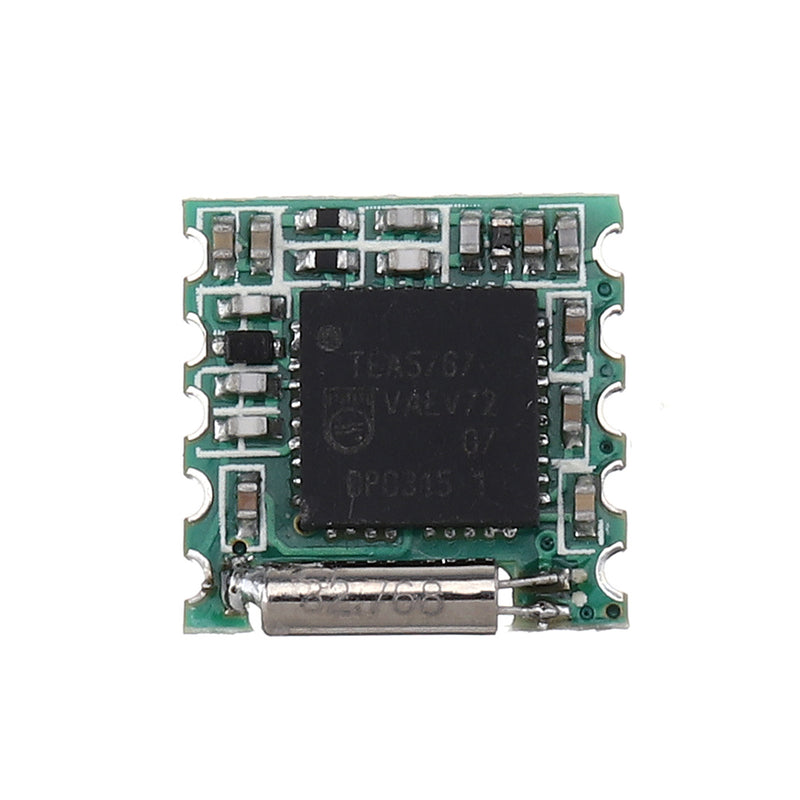

1 x TEA5767 FM Stereo Radio Module
