Item Name: H55 Motherboard+Intel Core i5-760 CPU+2xDDR3 4G Memory for LGA1156 Boards Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
H55 Motherboard+Intel Core i5-760 CPU+2xDDR3 4G Memory for LGA1156 Board Kit Desktop Computer Gaming USB 2.0 VGA HDMI-Compatible Accessory
Feature:
Support for Intel Core i 7/i 5/i 3 and for Celeron G 1156 series processors (this package is matched with i5-760 CPU).
Support 4 SATA interfaces and 8 USB interfaces.
Support high-speed DDR3 dual-channel memory slot: 1066/1333/1600/MHZ is supported, and the maximum capacity is 16G (this package is matched with 2x 4G = 8GB DDR3 1333MHZ memory).
Support PCIE expansion slot *2.
RJ45 Gigabit NIC interface.
4-layer PCB backplane with 5+1 phase power supply.
Support 5.1-channel ALC chip.
Support VGA and HDMI-compatible dual display interfaces.
Support a serial port.
All-board all-solid capacitor is designed for power supply. Compared with ordinary capacitors, the quality is more stable and lasting.
Specification:
Processor: i5-760 CPU, and the motherboard supports for Intel i3/i5/i7 and for Celeron G 1156-pin series processors.
South Bridge: Series 3420
Memory: 2 x 4G = 8GB DDR3 1333MHZ memory.
Technology: supports dual-channel memory slot DDR3 1066/1333/1600MHZ.
Maximum capacity: 16GB.
Memory slot: 2*240PIN DDR3.

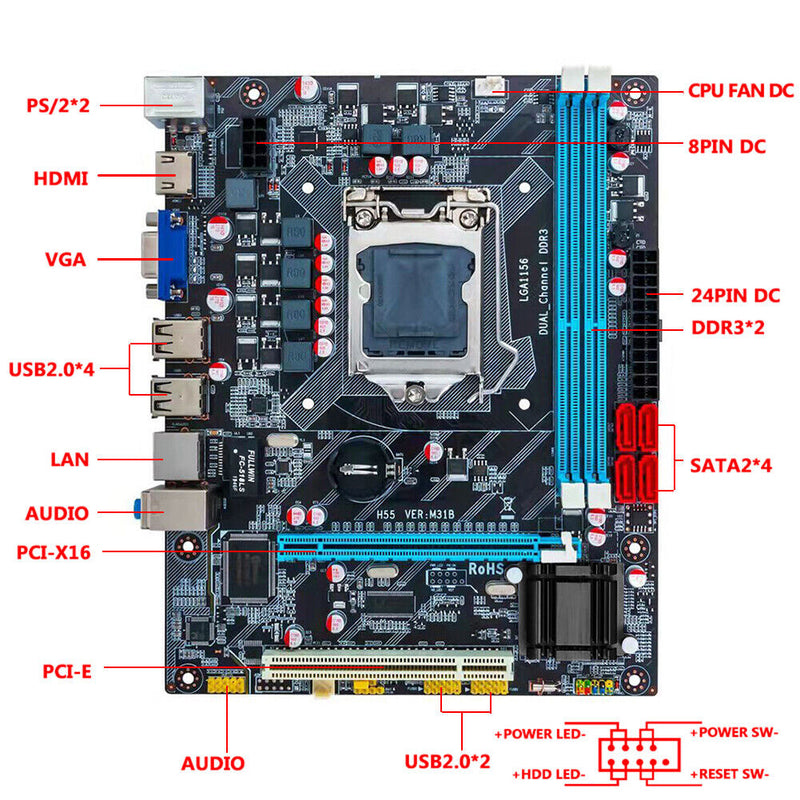

Post I/O:
PS/2 interface: 1 (PS/2 mouse, PS/2 keyboard).
Display interface: 1 VGA, 1 HDMI-compatible.
Ethernet: 1 100m network card, RTL8106E network card chip.
USB port: 4 USB 2.0.
Audio: 1 (Mic-in, Line-out, Line-in).
Internal connectors:
USB 2.0: 4 (one F USB can be transferred to two USB 2.0 interfaces)
Pcie: 2 (1 PCIe x 16, 1 PCI)
ATX PWR interface: 1 standard 1x24PIN power socket, 1 standard lx8PIN power socket fan: 2 (1 SF AN, 1 C FAN).Com: 1 2x5Pin pin.
Dimension: 167mmx211mm/6.6x8.3in
Product weight: 550g
Tips:
Please be aware that the colors and details of CPU and memory surfaces may change.Therefore, the
