Item Name: X79T LGA 2011 CPU USB3.0 M.2 SATA 4 DDR3 Desktop PC Computer Motherboard Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

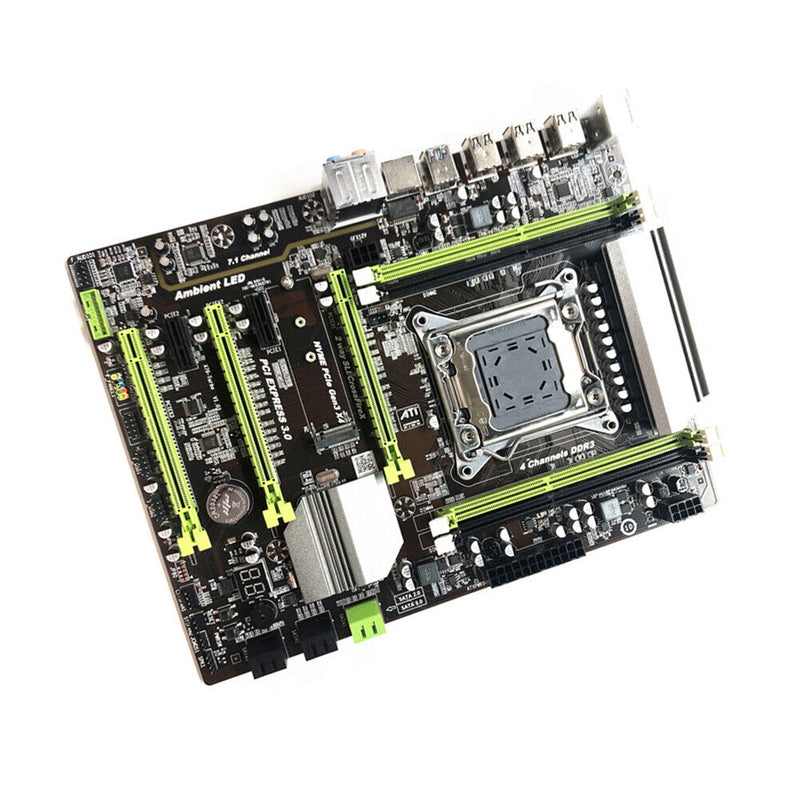

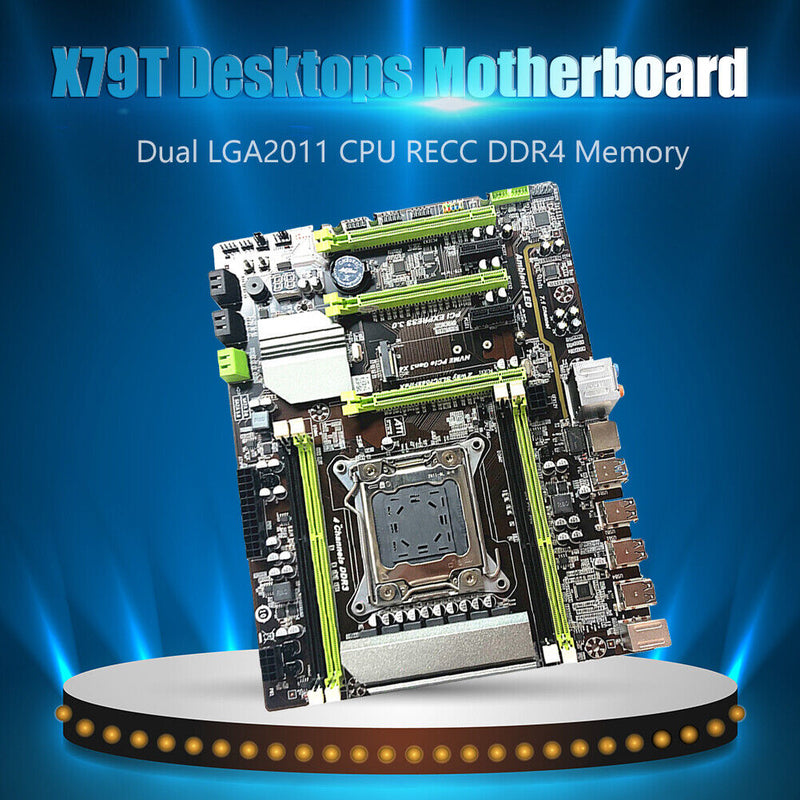

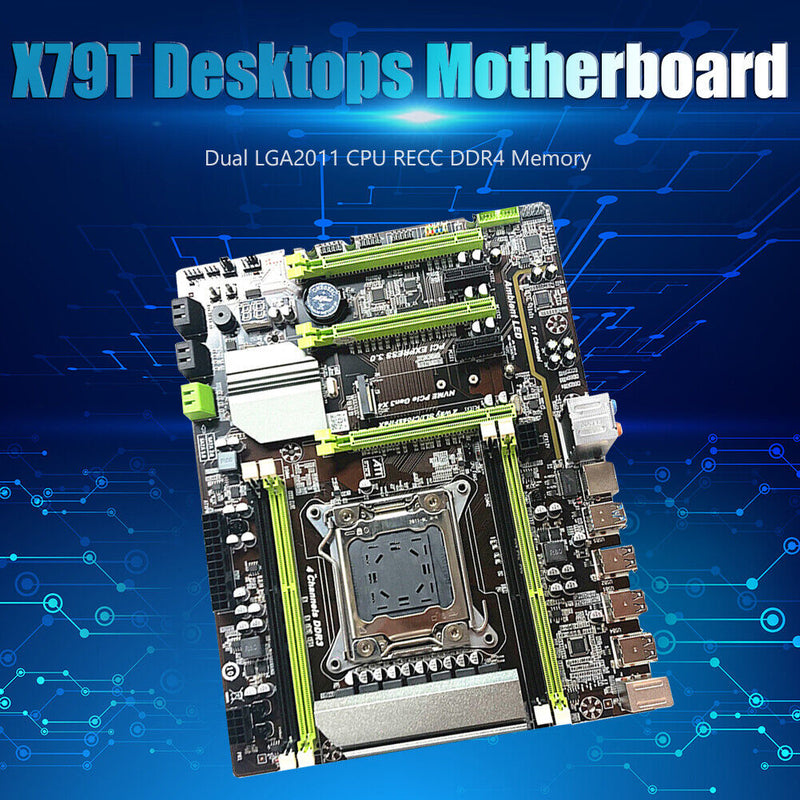

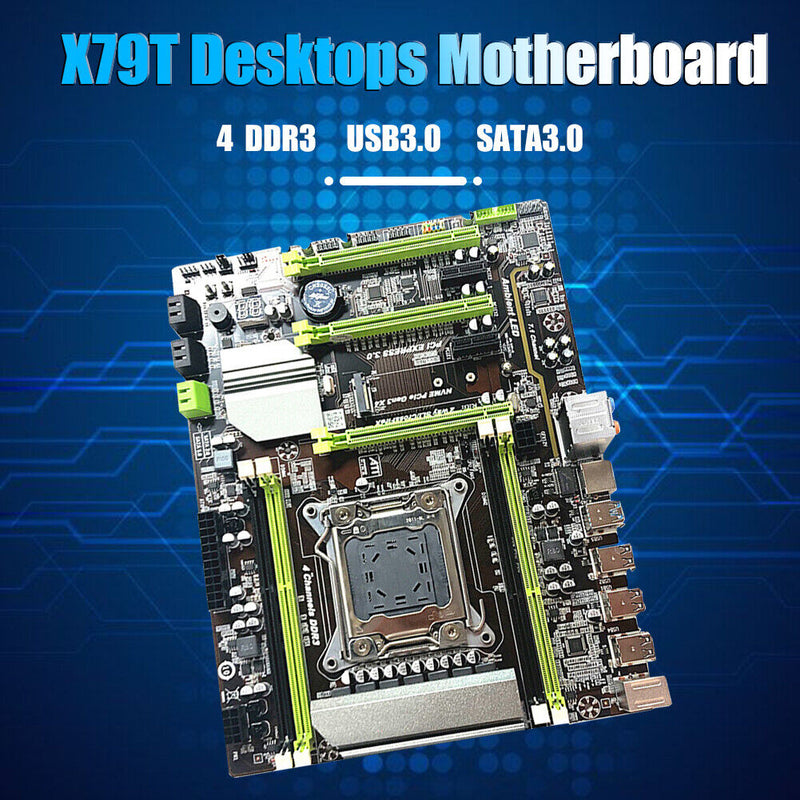

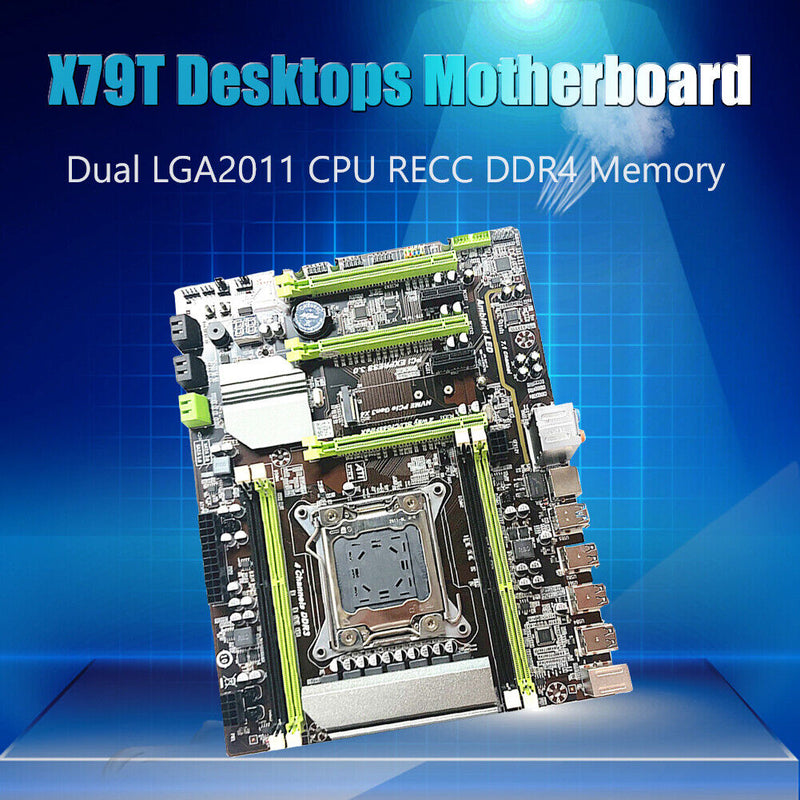

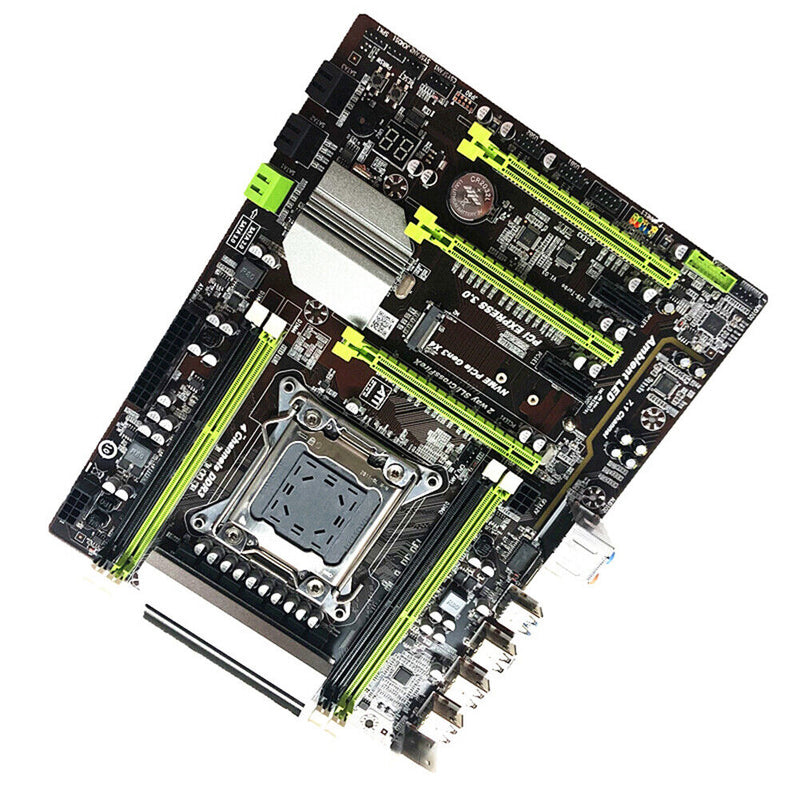

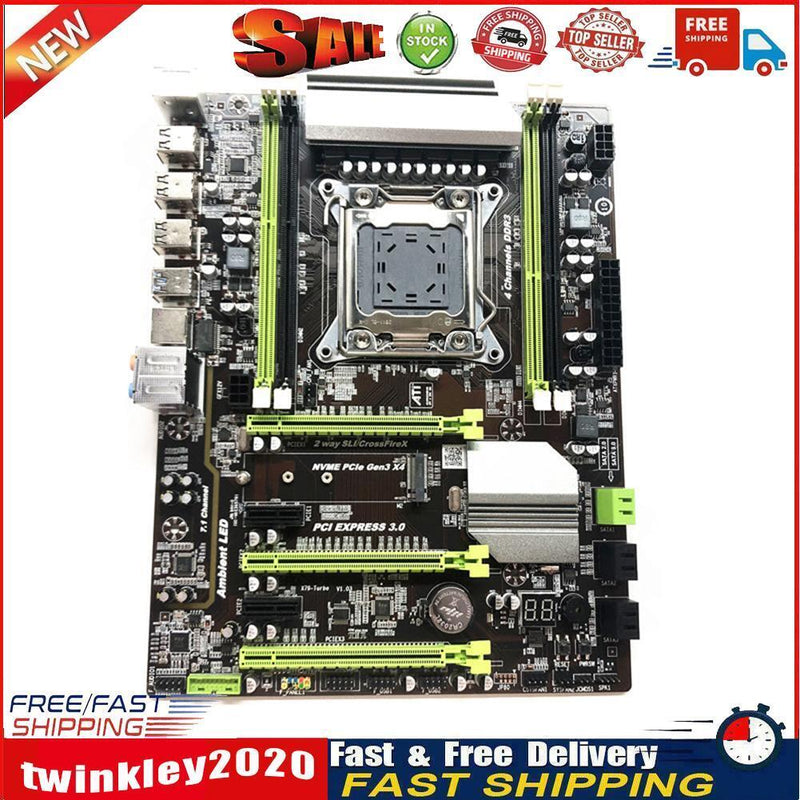

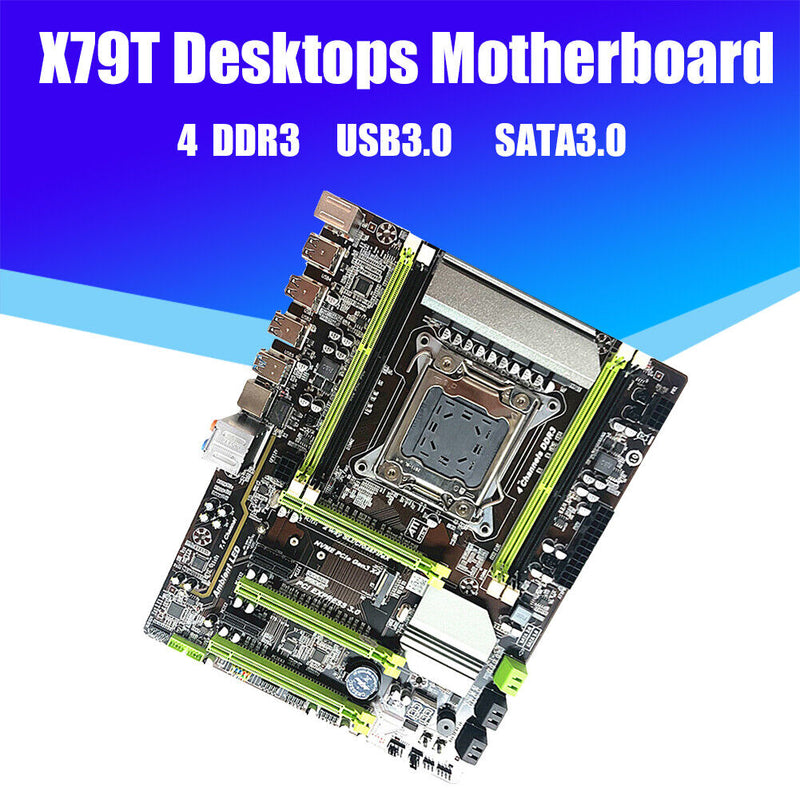

X79T LGA 2011 CPU Motherboard USB3.0 M.2 SATA 4 DDR3 Mainboard for Desktop PC Computer
Feature:
The new X79T-Q67/B75 2011 four-channel luxury large board, 7+1 all-solid-state CPU power supply is stable and powerful, with USB3.0, SATA3.0.
Support server memory and ordinary memory, E5-2640, E5-2650, E5-2660, E5-2670, E5-2680 and other V1, V2 CPU.
Front and rear, dual USB 3.0 interface design, high-speed connection to RTL8111F Gigabit network card, dual indicator design, stable and fast.
Four-channel memory supports general-purpose memory and ECC server memory, but cannot be mixed at the same time.
Modular large-scale heat dissipation power supply design, low temperature and high efficiency, multi-phase sharing, more stable, 8-phase power supply motherboard.
Specification:
Motherboard name: X79-Tuebo V1.0
Motherboard: sound card chip: ALC662
Network card chip: for RTL8111F/1000 Gigabit
CPU: for Core i7/Xeon Server 2011
Memory: Support 4 DDR3 servers/common memory 1066/1333/1600
Hard disk: Provide 4 SATA2.0 interfaces, 2 SATA3.0 interfaces, 1 M.2 mode interface
Other interface sockets: 1 PS/2 interface 1 set *2 USB3.0 interface or 3 sets *2 USB2.0 interface 3 PCIEX interfaces 2 PCIE interfaces 2 three-in-one audio interfaces 1 One ATXPWR interface one GFX12V interface one LAN interface
Extension pins: 1 F_AUDIO pin 1 JUSBA1 pin 1 J_COM pin 2 F_USB pins 1 J_P80 pin 1 J_CMOS pin 1 SPK pin
Motherboard Size: 220 X 280mm/8.66 X 11.02"
Weight: About 920g
Note:
